Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
with respect to the correctness of information in this document. Copyright by AUDI AG.
Close using Hose Clip Pliers - VAG1275A- .
32 - Bolt
9 Nm
33 - Bracket
With washer and rivet.
For hydraulic oil cooler on condenser.
Clip lines from hydraulic oil cooler in bracket.
34 - Bracket
With washer and rivet.
For hydraulic oil cooler on condenser.
Insert hydraulic oil cooler in bracket.
35 - Hydraulic Oil Cooler
Removing and Installing, refer to ⇒ “10 Hydraulic Fluid Cooler, Removing and Installing”, page 393 .
36 - Wiring Bracket
37 - O-Ring
Always replace.

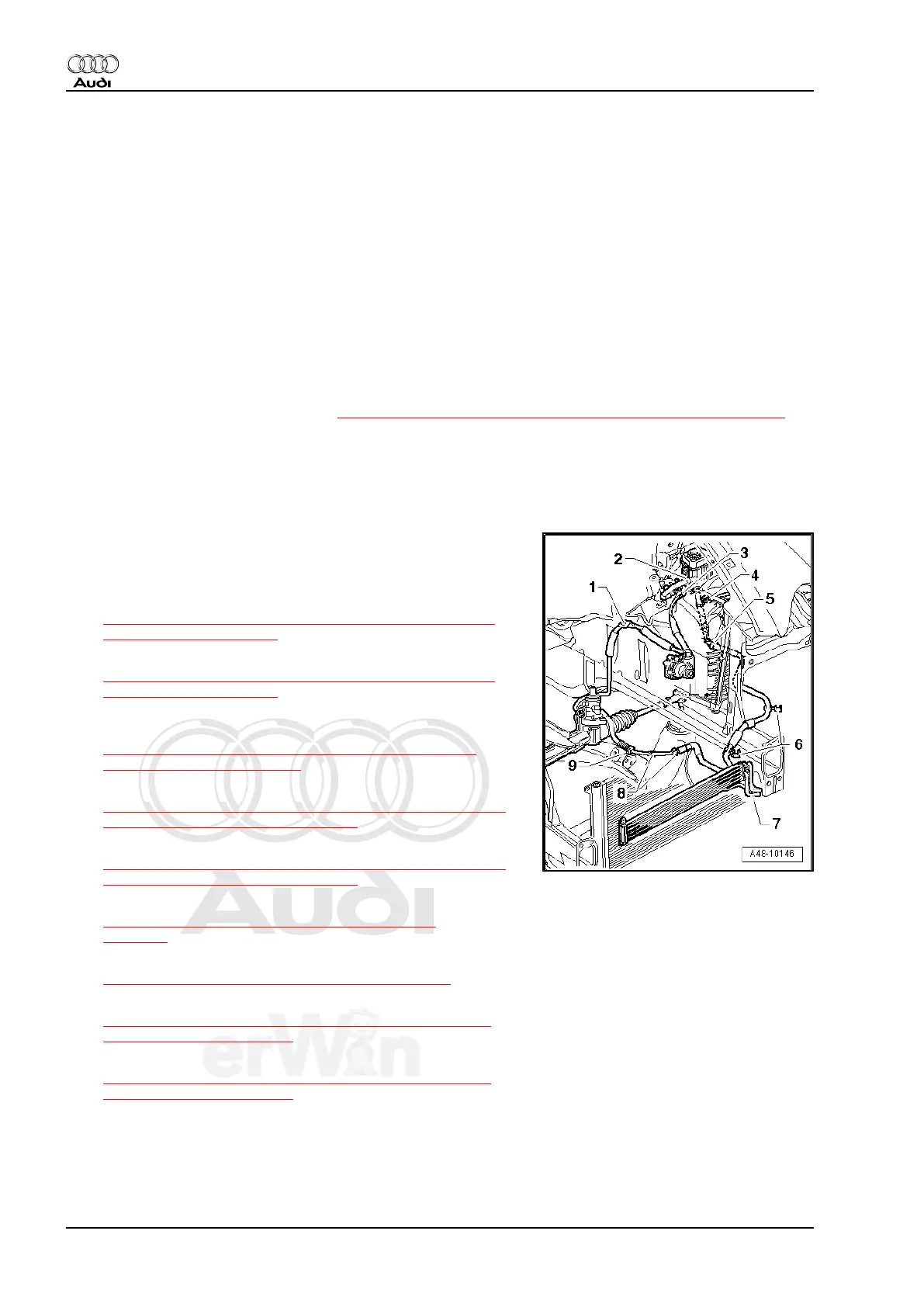

5.2 Lines and Hoses Overview
Line and Hose Securing Elements, Assembly Overview
1 - Pressure line bracket to engine, refer to
⇒ Fig. ““Pressure Line Bracket to Engine, Return Hose to
Line Bracket”“ , page 317 .
2 - Return hose to line bracket, refer to
⇒ Fig. ““Pressure Line Bracket to Engine, Return Hose to
Line Bracket”“ , page 317 .
3 - Location of hoses on reservoir and reservoir bracket to
body, refer to
⇒ Fig. ““Location of Hoses on Reservoir and Reservoir
Bracket to Body”“ , page 317 .
4 - Return hose clip to coolant hose, refer to
Fig. ““Return Line Clip to Coolant Hose; Return Hose Line
Bracket to Body Bracket”“ , page 317 .
5 - Return hose line bracket to body bracket, refer to
Fig. ““Return Line Clip to Coolant Hose; Return Hose Line
Bracket to Body Bracket”“ , page 317 .
6 - Return hose clips to refrigerant line, refer to
⇒ Fig. ““Return Hose Clips to Refrigerant Line”“ ,
page 318 .
7 - Hoses to hydraulic oil cooler, refer to
⇒ Fig. ““Hoses to Hydraulic Oil Cooler”“ , page 318 .
8 - Return line bracket to subframe, refer to
⇒ Fig. ““Return Line Bracket to Subframe, Return Line to
Coolant Hoses”“ , page 318 .
9 - Return line to coolant hoses, refer to
⇒ Fig. ““Return Line Bracket to Subframe, Return Line to
Coolant Hoses”“ , page 318 .
Audi Q7 2007 ➤
Suspension, Wheels, Steering - Edition 01.2014
316 Rep. Gr.48 - Steering
