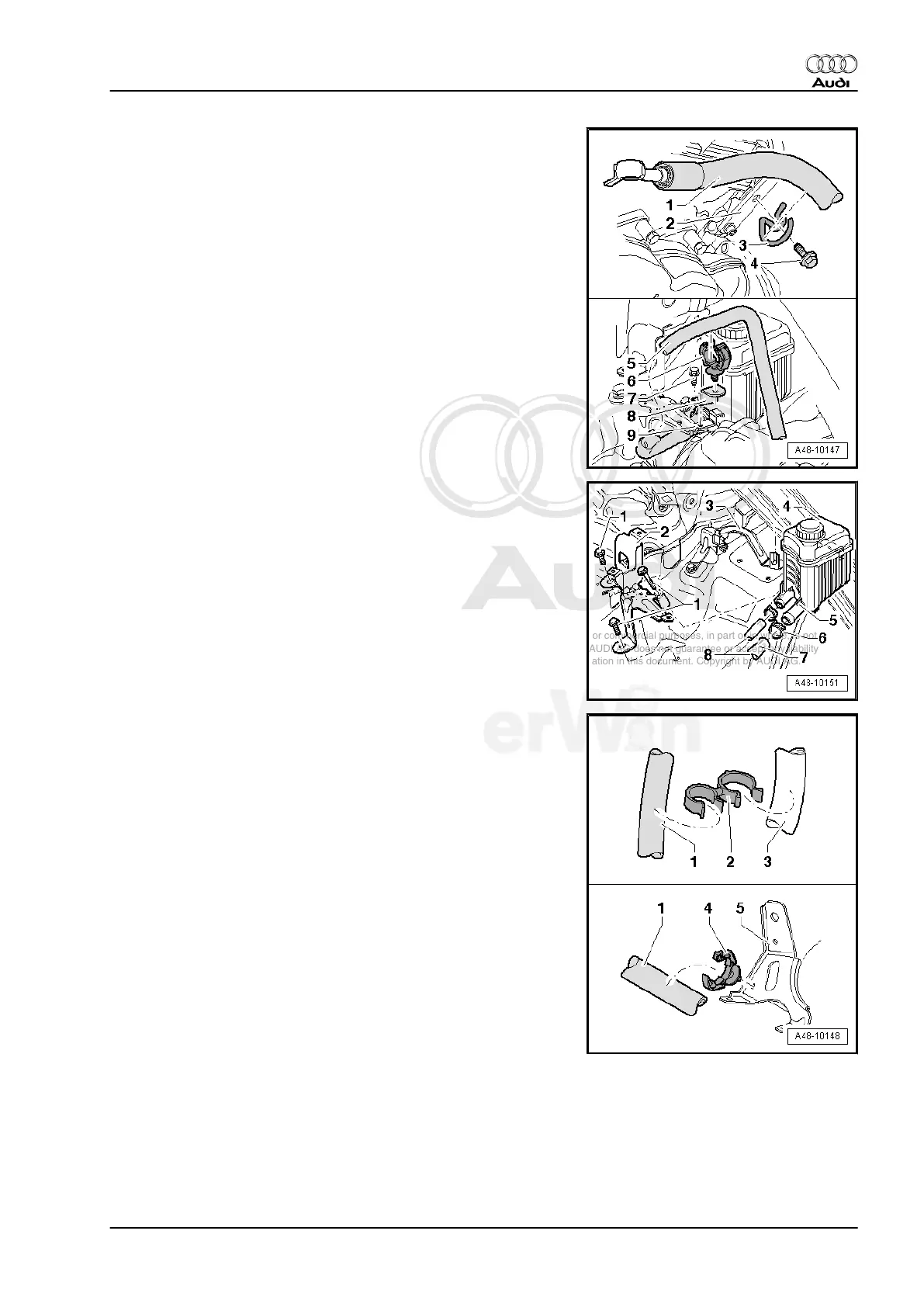

Pressure Line Bracket to Engine, Return Hose to Line Bracket
– Use the bracket -3- to attach the pressure line -1- to the trans‐
port eye -2- or cylinder head. Tighten bolt -4- to 9 Nm (M6) or
22 Nm (M8).
– Secure return hose -5- with line bracket -6- in bracket -8-. Se‐
cure the bracket -8- on the bracket -9- and tighten the bolt
-7- to 9 Nm.
Location of Hoses on Reservoir and Reservoir Bracket to Body
– Position reservoir -4- on bracket -3- when installing.
– Tighten the bracket -2- with the bolts -1- to 8 Nm.
– Markings -7- on suction and return hose -8- must align with
webs -5-. Secure suction and return line -8- with spring-type
hose clamps -6-.
Return Line Clip to Coolant Hose; Return Hose Line Bracket to
Body Bracket
– Secure return hose -1- with clip -2- to coolant hose -3-.
– Secure return hose -1- with wiring bracket -4- to body bracket
-5-.
Audi Q7 2007 ➤
Suspension, Wheels, Steering - Edition 01.2014
5. Power Steering Pump, Hydraulic Pipes and Reservoir 317
