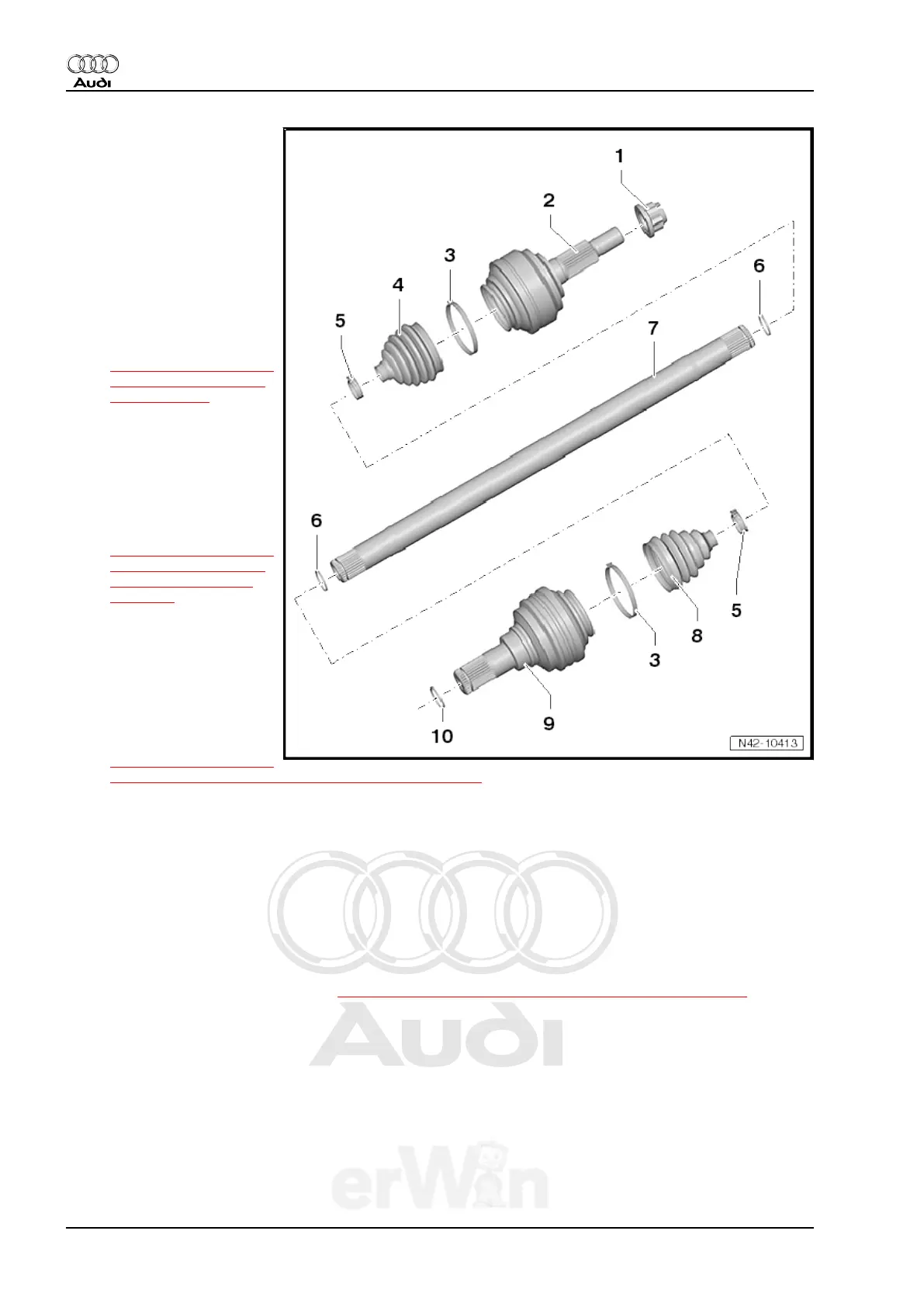

1 - Nut
❑ 500 Nm
❑ Always replace if re‐
moved.
❑ Before assembling, coat
contact surface with As‐
sembly Paste .
2 - Outer CV Joint
❑ Replace only as com‐
plete unit.
❑ Removing and Instal‐
ling, refer to
⇒ “7.9 Drive Axle, Inser‐
ted Inner Joint, Servic‐
ing”, page 194 .
❑ Before assembling, coat
splines with Assembly
Paste .
3 - Clamp
❑ Always replace if re‐
moved.
❑ Tensioning, refer to
⇒ “7.10 Small and Large
Clamps, Tightening on
Inner or Outer Joint”,
page 195 .
4 - CV Boot
❑ Check for tears and
scuffing.
5 - Clamp
❑ Always replace if re‐
moved.
❑ Tensioning, refer to
⇒ “7.10 Small and Large
Clamps, Tightening on Inner or Outer Joint”, page 195 .
6 - Locking Ring
❑ Always replace if removed.
❑ Insert in shaft groove.
7 - Drive Axle
8 - CV Boot
❑ Check for tears and scuffing.
9 - Inner CV Joint
❑ Replace only as complete unit.
❑ Removing and Installing, refer to ⇒ “7.9 Drive Axle, Inserted Inner Joint, Servicing”, page 194 .
10 - Locking Ring
❑ Always replace if removed.
❑ Insert in shaft groove.
7.9 Drive Axle, Inserted Inner Joint, Servic‐
ing
Special tools and workshop equipment required
♦ Torque Wrench 1331 5-50Nm - VAG1331-
Audi Q7 2007 ➤
Suspension, Wheels, Steering - Edition 01.2014
194 Rep. Gr.42 - Rear Suspension
