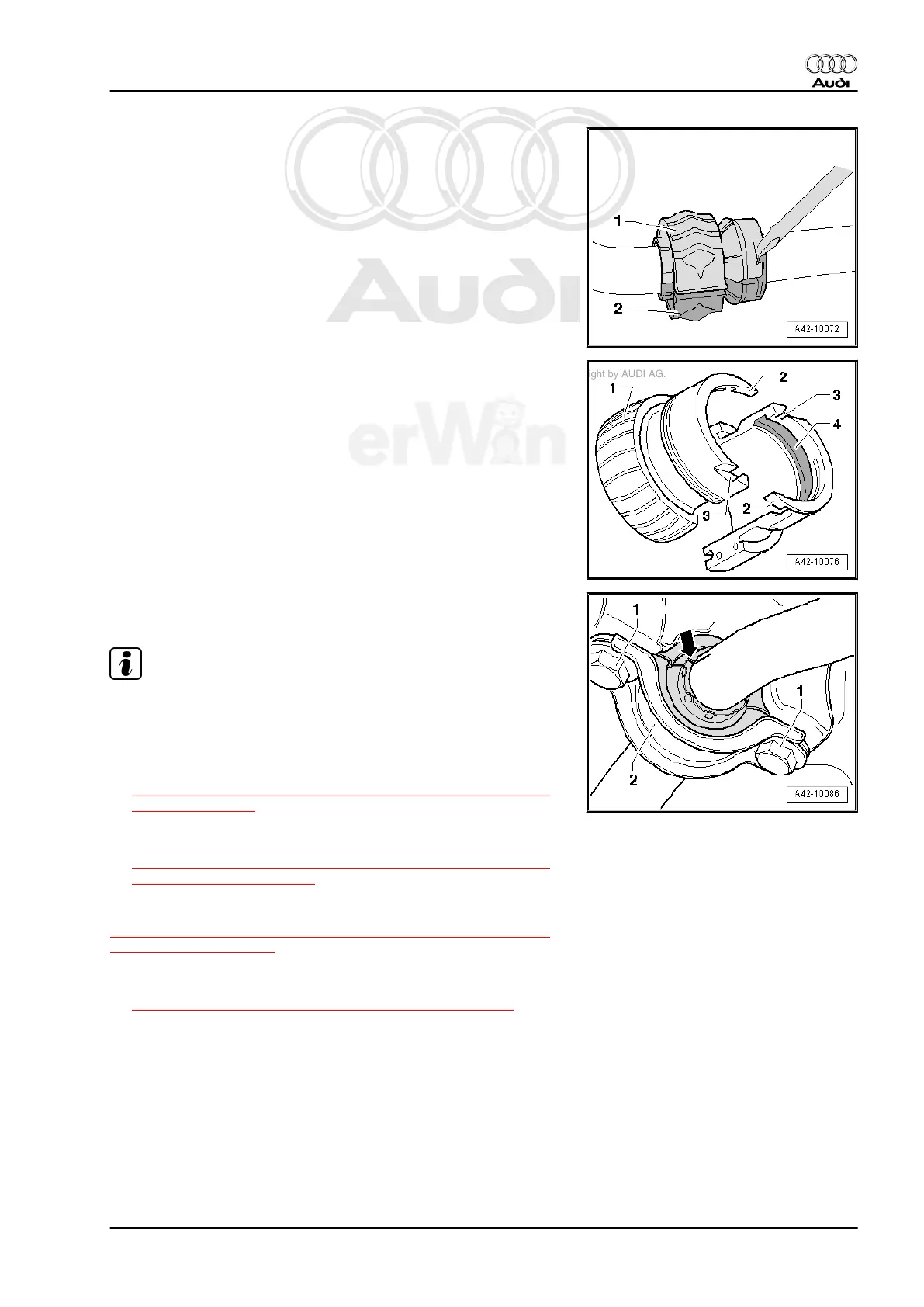

– Release stabilizer bar mount -1- and -2- with a screwdriver.
Installing
Install in reverse order of removal. Note the following:
– Install halves of stabilizer bar mount on stabilizer bar. Observe
following when doing so:
♦ larger outer diameter -1- points toward outside
♦ Half of stabilizer bar mount with groove -4- is placed on octa‐
gon mount on stabilizer bar
♦ locking tabs -2- engage completely in recesses -3-
– Follow markings applied to stabilizer bar during removal
-arrow-.
Note
♦
Bonded rubber bushings can only be turned to a limited extent.
Only tighten suspension screws when vehicle is in curb weight
or control position.
♦
Wheel bearing, lifting to curb weight position on vehicles with
coil springs, refer to
⇒ “1.4 Wheel Bearing in Curb Weight, Lifting Vehicles with Coil
Spring”, page 118 .
♦
For vehicles with air spring suspension, lift wheel suspension
in control position, refer to
⇒ “1.5 Wheel Bearing in Control Position, Lifting Vehicles with
Air Suspension”, page 120 .
Tightening specifications, refer to
⇒ “2.1 Subframe, Stabilizer Bar, Coupling Rod and Stone Deflec‐
tor Overview”, page 124 .
– On vehicles with air suspension, position vehicle on wheels,
refer to
⇒ “4 Positioning Vehicle on Hoist and Wheels”, page 10 .
– Tighten the wheels, refer to ⇒ Rep. Gr. 44 .
– On vehicles with automatic headlamp range control system,
perform a basic setting on the headlamps, refer to ⇒ Rep. Gr.
94 .
2.6 Coupling Rod, Removing and Installing
Special tools and workshop equipment required
♦ Torque Wrench 1332 40-200Nm - VAG1332-
Audi Q7 2007 ➤
Suspension, Wheels, Steering - Edition 01.2014
2. Subframe, Stabilizer Bar, Coupling Rod and Stone Deflector 135
