♦ Wood block (hardwood) 30 x 50 x 1300 mm
Removing
– With vehicles with air suspension, place vehicle on hoist, refer
to ⇒ “4 Positioning Vehicle on Hoist and Wheels”, page 10 .
– Remove wheels.

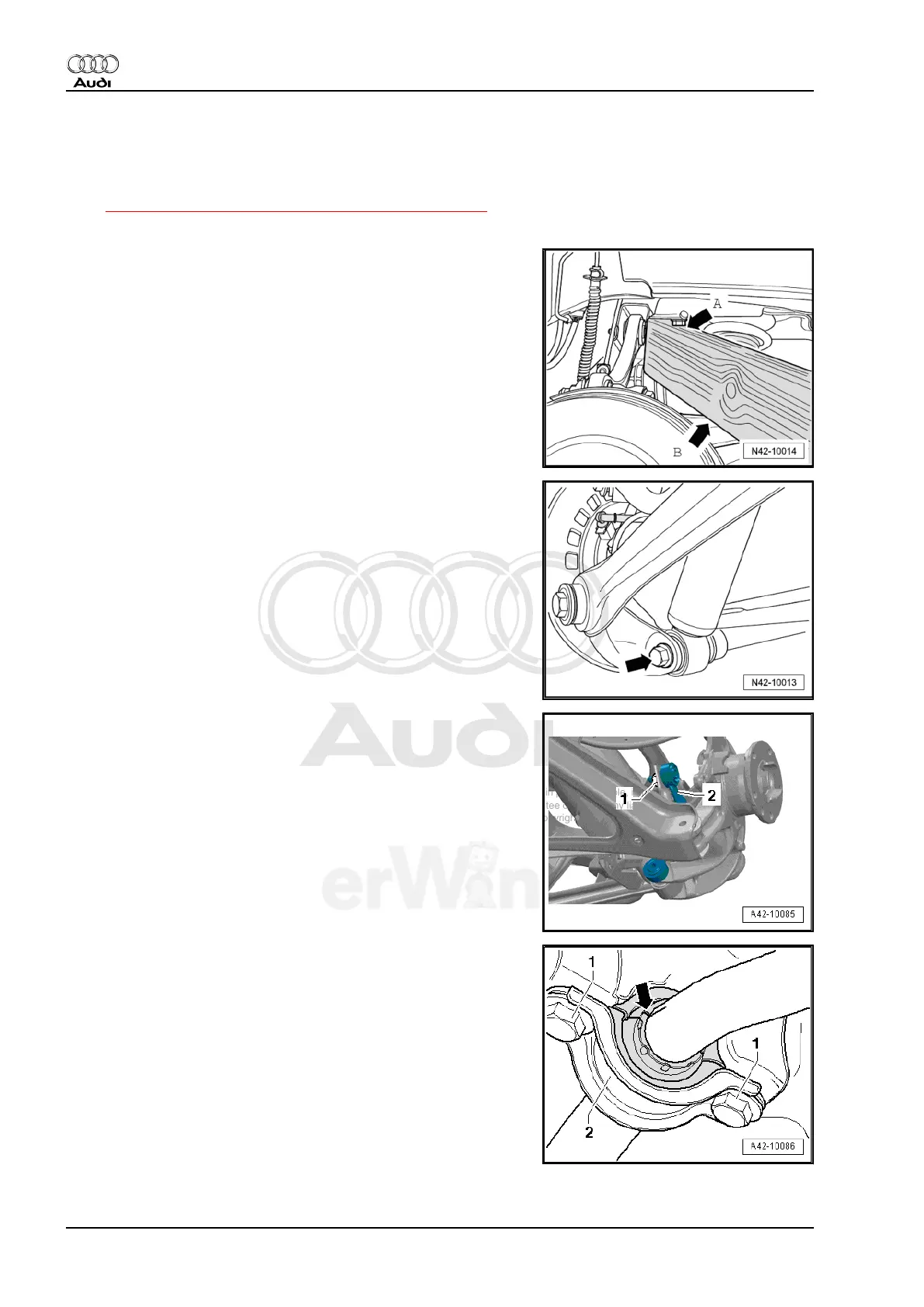

– Insert wood block between underbody -Arrow A- and upper
rear control arm -Arrow B-.
Wood block is needed to press wheel bearing housing down.
– Remove nut on left and right screw -arrow-.
– Push the wheel bearing housing downward using a block of
wood until it is possible to remove the bolt -arrow-.
– Remove nut -1- from left and right connecting link -2-.
– Identify location of stabilizer bar mount on left and right stabil‐
izer bar -arrow-.
– Remove screws -1- and remove left and right clamps -2-.
Audi Q7 2007 ➤
Suspension, Wheels, Steering - Edition 01.2014
134 Rep. Gr.42 - Rear Suspension
