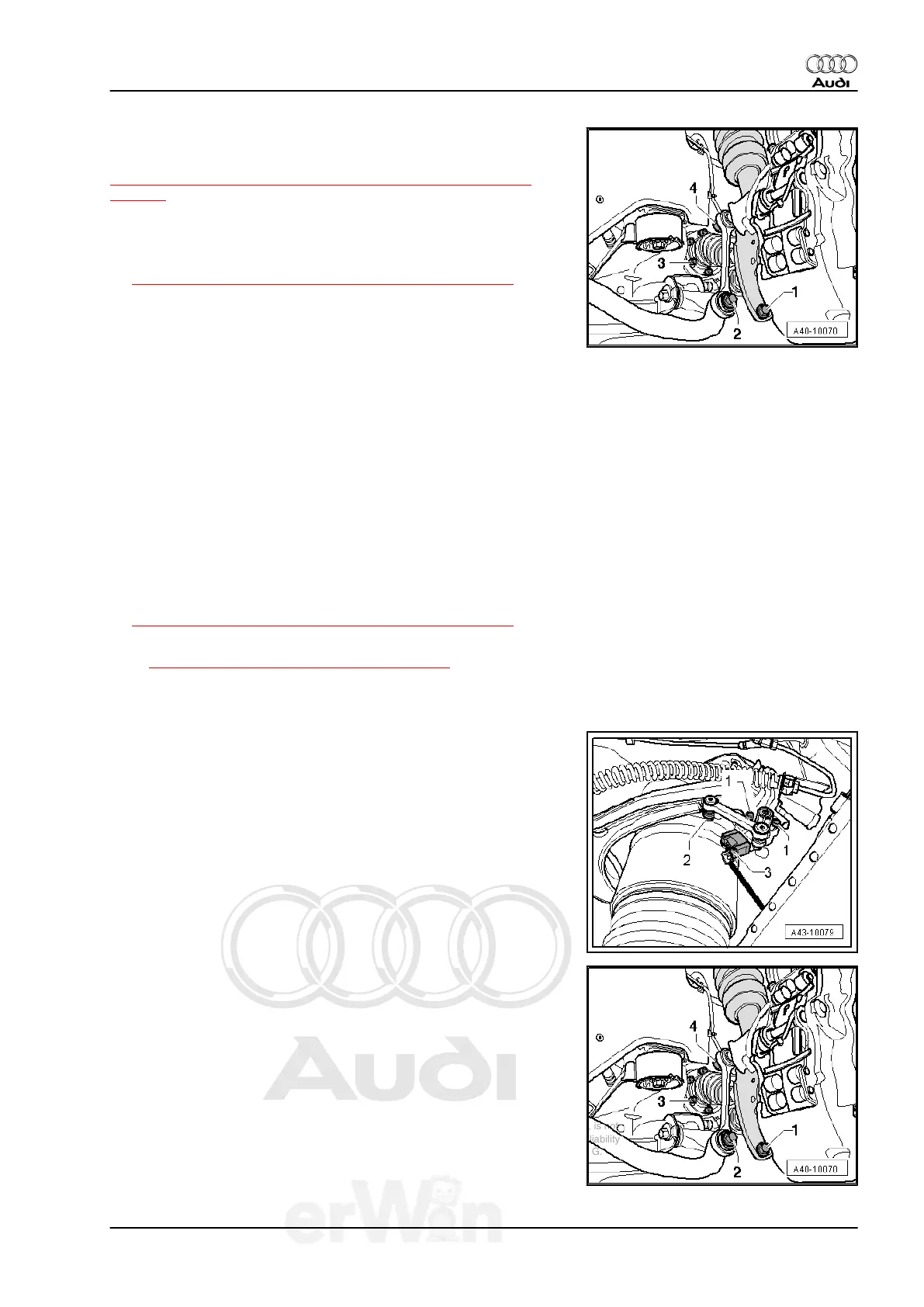

– Install left and right connectors -2-.
Tightening specifications, refer to
⇒ “2.1 Subframe, Stabilizer Bar and Coupling Rod Overview”,
page 17 .
– Install noise insulation. ⇒ Rep. Gr. 50
– On vehicles with air suspension, position vehicle on wheels,
refer to
⇒ “4 Positioning Vehicle on Hoist and Wheels”, page 10 .
2.6 Coupling Rod, Removing and Installing
Special tools and workshop equipment required
♦ Torque Wrench 1332 40-200Nm - VAG1332-
♦ Engine/Gearbox Jack - VAG1383A-
♦ Bits for Bits for VAG1331/13 - 12mm - T10099- or Bits for Bits
for VAG1331/13 - 14mm - T10099/1-
♦ Engine/Gearbox Jack Adapter - Wheel Hub Support - T10149-
Removing
Affects Vehicles with Air Suspension
– Place vehicle on hoist, refer to
⇒ “4 Positioning Vehicle on Hoist and Wheels”, page 10 .
– Perform system vent using -Vehicle Diagnostic Tester- , refer
to ⇒ “3.9 System, Venting or Filling”, page 221 .
Affects all Vehicles
– Remove the wheel.
– In vehicles with level control system sensor, unscrew nut -2-.
– Remove the bolt -2-.
– Disconnect drive axle from rear final drive. Use Bits for Bits for
VAG1331/13 - 12mm - T10099- or Bits for Bits for
VAG1331/13 - 14mm - T10099/1- to loosen bolts -3-.
– Remove connector nut -4-.
Audi Q7 2007 ➤
Suspension, Wheels, Steering - Edition 01.2014
2. Subframe, Stabilizer Bar and Coupling Rod 43
