7.2 Lines and Hoses Assembly Overview,
Vehicles with V8 TDI Engine

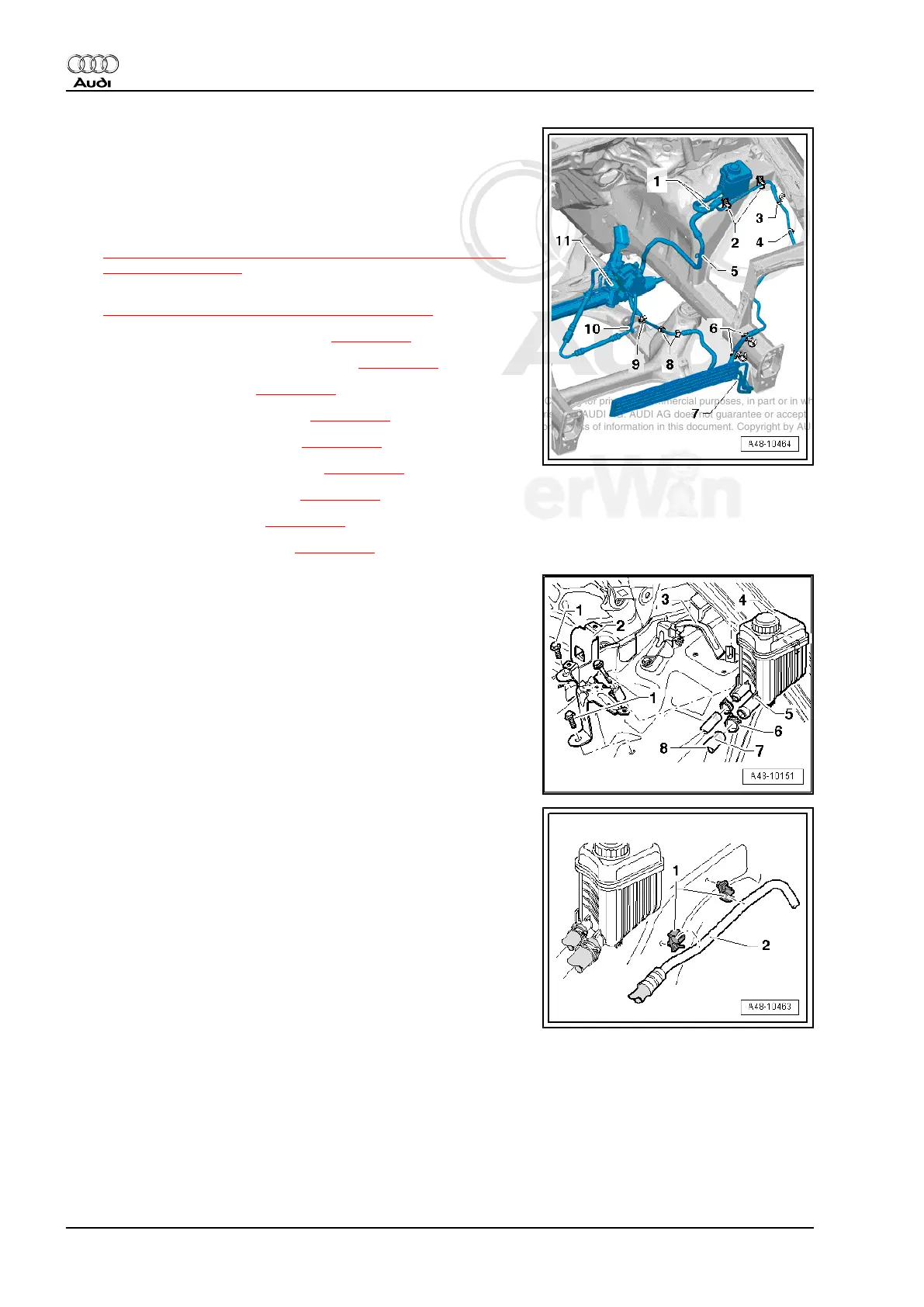

Line and hose securing elements, assembly overview
1 - Location of hoses on reservoir and reservoir bracket to
body, refer to
⇒ Fig. ““Location of hoses on reservoir and reservoir bracket
to body”“ , page 350
2 - Return line bracket to body
⇒ Fig. ““Return line bracket to body”“ , page 350
3 - Return line clip to refrigerant line ⇒ page 351
4 - Return line to refrigerant line bracket ⇒ page 351
5 - Intake hose to engine ⇒ page 351
6 - Return line clip to coolant line ⇒ page 351
7 - Hoses to hydraulic oil cooler ⇒ page 351
8 - Return line bracket to subframe ⇒ page 352
9 - Return line to coolant hoses ⇒ page 352
10 - Pressure line to oil pan ⇒ page 352
11 - Return line to steering gear ⇒ page 352
Location of hoses on reservoir and reservoir bracket to body
– Position reservoir -4- on bracket -3- when installing.
– Tighten the bracket -2- with the bolts -1- to 8 Nm.
– Markings -7- on suction and return hose -8- must align with
webs -5-. Secure suction hose and return line -8- with hose
clamps -6-.
Return line bracket to body
– Secure return line -2- with line brackets -1- to body.
