3 Lower Control Arm, Level Control
System Sensor, Upper Front and Up‐
per Rear Control Arms and Tie Rod
⇒ “3.1 Lower Control Arm, Level Control System Sensor, Upper
Front and Upper Rear Control Arms and Tie Rod Overview”, page
138
⇒ “3.2 Lower Control Arm, Removing and Installing”, page 140
⇒ “3.3 Vehicle Level Sensor, Removing and Installing”,
page 141
⇒ “3.4 Upper Front Control Arm, Removing and Installing”,
page 141
⇒ “3.5 Upper Rear Control Arm, Removing and Installing”,
page 142
⇒ “3.6 Tie Rod, Removing and Installing”, page 143
3.1 Lower Control Arm, Level Control System Sensor, Upper Front and Upper
Rear Control Arms and Tie Rod Overview

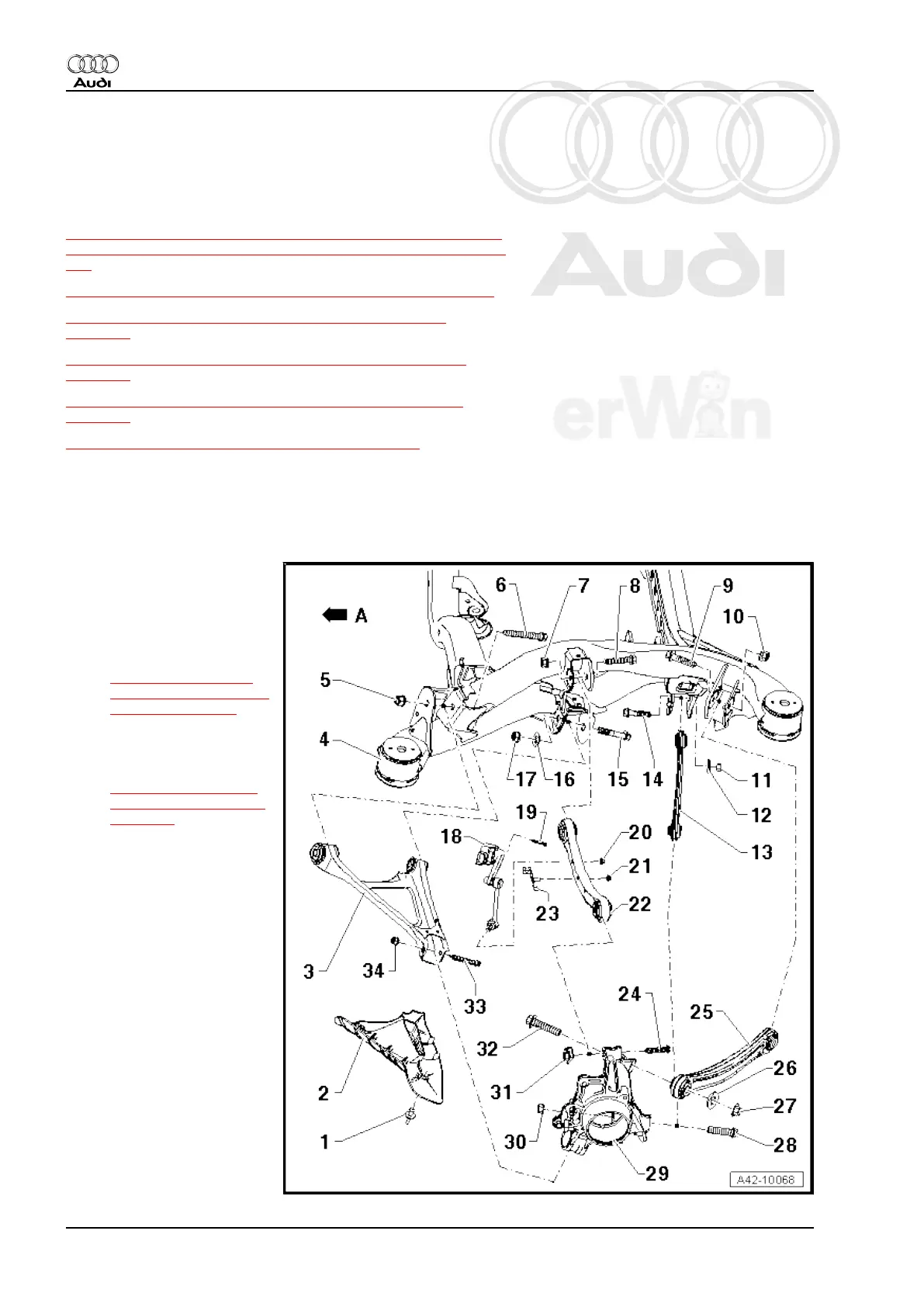

-Arrow A- points in direction of travel.
1 - Expanding Rivet
2 - Stone Chip Protection
3 - Lower Control Arm
Removing and Instal‐
ling, refer to
⇒ “3.2 Lower Control
Arm, Removing and In‐
stalling”, page 140 .
4 - Subframe
Removing and Instal‐
ling, refer to
⇒ “2.2 Subframe, Re‐
moving and Installing”,
page 125 .
5 - Self-Locking Nut
Always replace if re‐
moved.
6 - Bolt
150 Nm + 90°
Always replace if re‐
moved.
7 - Self-Locking Nut
90 Nm + 90°
Always replace if re‐
moved.
8 - Bolt
Always replace if re‐
moved.
9 - Bolt
Always replace if re‐
moved.
Audi Q7 2007 ➤
Suspension, Wheels, Steering - Edition 01.2014
138 Rep. Gr.42 - Rear Suspension
