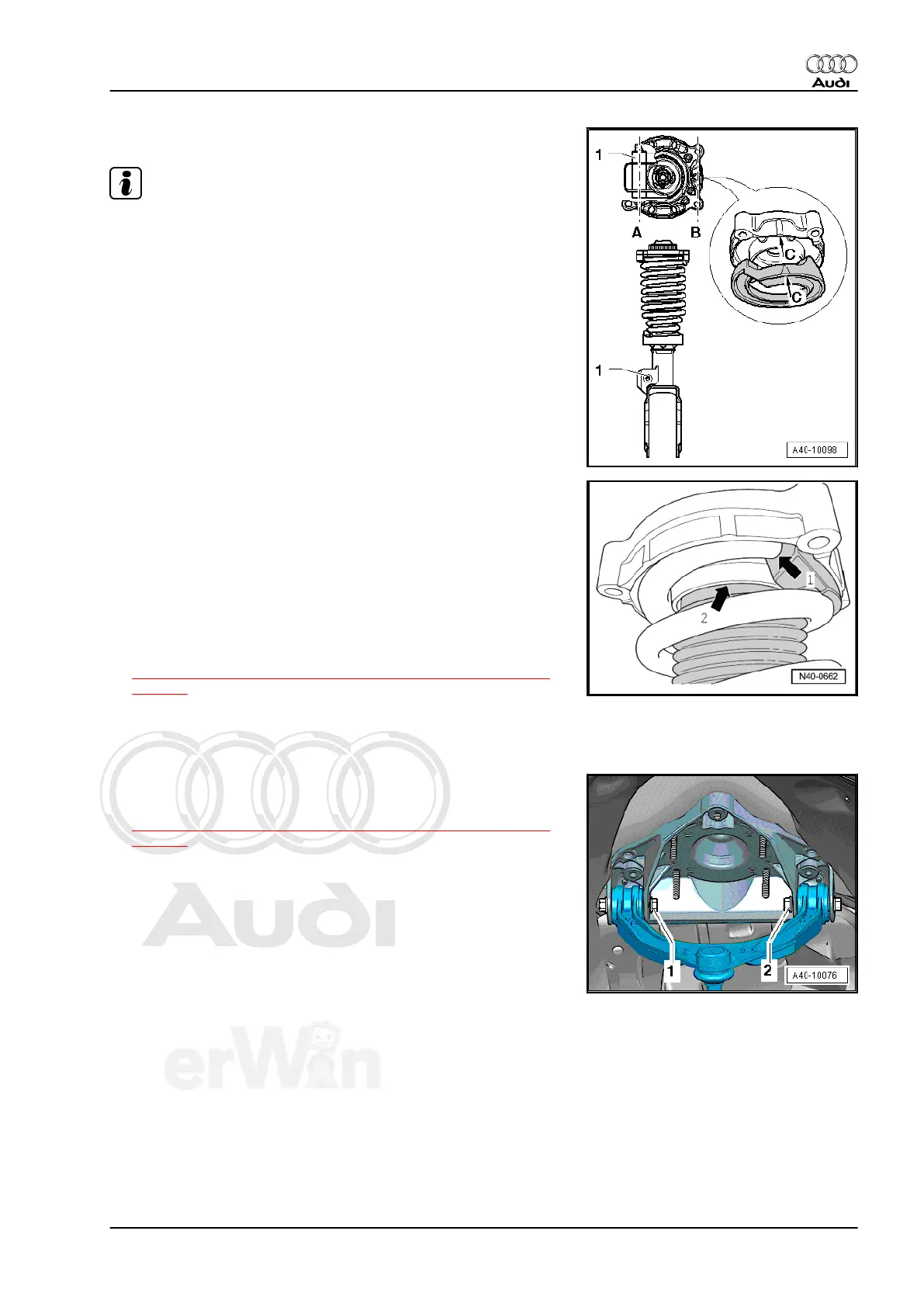

Place protective sleeve and upper spring plate on piston rod.
Note
The upper spring plate must be set on the spring so that the
markings -Arrow- are located opposite the connecting link at‐
tachment -1-.
Center lines -A- and -B- must be parallel to each other.
End of spring coil must rest against stop of upper washer
-arrow 1-.
Make sure protective foil is clipped in upper spring plate
-arrow 2-.
Position shock absorber mount and attach new nut to piston
rod.
Relieve the tension on the Spring Tensioner - VAS6046- and
remove from the coil spring.
Suspension strut, installing , refer to
“3.2 Coil Spring Suspension Strut, Removing and Installing”,
page 48 .
3.4 Upper Control Arm, Removing and In‐
stalling
Removing
Suspension strut (coil spring), removing, refer to
“3.2 Coil Spring Suspension Strut, Removing and Installing”,
page 48 .
Disconnect connections -1- and -2-, remove upper control
arm.
Audi Q7 2007 ➤
Suspension, Wheels, Steering - Edition 01.2014
3. Coil Spring Suspension Strut, Upper Control Arm, Mounting Bracket and Level Control System Sensor 53
