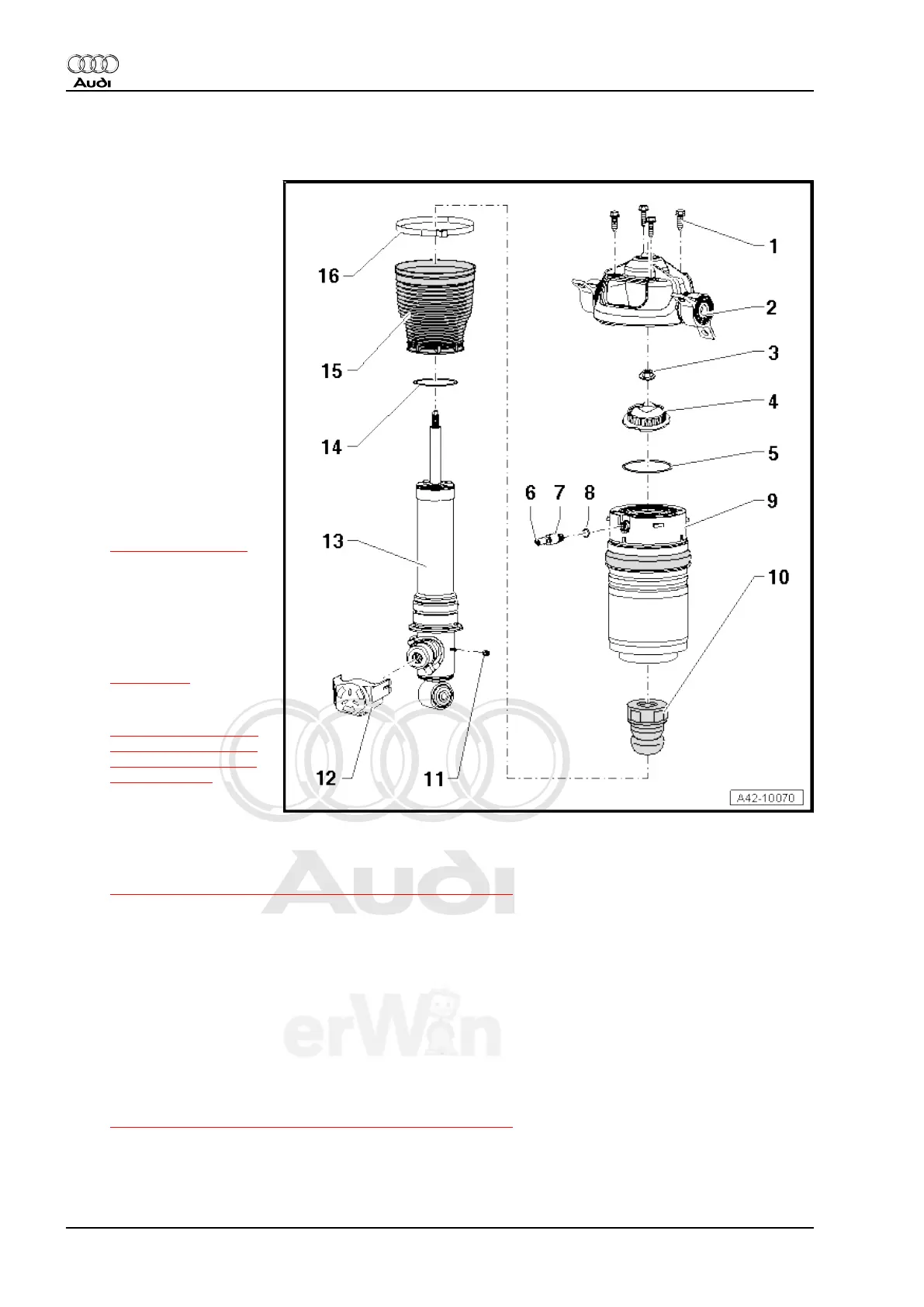

4.6 Air Suspension Strut Overview
1 - Bolt
30 Nm
Quantity: 4
2 - Bracket
3 - Nut
60 Nm
Always replace if re‐
moved.
4 - Bearing
5 - Seal
Always replace if re‐
moved,
6 - Transport Protection
Only install immediately
after installing residual
pressure retaining
valve, refer to -Item 7-
⇒ Item 7 (page 152) .
7 - Residual Pressure Retain‐
ing Valve
8 Nm
Observe important
notes about Removing
and Installing, refer to
⇒ page 159 .
Removing and Instal‐
ling, refer to
⇒ “4.8 Residual Pres‐
sure Retaining Valve,
Removing and Instal‐
ling”, page 159 .
8 - Seal
Replace
9 - Air Spring
Observe repair notes for servicing suspension struts (air suspension), refer to
⇒ “4.4 Air Suspension Strut, Repair Information”, page 149 .
When the vehicle has been driven 200,000 km, if there is damage to an air spring, it is recommended that the
opposite air spring is also replaced.
10 - Stop Buffer
11 - Nut
7 Nm
12 - Cap
13 - Shock Absorber
Allocation, refer to the Parts Catalog.
Observe repair notes for servicing suspension struts (air suspension), refer to
⇒ “4.4 Air Suspension Strut, Repair Information”, page 149 .
14 - Seal
Always replace if removed.
Grease with Lithium Grease .
Audi Q7 2007 ➤
Suspension, Wheels, Steering - Edition 01.2014
152 Rep. Gr.42 - Rear Suspension
