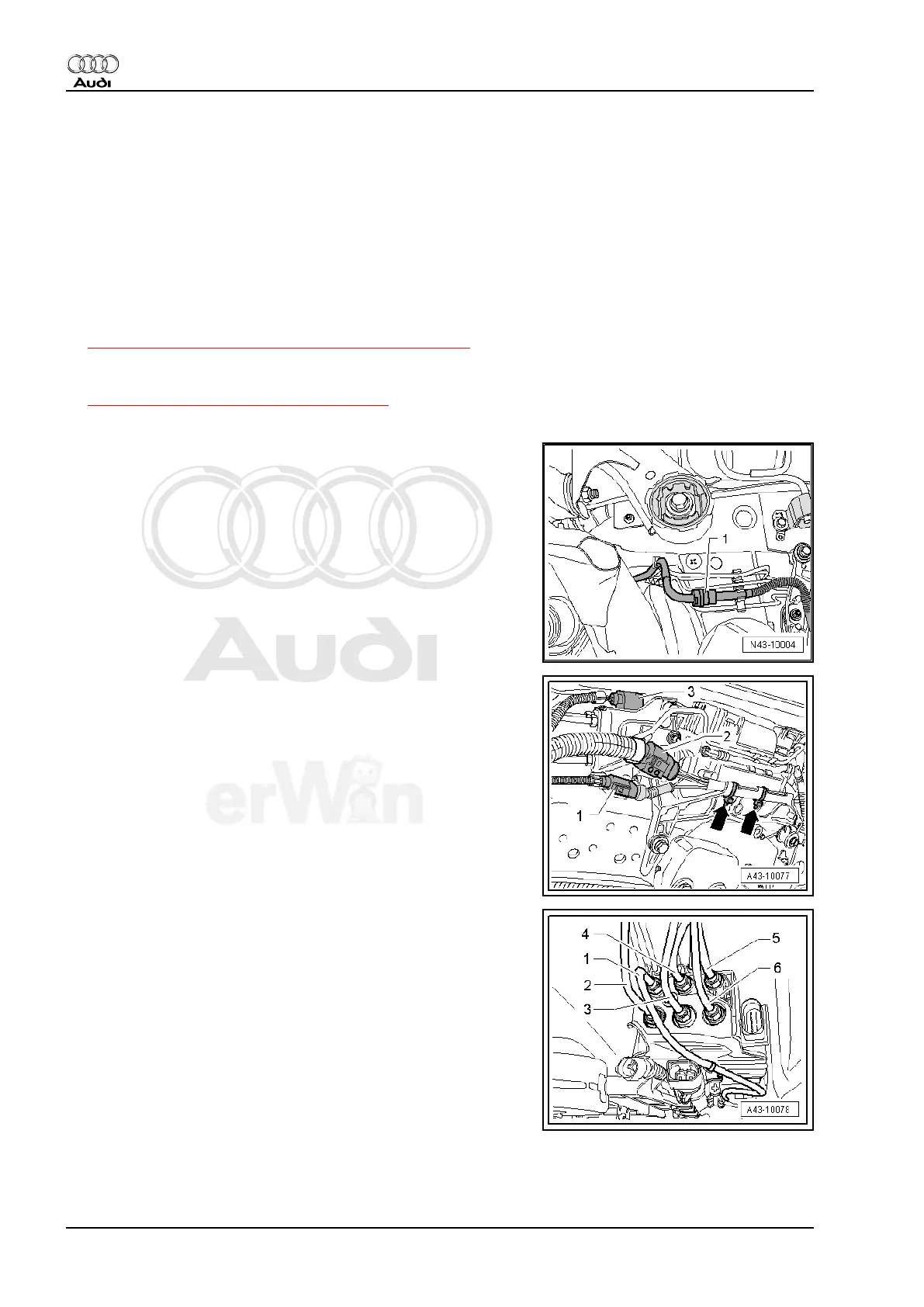

4.6 Air Supply Unit with Solenoid Valve
Block, Removing and Installing
Special tools and workshop equipment required
♦ Torque Wrench 1331 5-50Nm - VAG1331-
♦ Torque Wrench 1783 - 2-10Nm - VAG1783-
♦ Standard socket open end 12 mm
Removing
– Place vehicle on hoist, refer to
⇒ “4 Positioning Vehicle on Hoist and Wheels”, page 10 .
– Perform system vent on front/rear axle and pressure reservoir
with -Vehicle Diagnostic Tester- , refer to
⇒ “3.9 System, Venting or Filling”, page 221 .
– Remove right underbody trim, refer to ⇒ Rep. Gr. 50 .
– Disconnect intake line -1- at clutch.
– Disconnect the connectors -1- to -3-.
– Remove air lines -2- to -6- from solenoid valve block.
1 - black, internal air line between solenoid valve block and
compressor
2 - Green, air line toward right front air spring shock absorber
3 - Red, air line toward left rear air spring shock absorber
4 - violet, air line to left front air spring damper
5 - Blue, air line toward pressure reservoirs
6 - Yellow, air line toward right rear air spring shock absorber
Audi Q7 2007 ➤
Suspension, Wheels, Steering - Edition 01.2014
230 Rep. Gr.43 - Self-Leveling Suspension
