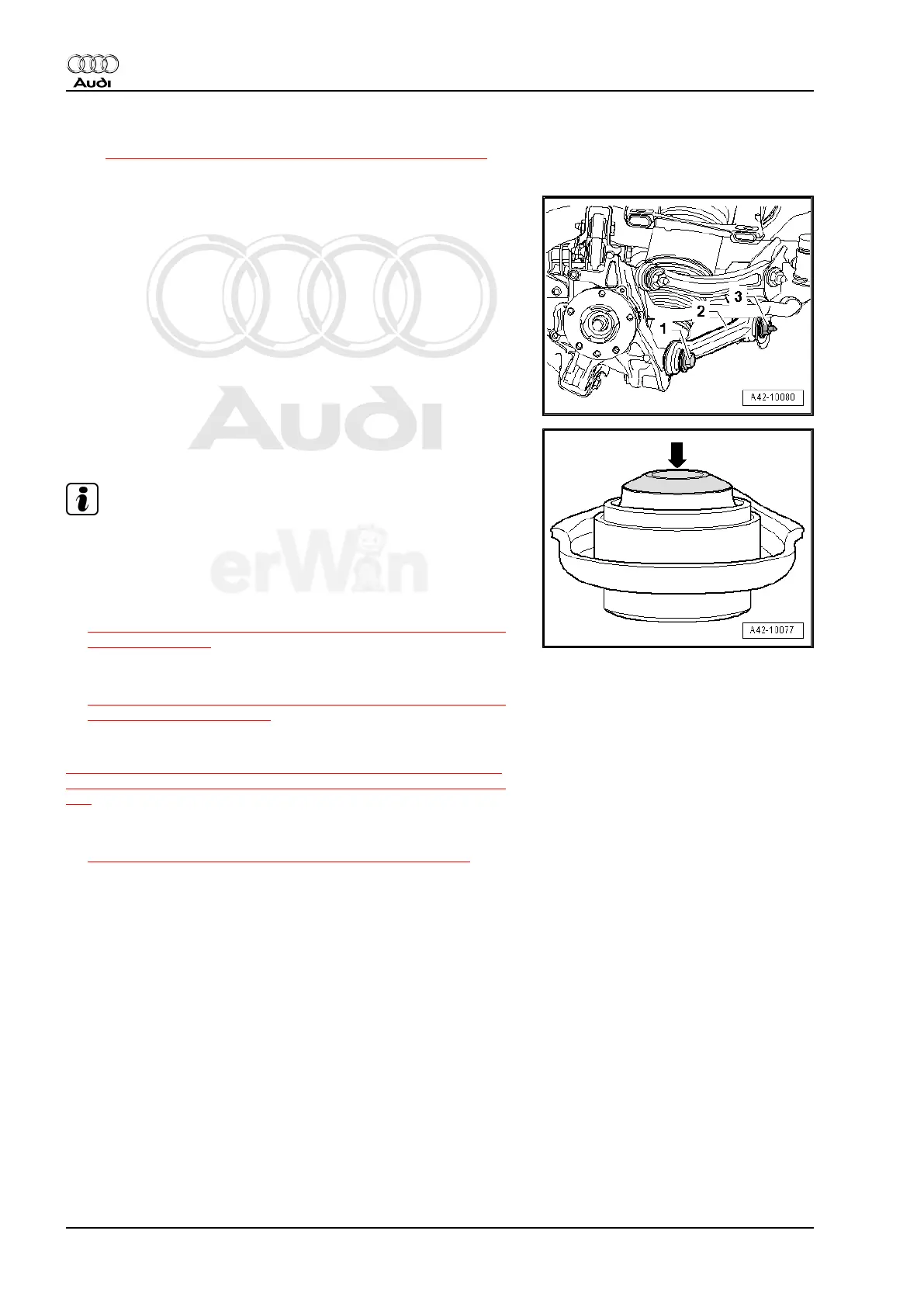

– With vehicles with air suspension, place vehicle on hoist, refer
to ⇒ “4 Positioning Vehicle on Hoist and Wheels”, page 10 .
– Remove wheel.
– Remove screw -1-.
– Mark position of eccentric bolt to subframe.
– Remove nut -3- and remove screw.
– Remove tie rod -2-.
Installing
Install in reverse order of removal. Note the following:
– Install tie rod with conical surface -arrow- on wheel bearing
housing.
Note
♦ Bonded rubber bushings can only be turned to a limited extent.
Only tighten suspension screws when vehicle is in curb weight
or control position.
♦ Wheel bearing, lifting to curb weight position on vehicles with
coil springs, refer to
⇒ “1.4 Wheel Bearing in Curb Weight, Lifting Vehicles with Coil
Spring”, page 118 .
♦ For vehicles with air spring suspension, lift wheel suspension
in control position, refer to
⇒ “1.5 Wheel Bearing in Control Position, Lifting Vehicles with
Air Suspension”, page 120 .
Tightening specifications, refer to
⇒ “3.1 Lower Control Arm, Level Control System Sensor, Upper
Front and Upper Rear Control Arms and Tie Rod Overview”, page
138 .
– On vehicles with air suspension, position vehicle on wheels,
refer to
⇒ “4 Positioning Vehicle on Hoist and Wheels”, page 10 .
– Tighten the wheels, refer to ⇒ Rep. Gr. 44 .
– On vehicles with automatic headlamp range control system,
perform a basic setting on the headlamps ⇒ Rep. Gr. 94 .
Audi Q7 2007 ➤
Suspension, Wheels, Steering - Edition 01.2014
144 Rep. Gr.42 - Rear Suspension
