Note
♦ Intermediate values for reduced damping performance cannot
be read out.
♦ A prognosis on service life is not permitted.
♦ Measured values that occur with the involvement of the sus‐
pension travel end stops are incorrect.
The following values apply only to the test stands named above.
If the specified values are exceeded, the shock absorber action
has weakened enough that a replacement is recommended.
Example:
Threshold = 70
♦ a = greater than 70: insufficient damping effect.
♦ a = less than 70: sufficient damping effect.
Shock absorber combination installed in vehicle is indicated by
corresponding PR number on vehicle data plate.
Clarification of weight Production Relevant numbers (PR number)
refer to ⇒ “5.3 PR Number Explanations”, page 248 .

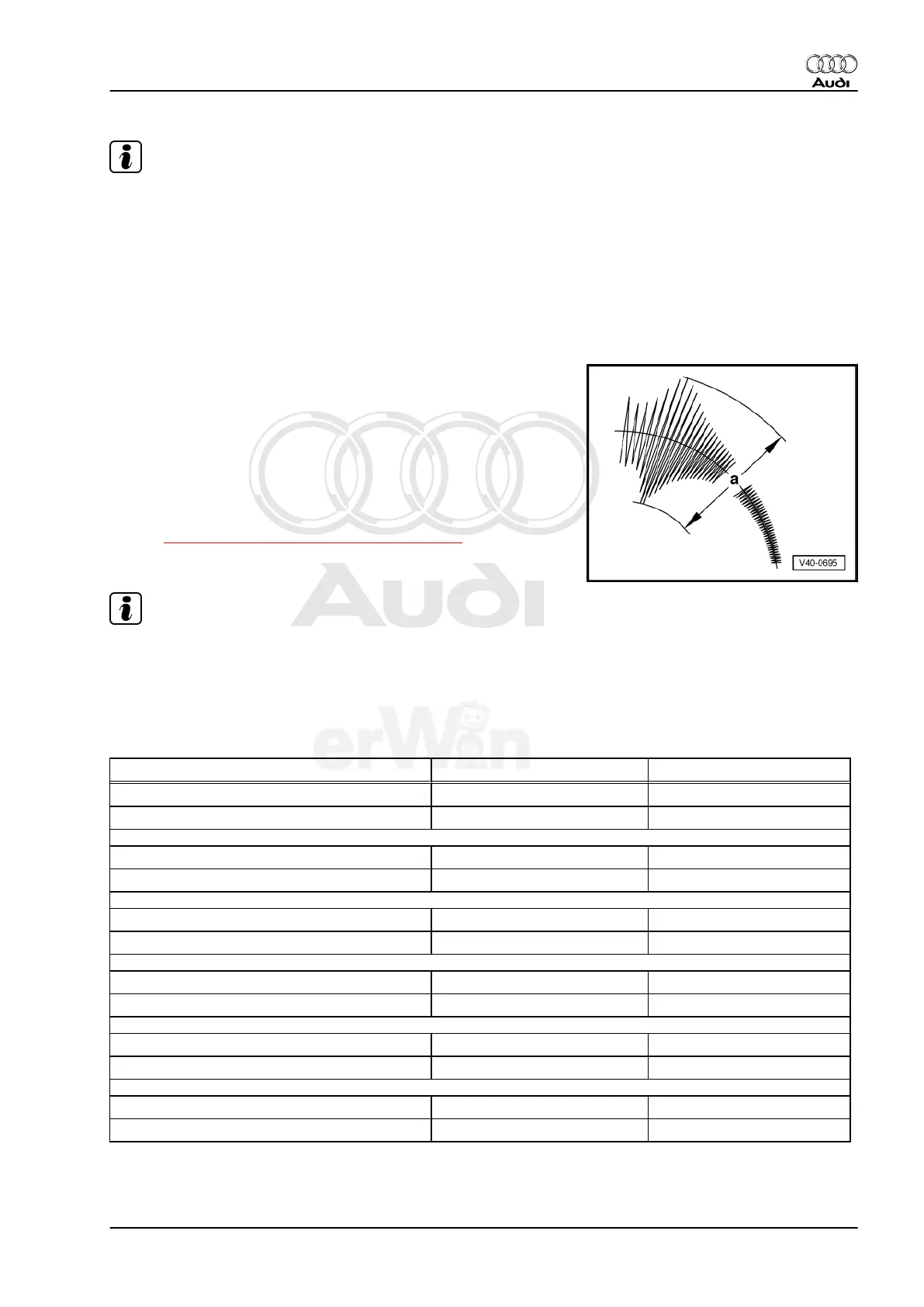

Threshold “a” in mm
Note
♦ If the readout value is greater than the limit value “a” (table
value): insufficient damping effect ⇒ replace shock absorber.
♦ If the readout value is less than the limit value “a” (table value):
sufficient damping effect ⇒ shock absorber does not need to
be replaced.
Vehicle Type Front Axle Rear Axle
Q7 standard suspension 1BA 34 /
Q7 standard suspension 1BA / 35
Q7 Comfort suspension USA 1BW 36 /
Q7 Comfort suspension USA 1BW / 34
Q7 Air suspension 1BK 34 /
Q7 Air suspension 1BK / 35
Q7 standard suspension Japan 1BM 34 /
Q7 standard suspension Japan 1BM / 35
Q7 Sport suspension S line 1BV 33 /
Q7 Sport suspension S line 1BV / 34
Q7 air spring suspension S line 2MB 34 /
Q7 air spring suspension S line 2MB / 35
Audi Q7 2007 ➤
Suspension, Wheels, Steering - Edition 01.2014
3. Shock Absorber, Checking 9
