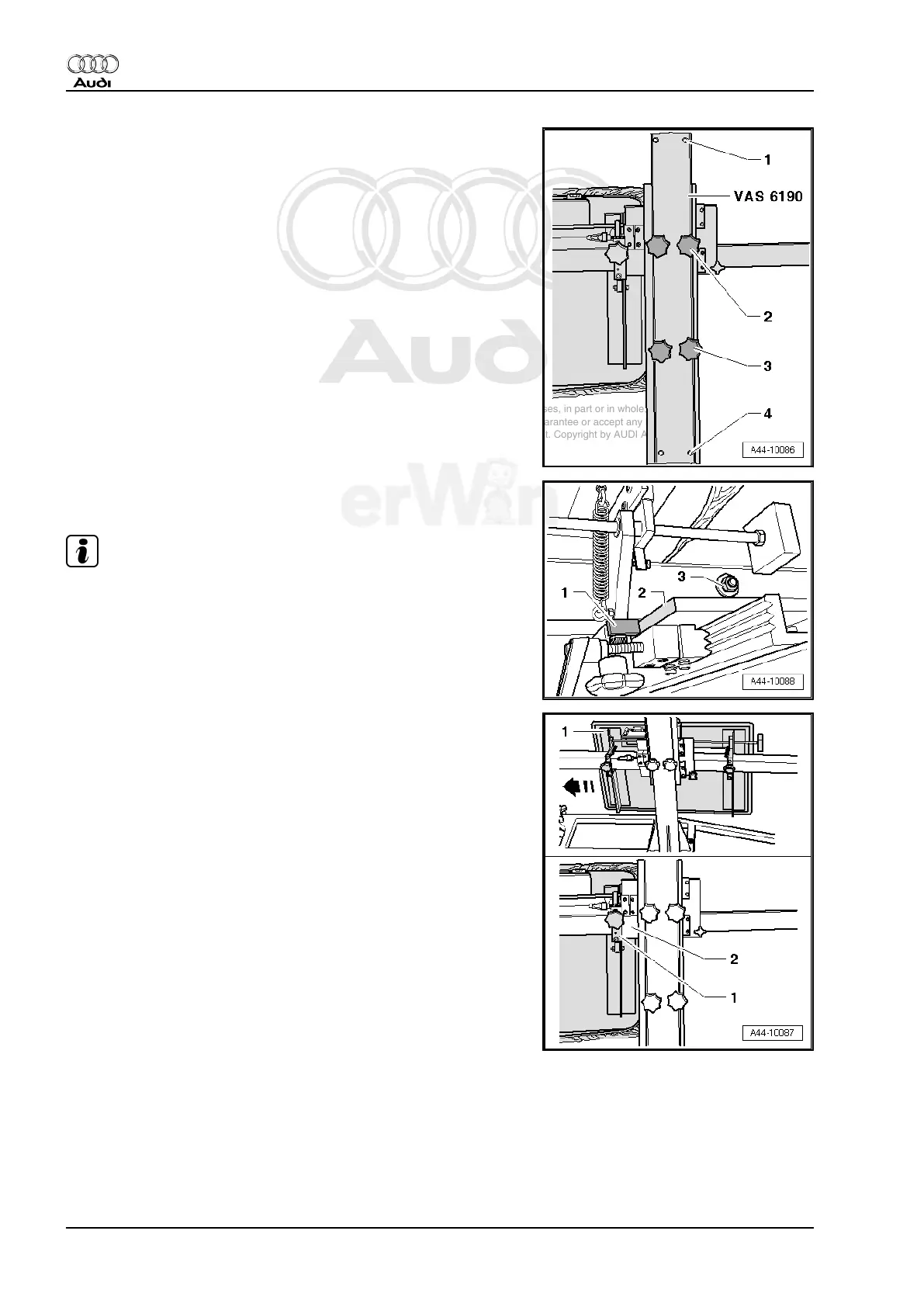

– For the adjustment procedure, the vertical slits in mounts -1-
through -4- must be inserted so that laser beam is approxi‐
mately centered vertically when it contacts the sensor lens.
– The original nut at the top of the horizontal slits must be re‐
placed with a standard nut -3-.
Note
The original nut at the top of the horizontal slits must be replaced
with a standard nut so that the mirror can be slide far enough to
the center.
– The mirror at the center -1- must be removed and installed
again all the way to the left -arrow- near the vertical slits -2-.
Audi Q7 2007 ➤
Suspension, Wheels, Steering - Edition 01.2014
258 Rep. Gr.44 - Wheels, Tires, Wheel Alignment
