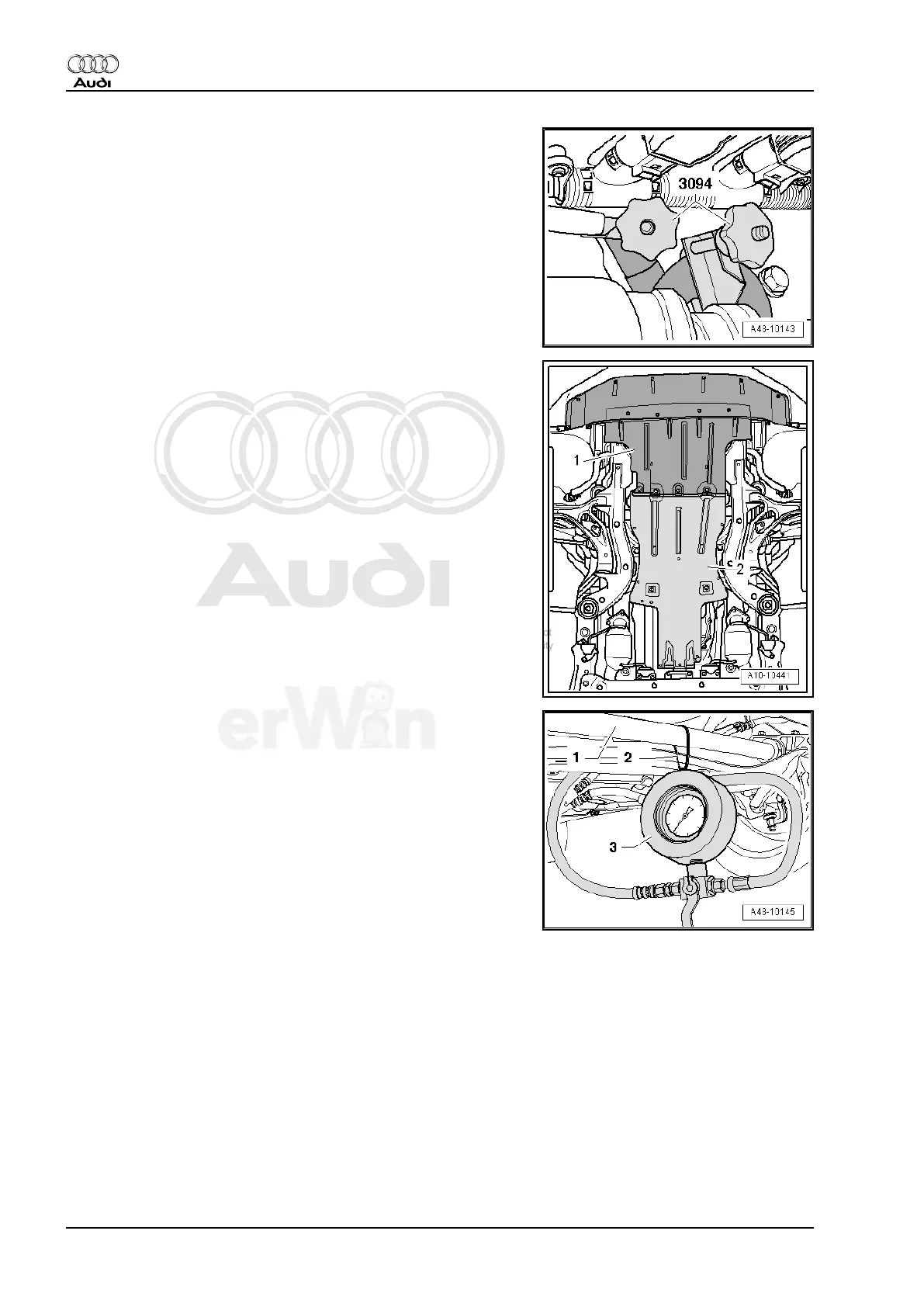

– Clamp the intake hose and the return line on the reservoir us‐
ing Hose Clamps - Up To 25mm - 3094- .
– Only remove front noise insulation -1-.
– Secure Power Steering Test Unit - VAG1402- -3- with a cable
tie -2- to stabilizer bar -1-.
Audi Q7 2007 ➤
Suspension, Wheels, Steering - Edition 01.2014
320 Rep. Gr.48 - Steering
