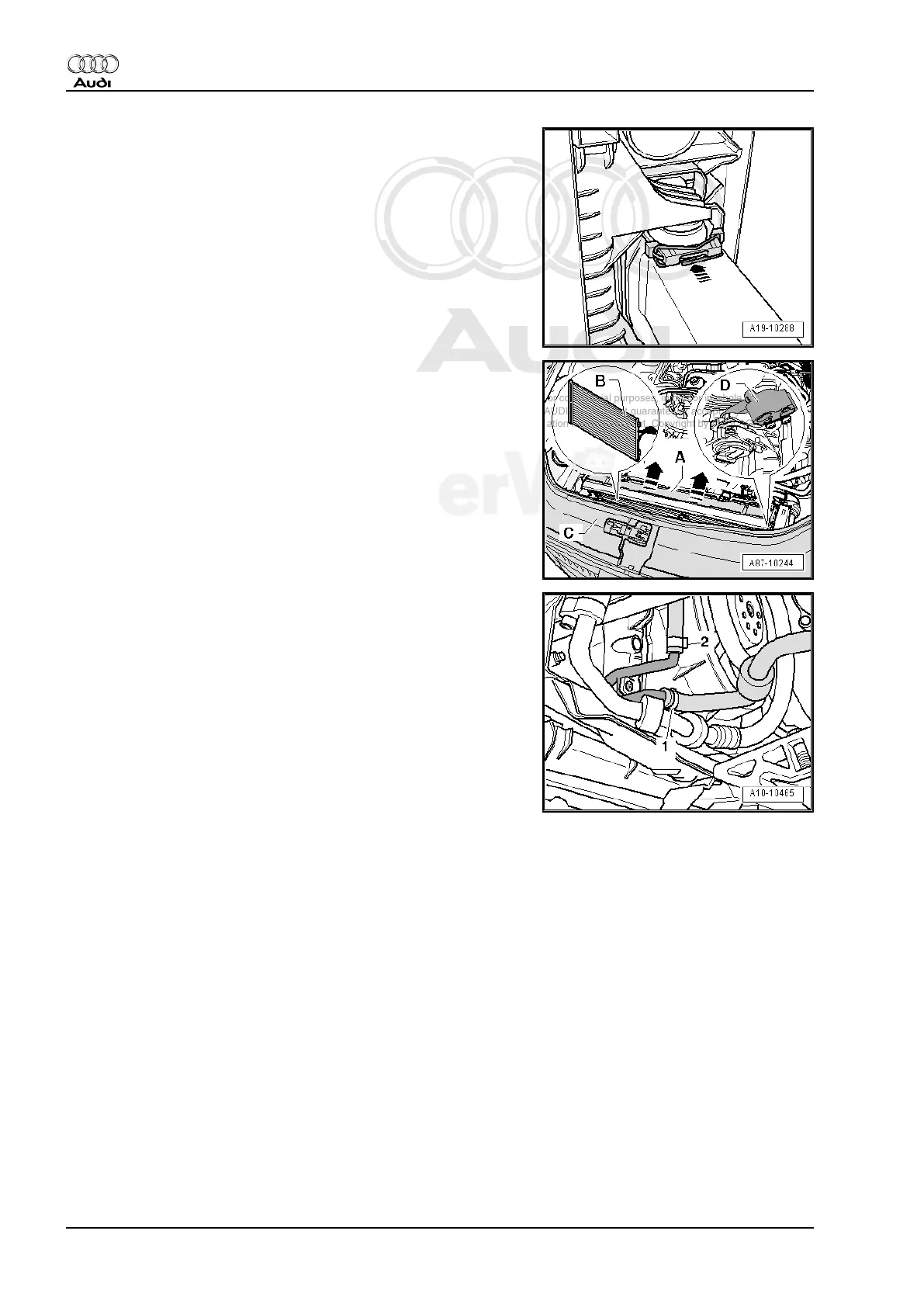

Clamp on the left and right sides secure the radiator (press again
the lock -arrow- to remove the clamps), refer to ⇒ Engine Me‐
chanical; Rep. Gr. 19 .
– Loosen the radiator -A- from the lock carrier -C- and swivel it,
with the coolant hoses still connected, as far as possible to the
rear (disengage and tilt, do not remove the radiator, do not
open the coolant system), refer to ⇒ Engine Mechanical; Rep.
Gr. 19 . Be careful not to damage any components.
– Clamp the hydraulic lines -1- and -2- with Hose Clamps - Up
To 25mm - 3094- .
– Disconnect hydraulic lines -1- and -2- at hydraulic oil cooler.
Audi Q7 2007 ➤
Suspension, Wheels, Steering - Edition 01.2014
394 Rep. Gr.48 - Steering
