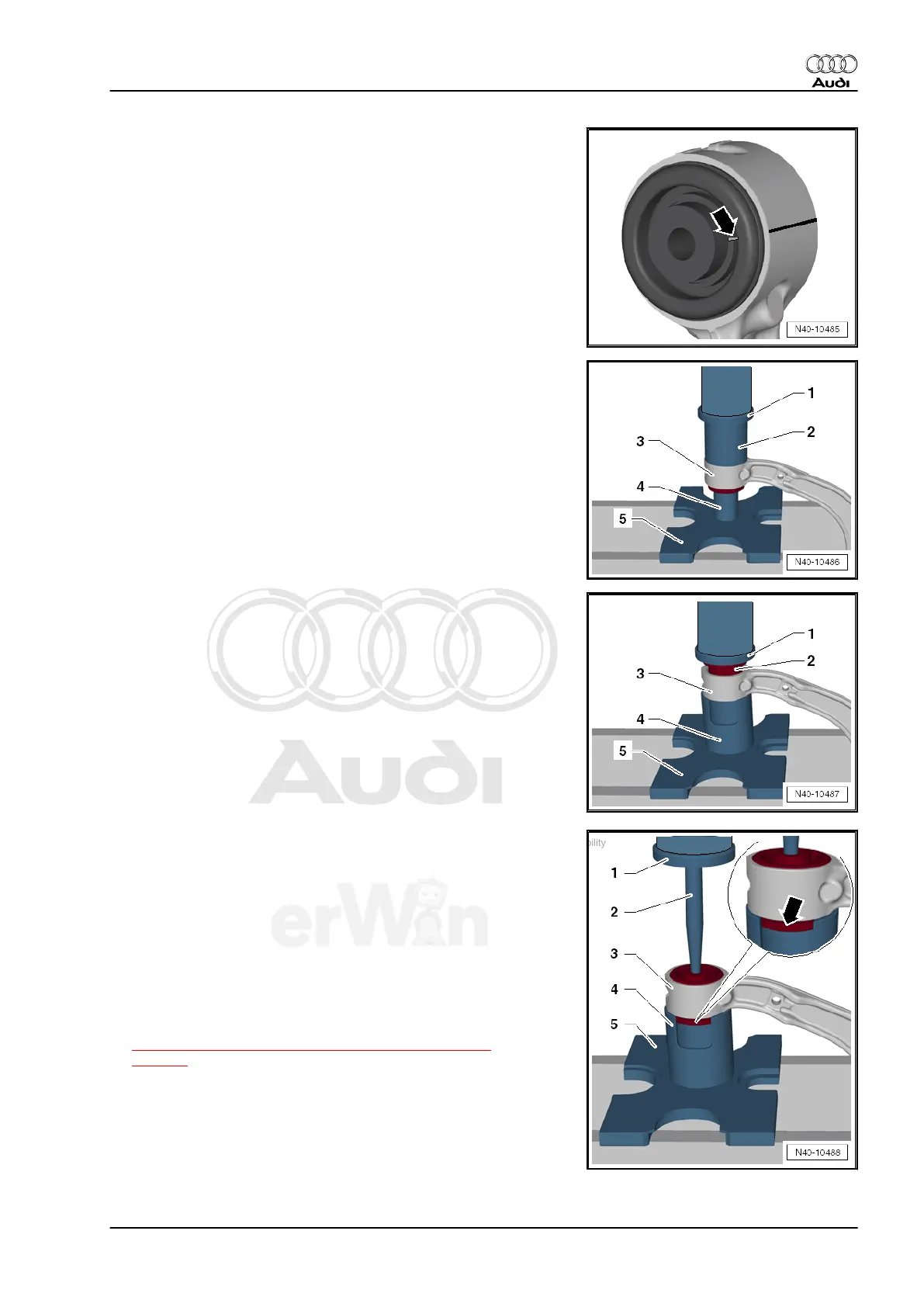

– Mark the position of the bonded rubber mount on the basis of
the slot -arrow- with respect to the upper control arm.
Pressing off
– Mount the tools as illustrated.
1 - Press Piece - Multiple Use - VW412-
2 - Sleeve - 3301/4-
3 - Upper Control Arm
4 - Press Piece - Multiple Use - VW426-
5 - Press Plate - VW401-
Pressing In
– Coat the outside of the bonded rubber bushing with some in‐
stallation lubricant, refer to the Parts Catalog.
– Mount the tools as illustrated.
1 - Press Piece - Multiple Use - VW412-
2 - Bonded Rubber Bushing
3 - Upper Control Arm
4 - Assembly Tool - T10219/1-
5 - Press Plate - VW401-
– Continue to press the inner core of the bonded rubber mount
until the bead -arrow- slips out of the control arm.
1 - Press Piece - Multiple Use - VW412-
2 - Drift - T10219/2-
3 - Upper Control Arm
4 - Assembly Tool - T10219/1- with the cutout upward toward
the control arm
5 - Press Plate - VW401-
– Install the upper control arm, refer to
⇒ “4.9 Upper Control Arm, Removing and Installing”,
page 78 .
Audi Q7 2007 ➤
Suspension, Wheels, Steering - Edition 01.2014
4. Air Suspension Strut, Upper Control Arm and Level Control System Sensor 79
