Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
with respect to the correctness of information in this document. Copyright by AUDI AG.
♦ Engine/Gearbox Jack - VAG1383A-
♦ Torque Wrench 1332 40-200Nm - VAG1332-
♦ Wrench - Elbow Wrench - 21mm - T10188-
Affects Vehicles with Air Suspension
– Place vehicle on hoist, refer to
⇒ “4 Positioning Vehicle on Hoist and Wheels”, page 10 .
Affects all Vehicles

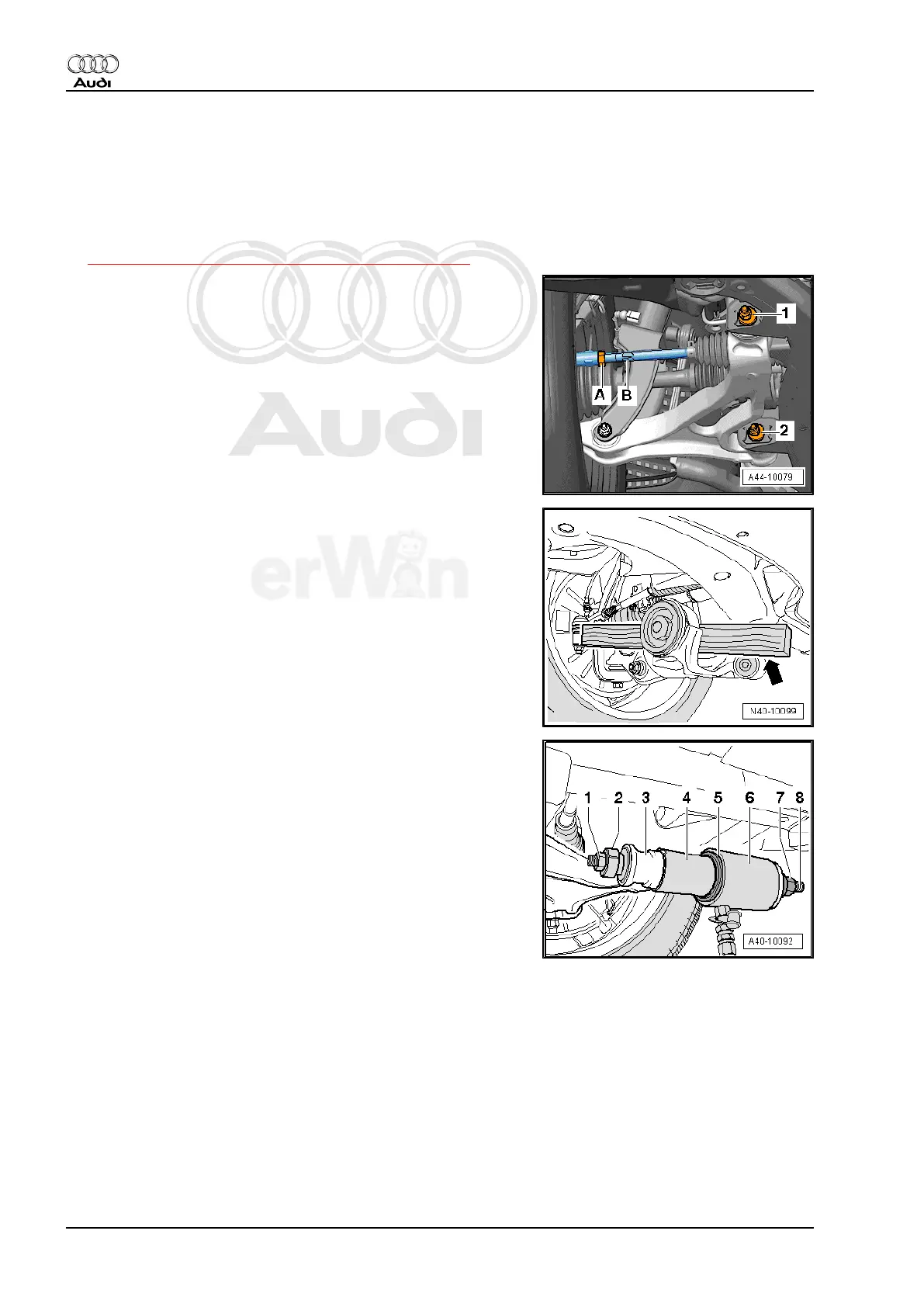

– Disconnect connections -1- and -2-.
– Remove lower control arm from subframe and place wood
block -arrow- between lower control arm and subframe.
Bonded Rubber Bushing, Pressing Out (Camber Adjustment Bolt
Connection)
– Attach tools onto lower control arm, as shown in illustration.
1 - Nut
2 - Thrust Piece - T10230/4-
3 - Lower Control Arm
4 - Tube - T10230/5-
5 - Thrust Plate - T10230/7-
6 - Hydraulic Press - VAS6178-
7 - Nut - T10230/2-
8 - Threaded Spindle - T10230/1-
– Press out the bonded rubber mount.
Audi Q7 2007 ➤
Suspension, Wheels, Steering - Edition 01.2014
86 Rep. Gr.40 - Front Suspension
