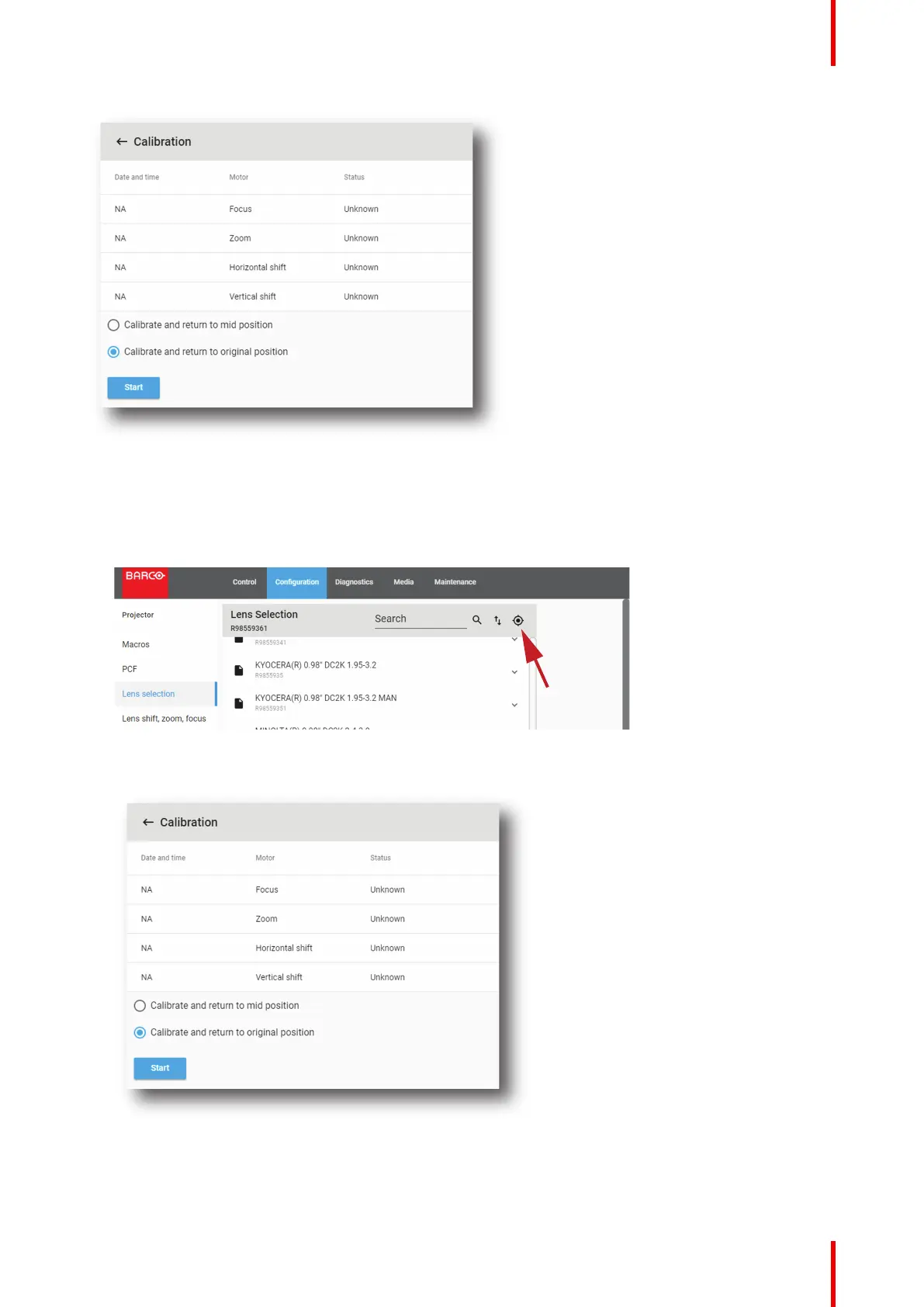

How to calibrate a lens

1. While in Configuration > Projector > Lens , activate the desired lens.

2. Click on the calibrate icon located on top of the lens selection list.

Image 7–58

The Calibration panel is displayed.

Image 7–59
