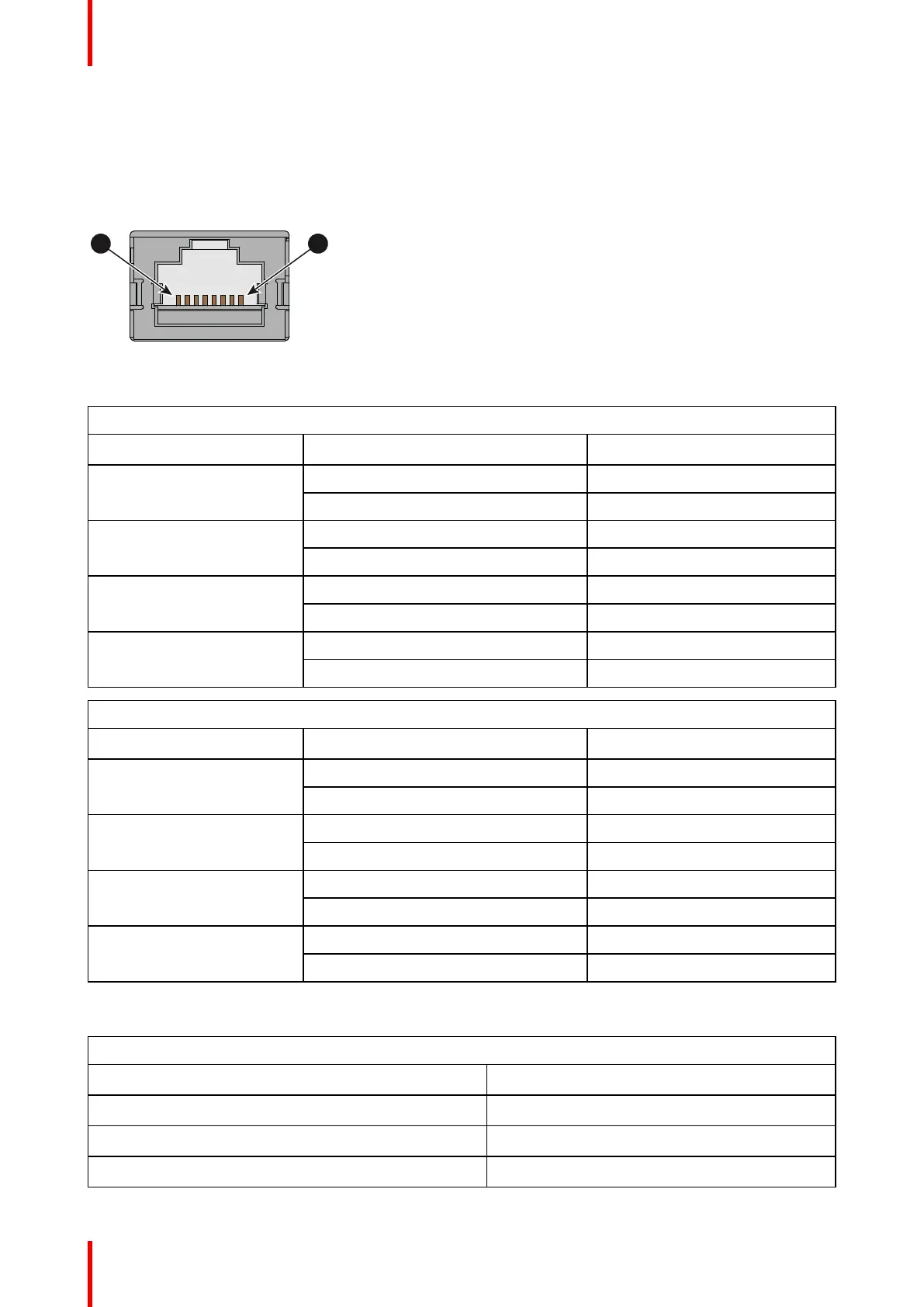

B.3 Pin configurations of the ICMP-X
communication ports
RJ-45 pin configuration
P1P8
Image B–3
Audio Channels:
AUDIO-AES 1-8
Audio channel
AES pair RJ-45 pin
1, 2 1 + 1
1 - 2
3, 4 2 + 3
2 - 6
5, 6 3 + 4
3 - 5
7, 8 4 + 7
4 - 8
AUDIO-AES 9-16
Audio channel
AES pair RJ-45 pin
9, 10 5 + 1
5 - 2
11, 12 6 + 3
6 - 6
13, 14 7 + 4
7 - 5
15, 16 8 + 7
8 - 8
General Purpose Output:
GPO 1-4
Definition
RJ-45 pin
EXT_GPOUT_1_P 1
EXT_GPOUT_1_N 2
EXT_GPOUT_2_P 3
Pin configurations
