R5910032 /00 Freya168
1
2
3
4

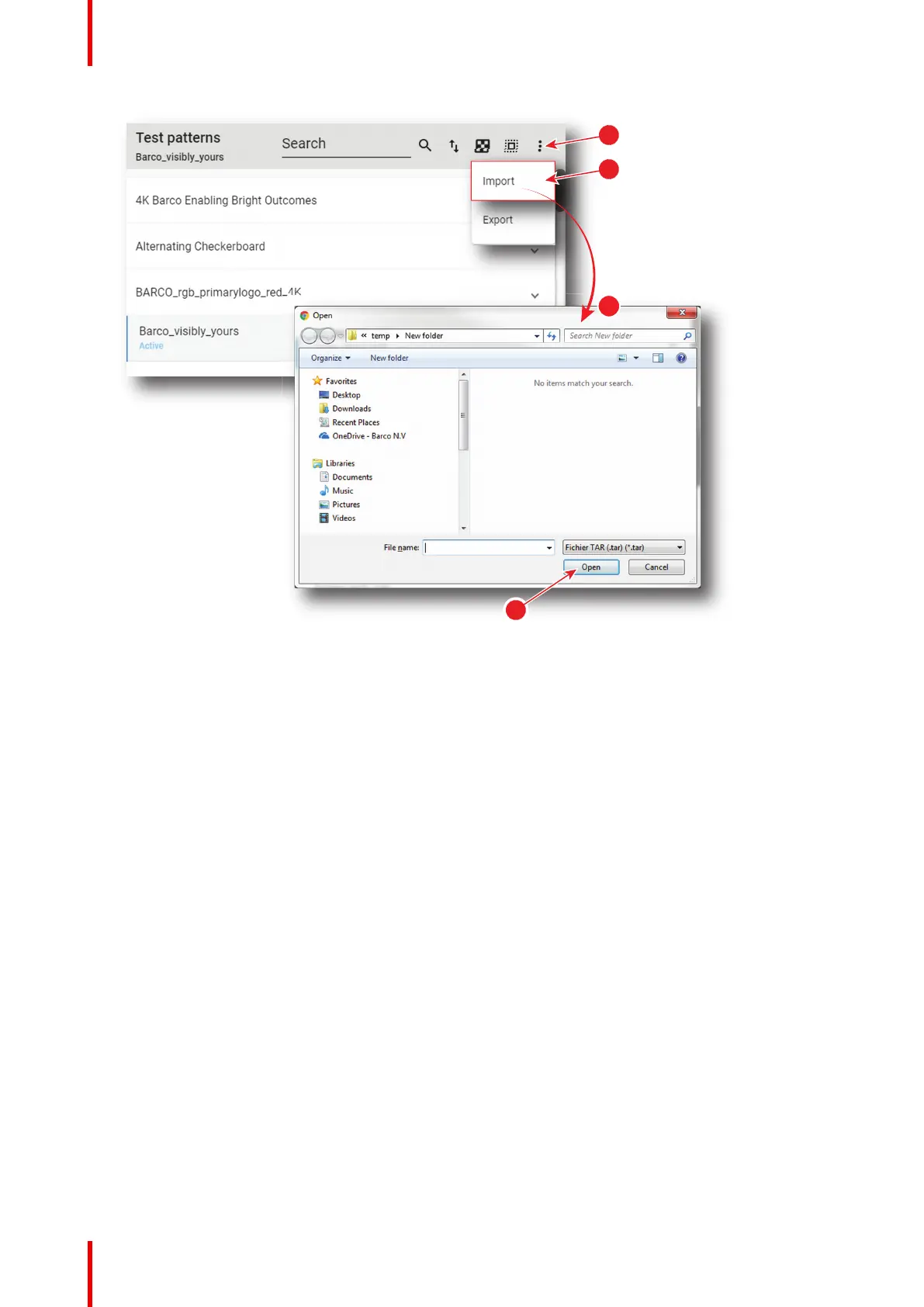

Image 7–159
2. Select Import (reference 2) in the menu.
Open window (reference 3) is displayed
3. Locate and select a test pattern (.PNG) alone (one single file), or a package of test patterns (.tar) with
several files inside.
4. Click Open (reference 4).
Selected files are imported and added to the list.
7.8.7 Exporting a test pattern
Location & access
Menu: Configuration > Projector > Test Patterns
Level: Administrator, Service technician
How to export a test pattern
1. While in Configuration > Projector > Test pattern, find and click on the test pattern you want to export.
The test pattern is displayed in its expanded form with menu.
Configuration - Projector
