6.2.7 Lens focus
Location & access
Menu: Control > Projector > Light, dowser, lens
Level: Administrator, Service technician, Show manager
How to adjust the lens focus
1. Use the plus button or minus button to adjust the focus of the lens.

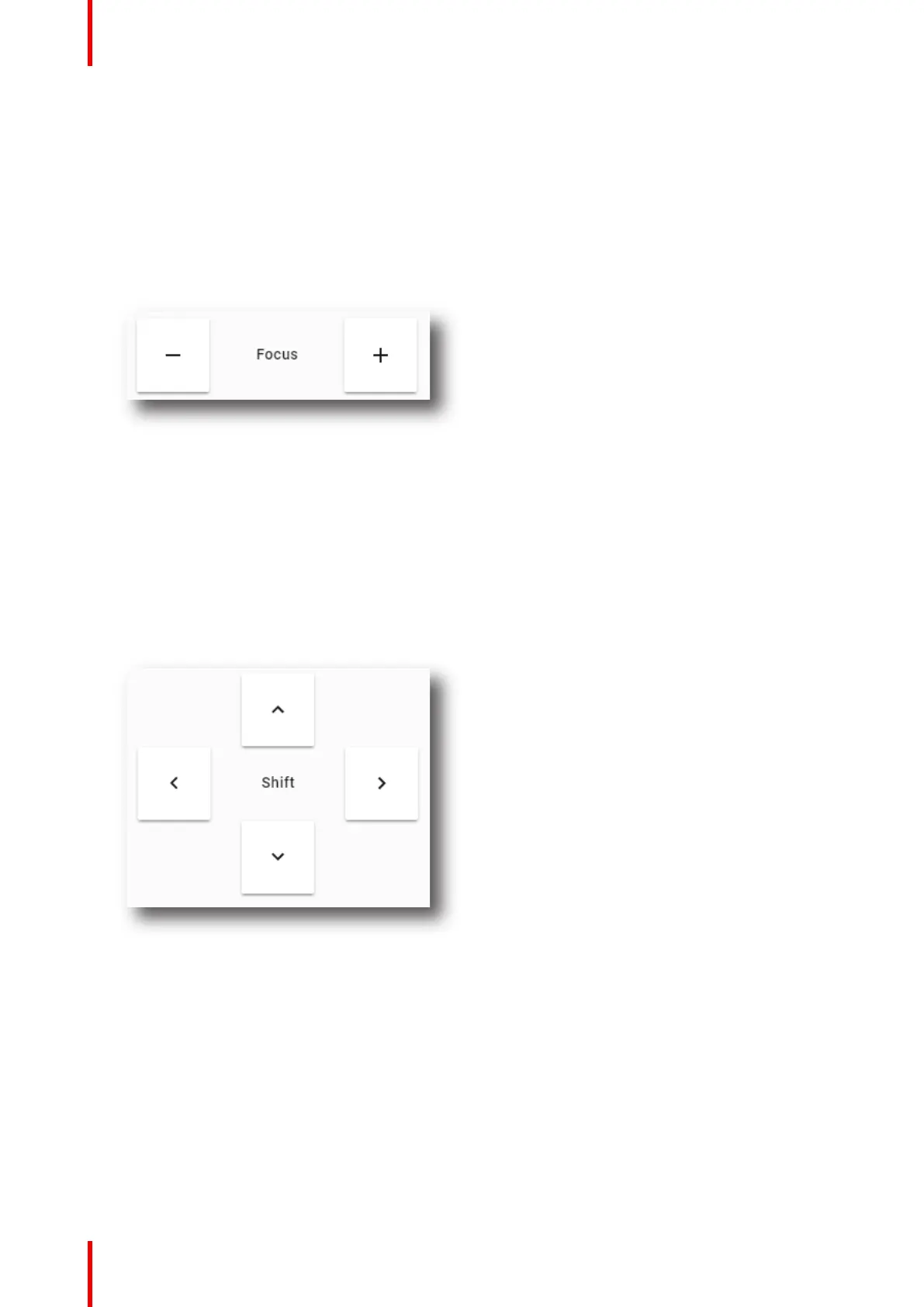

Image 6–7
6.2.8 Lens shift
Location & access
Menu: Control > Projector > Light, dowser, lens
Level: Administrator, Service technician, Show manager
How to shift the lens
1. Use the Shift buttons to correctly position (up/down/left/right) the projected image on the screen.
Image 6–8
6.3 Test patterns control
6.3.1 About test patterns control
Location & access
Menu: Control > Projector > Test patterns
Level: Administrator, Service technician, Show manager
Control - Projector
