Barco Freya - Test Pattern On-Off; Lens Zoom

65R5910032 /00 Freya
How to open or close the dowser
1. Click on the Dowser button to open or close the projector dowser.

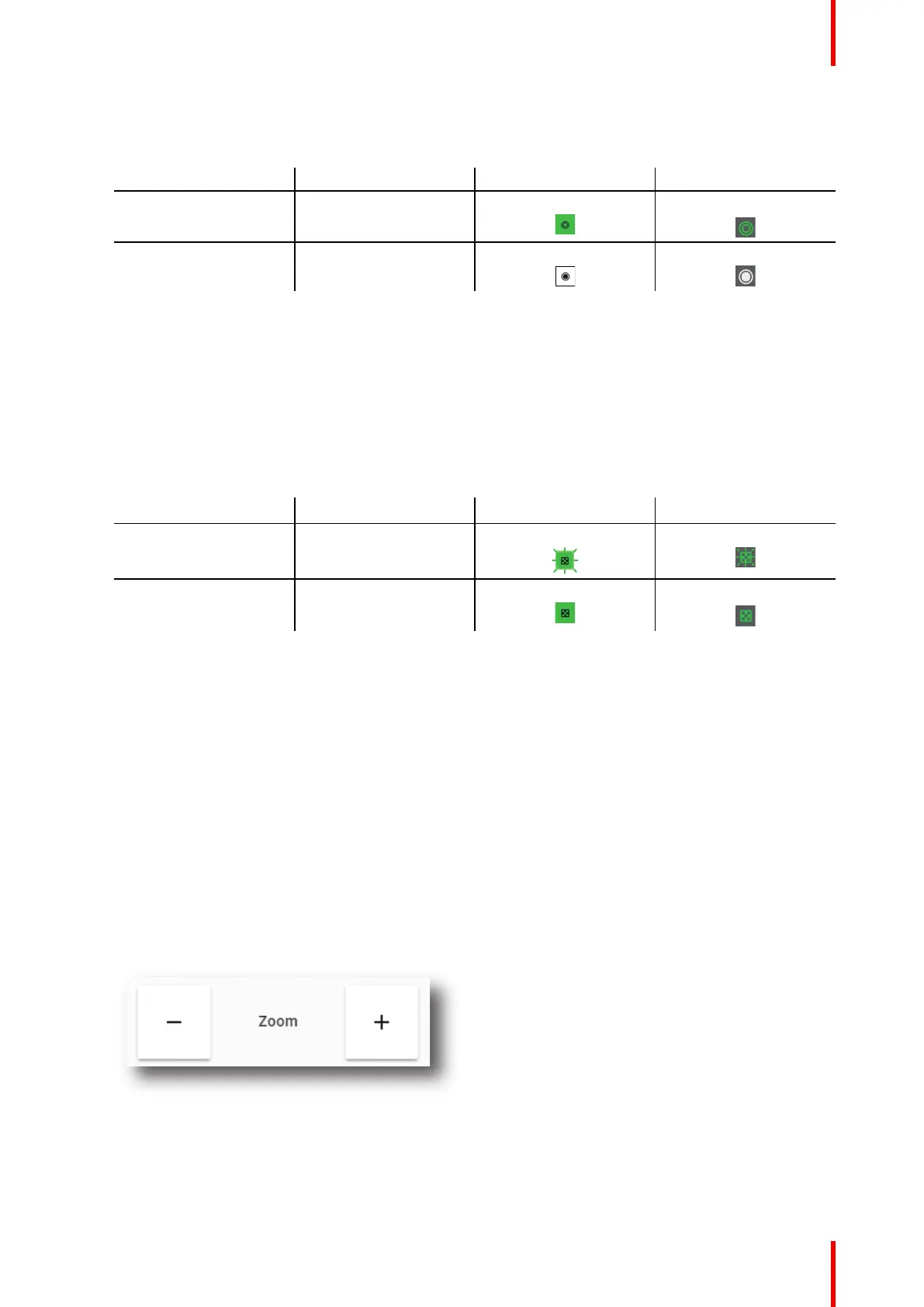

Button State Dowser Button color Status icon
On Open Green
Dowser is open
Off Close White Dowser is closed
6.2.5 Test pattern on-off
Location & access
Menu: Control > Projector > Light, dowser, lens
Level: Administrator, Service technician, Show manager
How to activate or deactivate selected test pattern
1. Click on the test pattern button to activate test pattern.
Button State
Test pattern
Button color Status icon
On Activated (displayed on
screen)
Blinks Green
Icon blinks
Off Deactivated Green Icon is lit continuously
2. Click again on the test pattern button to activate the next test pattern in the preselected list. Repeat this
action in order to switch to the next test patterns in the list.
3. Hold the test pattern button for more than 3 seconds to deactivate test pattern.
6.2.6 Lens zoom
Location & access
Menu: Control > Projector > Light, dowser, lens
Level: Administrator, Service technician, Show manager
How to zoom in or zoom out
1. Use the plus button to zoom in.
or
Use the minus button to zoom out.
Image 6–6
Control - Projector
