The left or the right eye pattern will be displayed alternatively. When e.g. the left pattern (indicated with L) is
displayed, only the left eye may see this image. When it is not so, the setup is wrong and should be corrected.
Entering the output frequency
1. While in 3D file editor, check if Disable 3D option (reference 1) is unchecked in order to acceded the
settings.

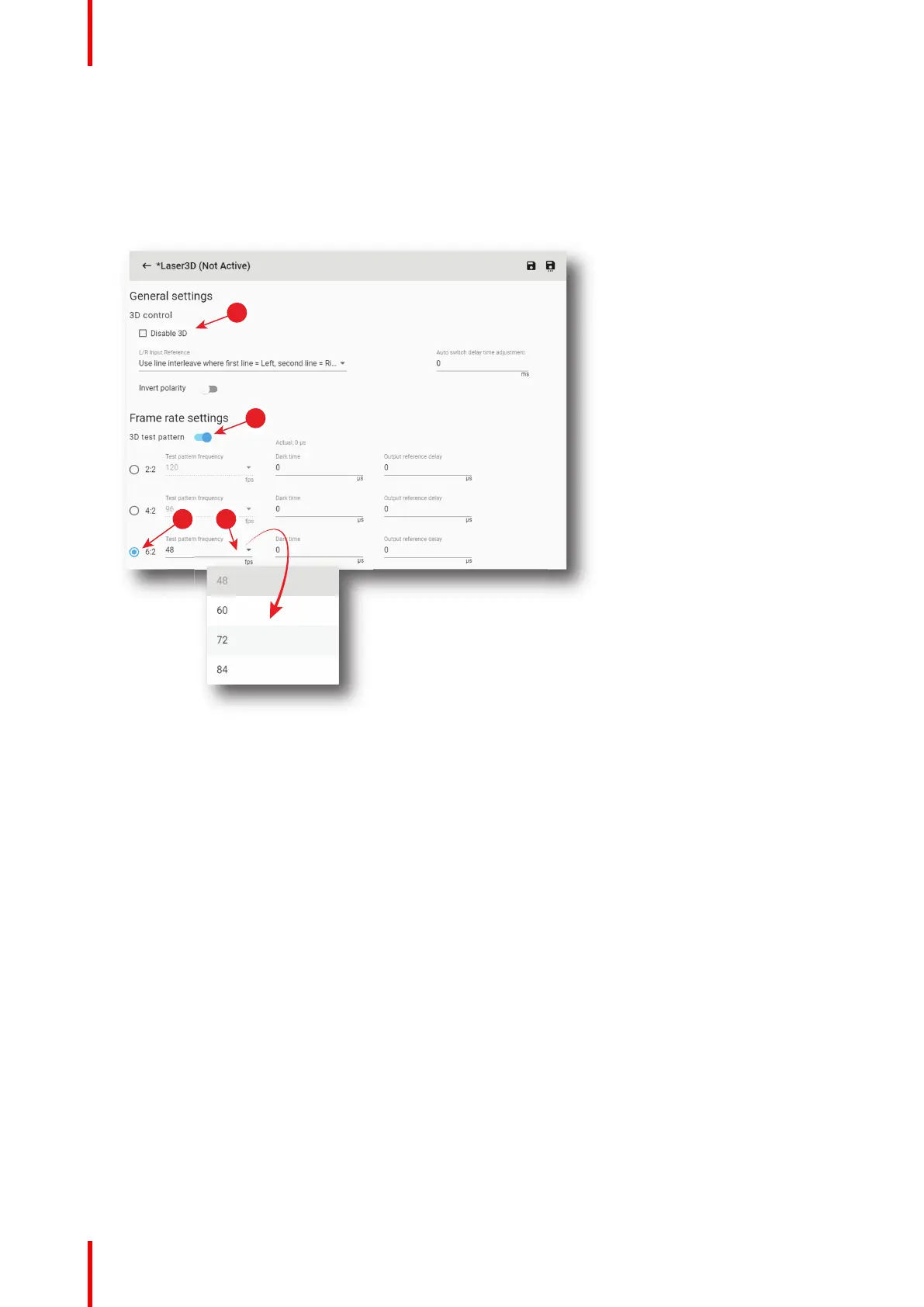

Image 7–84
2. Activate 3D test pattern (reference 2).
3. Select the playback frame rate (reference 3) for which the settings will be apply.
4. Select a new test pattern output frequency in drop down list (reference 4).
5. If necessary, repeat steps 3 and 4 at other playback frame rates.
7.5.3.2 3D control
L/R Input Reference
The Input Reference indicates which frame is Right and which frame is Left.
The following choices are possible:
Setting Description
None Provided no 3D L/R input reference provided
Use input reference - frame sequence mode (polarity
= true)
Use Active data port assignment (for dual port
sources) to determine 3D L/R input reference.
Use line interleave where first line = left, second line
= right
Uses the default assignment for 3D L/R reference.
