8.1 Light sensor calibration (LSC)
LSC file
Light sensor calibration file
8.1.1 About light sensor calibration
Location & access
Menu: Configuration > Light output > Sensor
Level: Administrator, Service technician
What should be done?
The build in light sensor of the projector should be calibrated before the measured light output is the correct
value. The calibration depends on the screen type and the projected image format (flat or scope). Before the
measured light out is correct, at least 2 calibration files should be created: one for flat and another one for
scope.
Overview
This panel allows to manage calibration files in order to realize the light sensor calibration.
1
4
9
2 3
5 6 7 8

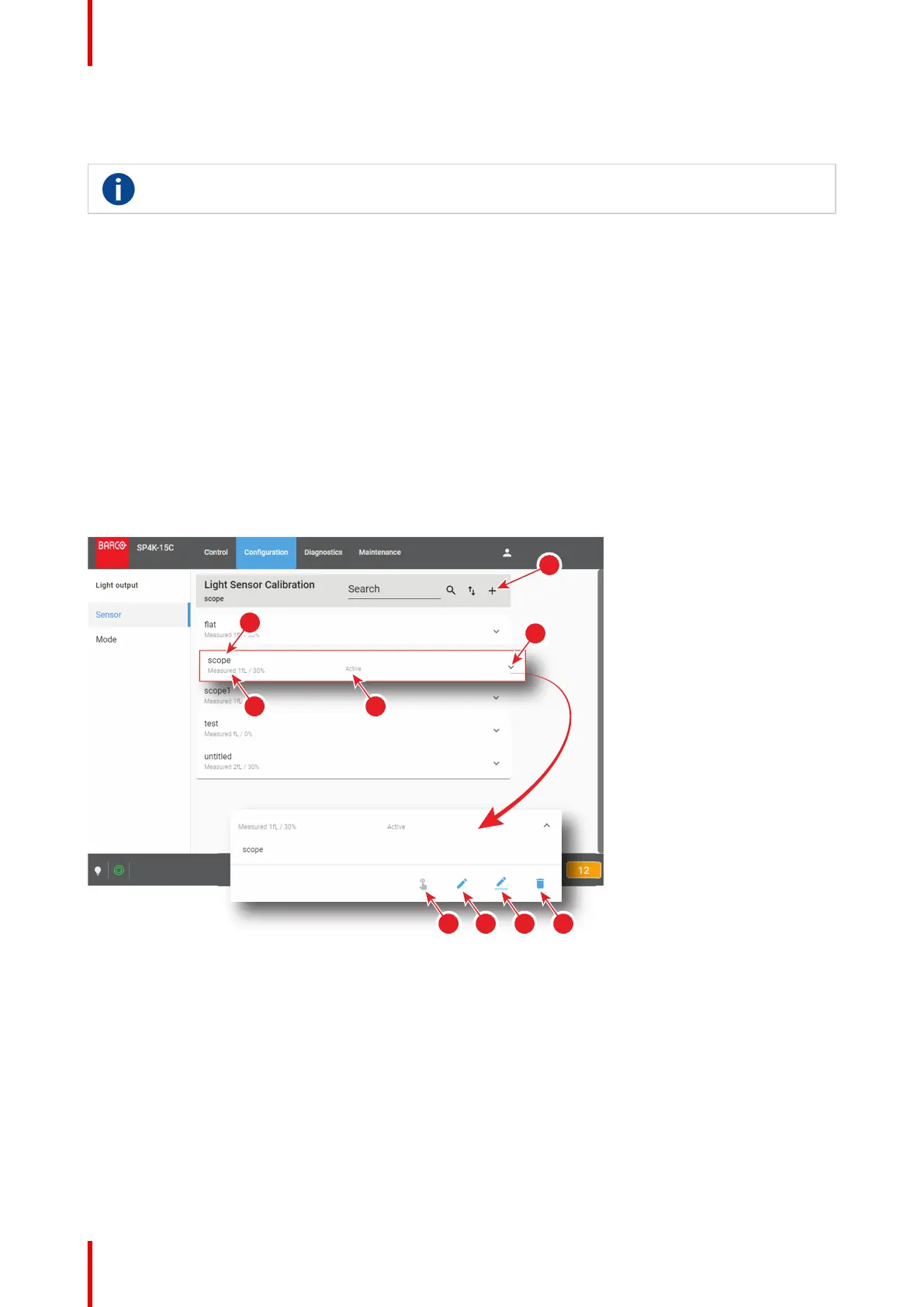

Image 8–1
Each sensor calibration file displayed in the list has a name (reference 1). Power value (reference 2) already
defined for this file is shown just under this name. When a calibration file is activated the status (reference 3)
turns to Active and its name is noticed on top of the list.
Click on sensor calibration file (reference 4) in the list allows to show it in its expanded form and displays a
contextual menu.
Following actions are available in this menu:
• Activate (reference 5) allows to calibrate the light output with the values defined in the sensor calibration
file.
• Edit (reference 6) allows to modify the sensor calibration file power values.
• Rename (reference 7) allows to change the name of the sensor calibration file.
• Delete (reference 8) allows to remove the sensor calibration file.
