Barco Freya - Deactivating a Test Pattern Using the Control Menu

R5910032 /00 Freya68
1
2

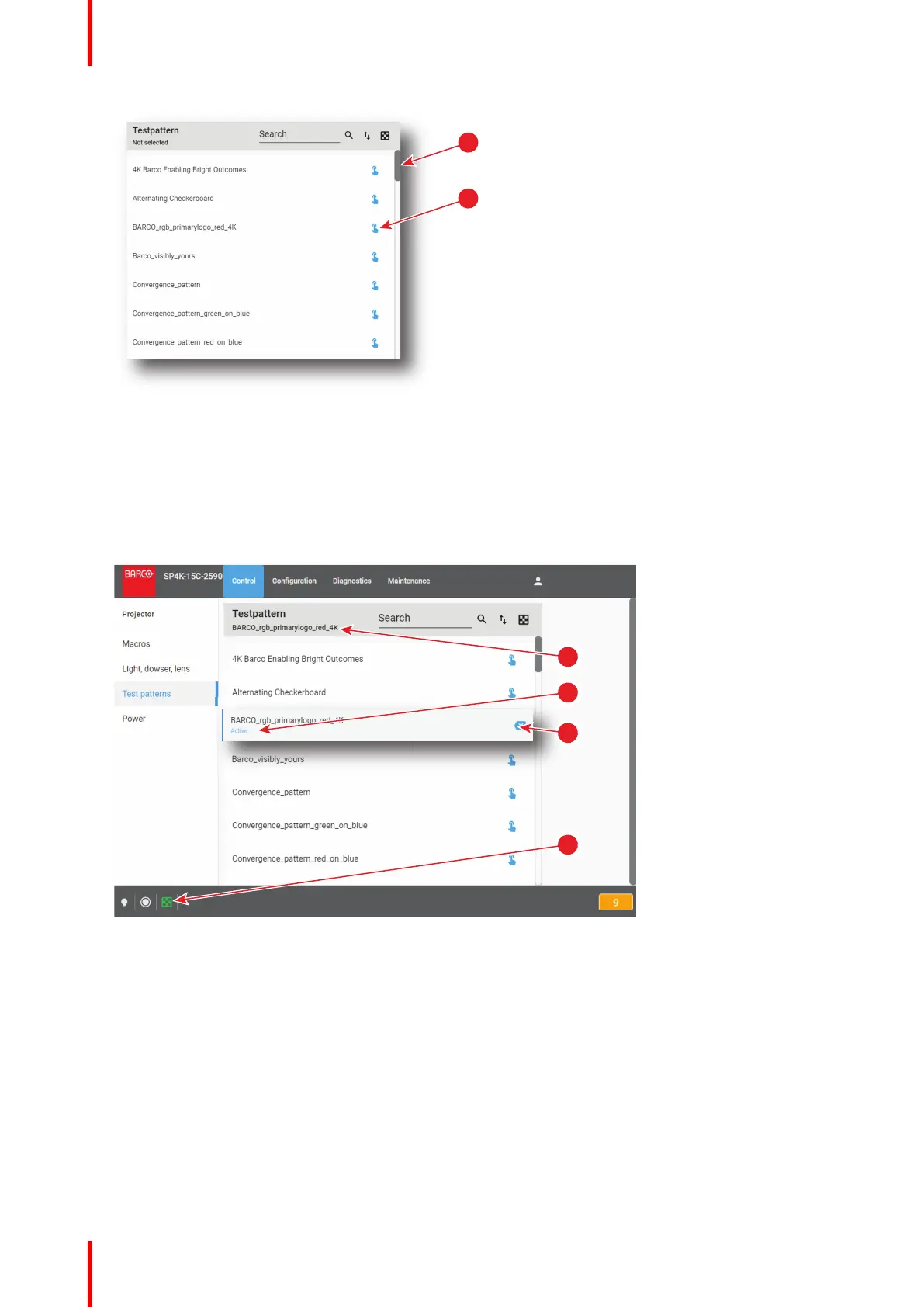

Image 6–10
2. Click Activate (reference 2).
The test pattern is now selected and automatically activated:
• Name of the test pattern is now displayed at the top of the list (reference 3).
• Status of the test pattern (reference 4) turns to Active.
• Deactivate (reference 5) is now available.
• Icon of test pattern (reference 6) is displayed (Blink Green) in status bar.
3
4
6
5
Image 6–11
6.3.3 Deactivating a test pattern using the control menu
Location & access
Menu: Control > Projector > Test patterns
Level: Administrator, Service technician, Show manager
Control - Projector
