• Enable dual eye color correction (reference 6) must be checked to chose “dual eye” color correction
(separate eyes).
7. Define color depth (reference 7) and color mode (reference 8). These values must be adapted depending
the specifications of the selected signal.
To obtain more details concerning the HD-SDI ports see “ICMP-X SDI specifications”, page 330.
8. Depending on your selection, detailed settings can be set.
When Override settings (reference 9) are not overruled (not checked), Color Space and 3D are
automatically set with the info given in the Info Frames inside the HD-SDI signal.
When Override settings (reference 9) are checked,
• Color Space (reference 11) can be set between RGB or YCbCr.
• Force 3D can be enabled or disabled (reference 10).
7.6.3.2 HDMI for ICMP
How to adjust HDMI parameters for ICMP
1. While in input file editor, click HDMI (reference 1).
1
2
3
4
5
6
7
8
9

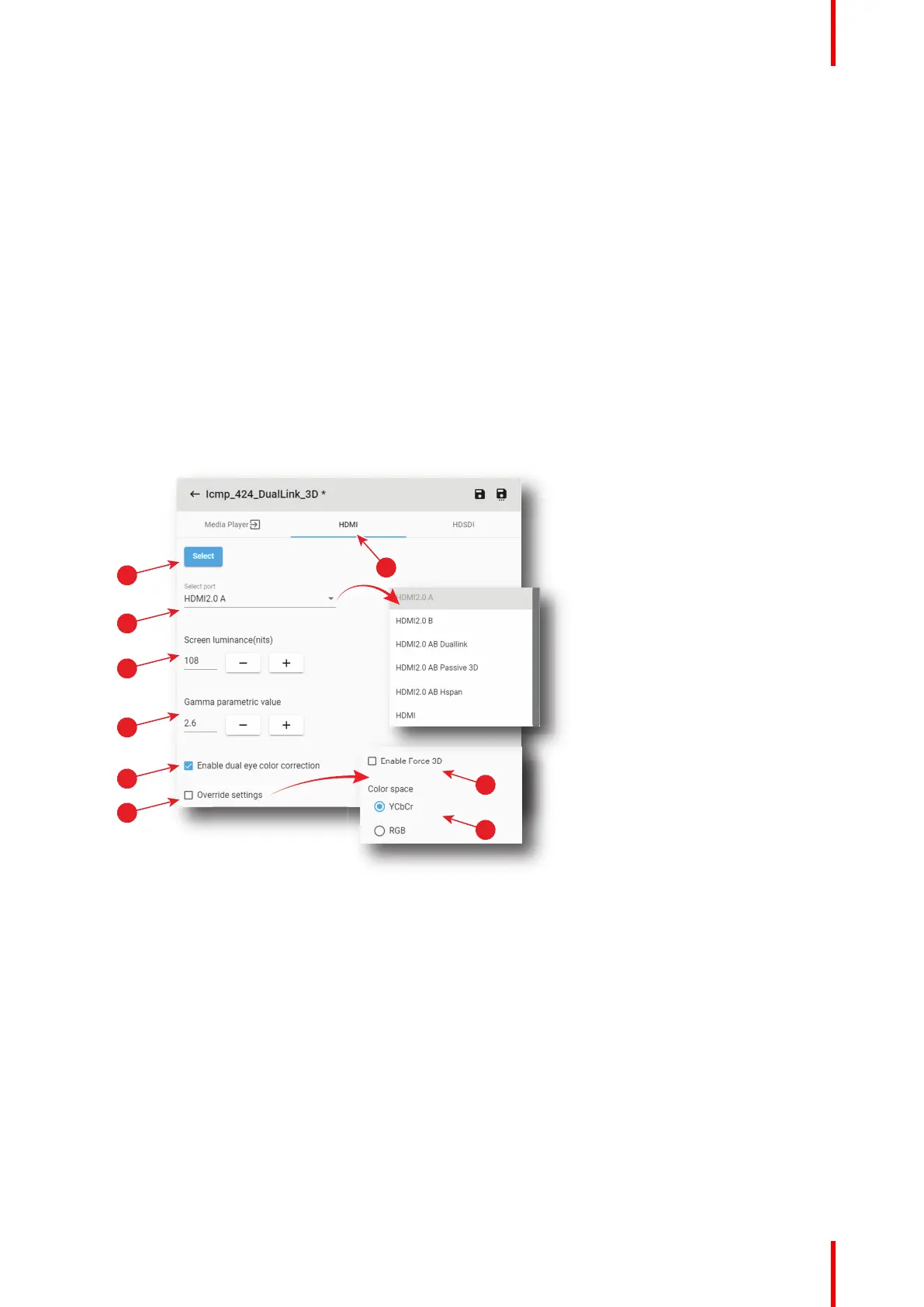

Image 7–111
2. If not already done, click Select (reference 2) to specify that HDMI is right now the source format select for
this file.
3. Select the port in the drop down list (reference 3).
The following ports are available:
• HDMI2.0 A
• HDMI2.0 B
• HDMI2.0 AB Duallink
• HDMI2.0 AB Passive 3D
• HDMI2.0 AB Hspan
• HDMI
To obtain more details concerning the HDMI ports see “ICMP-X HDMI 2.0 specifications”, page 333.
4. Use the plus button or minus button to adjust Screen luminance(nits) (reference 4) depending on the
source.
