305R5910032 /00 Freya

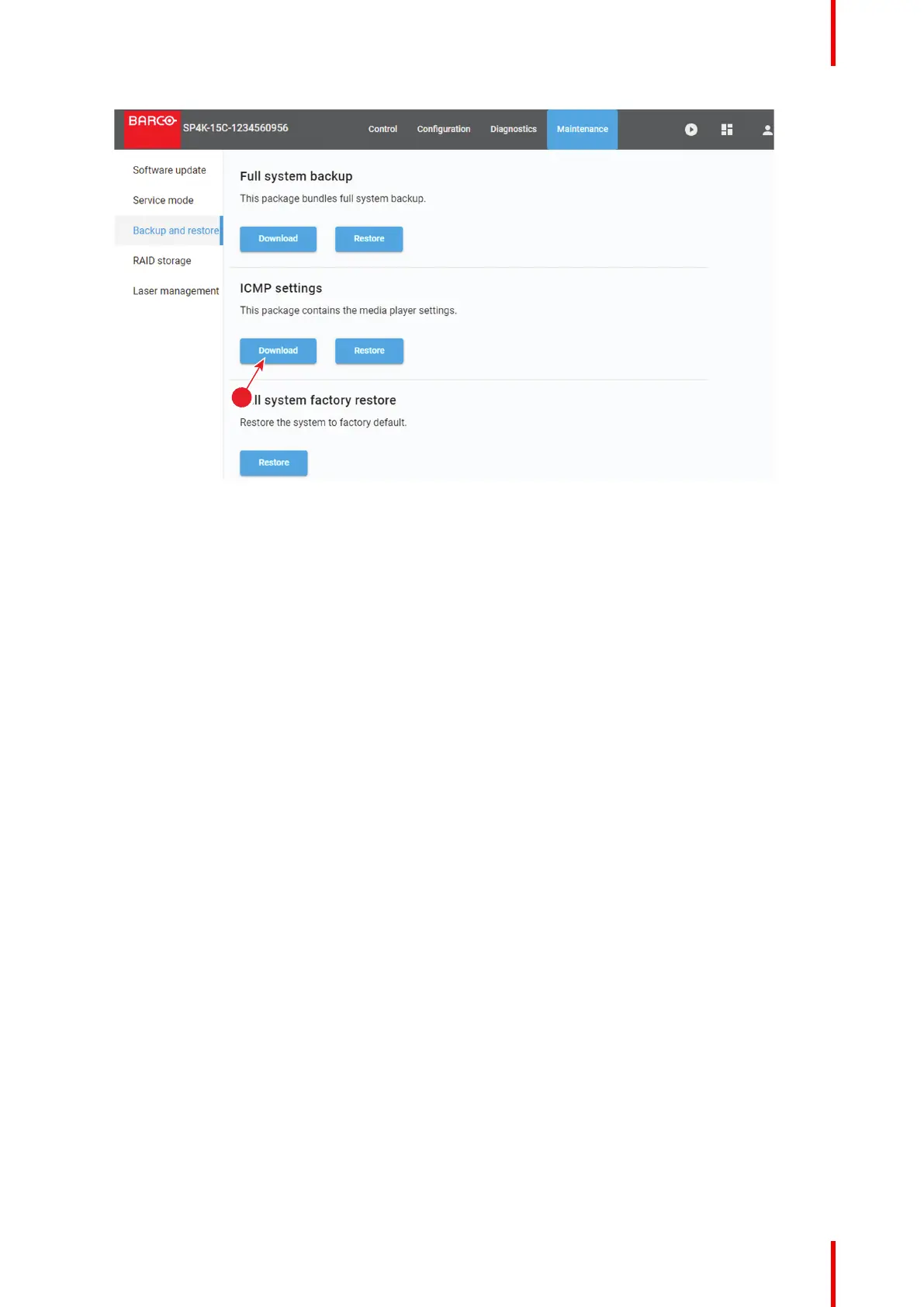

Image 17–12

A setting.xml file is created.

The file is stored on your local PC in your default download directory.

How to restore

1. While in Maintenance > Backup and restore, click Browse in the ICMP settings pane (reference 1).

Maintenance

Default Chapter5
- Table of Contents5
