Mounting
Instruction handbook b maXX 5000
Document No.: 5.09021.16
111
of 328
6
6.2.1 Drilling pattern
Use the drilling pattern to make the necessary drill holes/cutout sections.
NOTE!
Consider the minimum clearances for cooling when
making the drill holes.
All dimensions in millimeters [mm].
Further notes see ZDim
ensions– as from page 29 and ZCooling– as from page 56.
How to determine the required space in the control cabinet, see ZDimensions– as fr
om
page 29.
Tolerance 
specifications
Drill hole dimensioning ±0.2 mm
Dimensioning openings +1.0 mm
Relative tolerance of discretionary divisions ±0.1 mm
For air-cooled 
versions:
For BM50XX-S, BM51XX-S, BM53X
X-S only!
*: Relative tolerance of discretionary divisions: ±0.1 mm

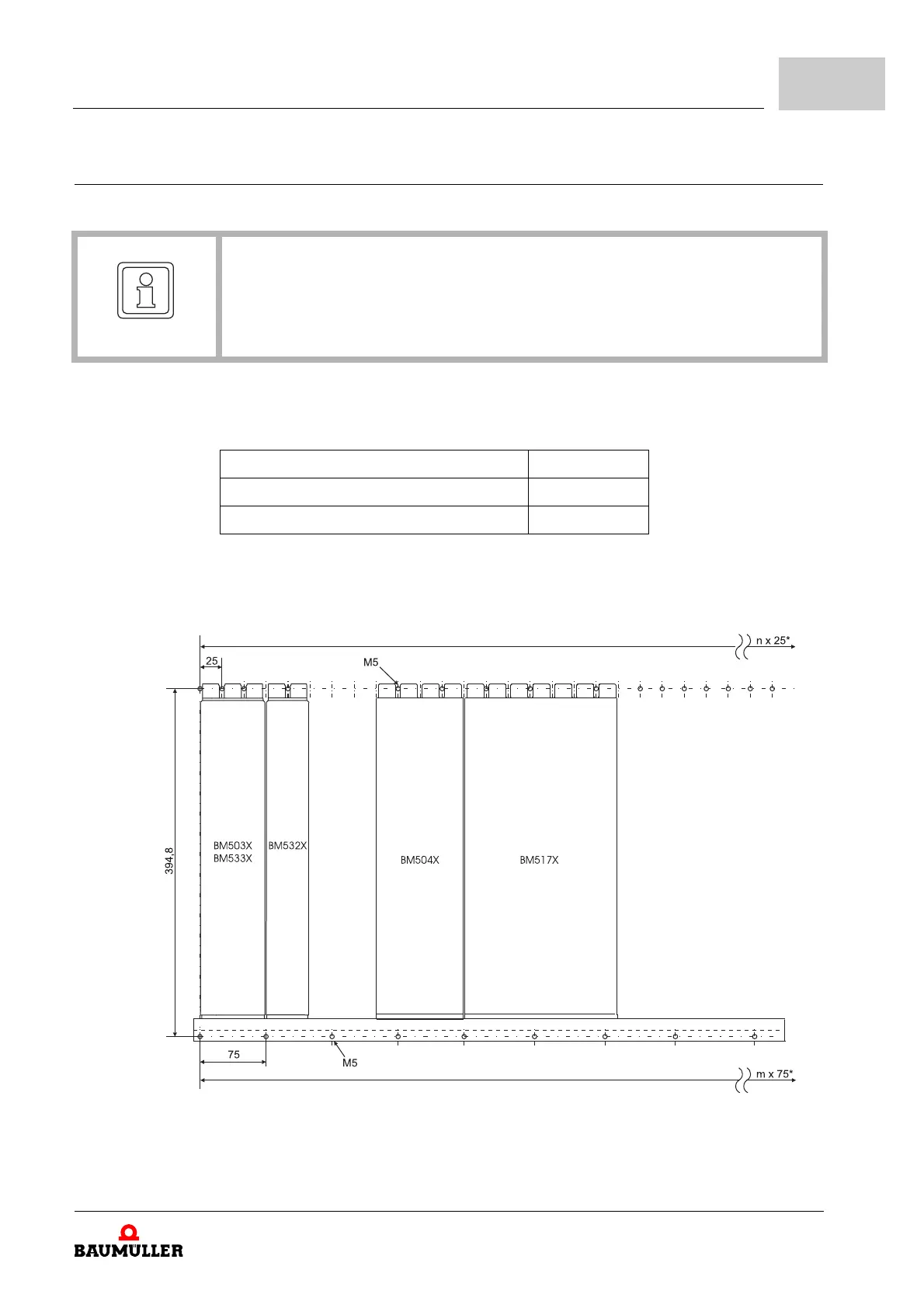

Figure 42: Drilling pattern with mounting rail for BM50XX-S, BM53XX-S, BM51XX-S
