Troubleshooting and Fault correction

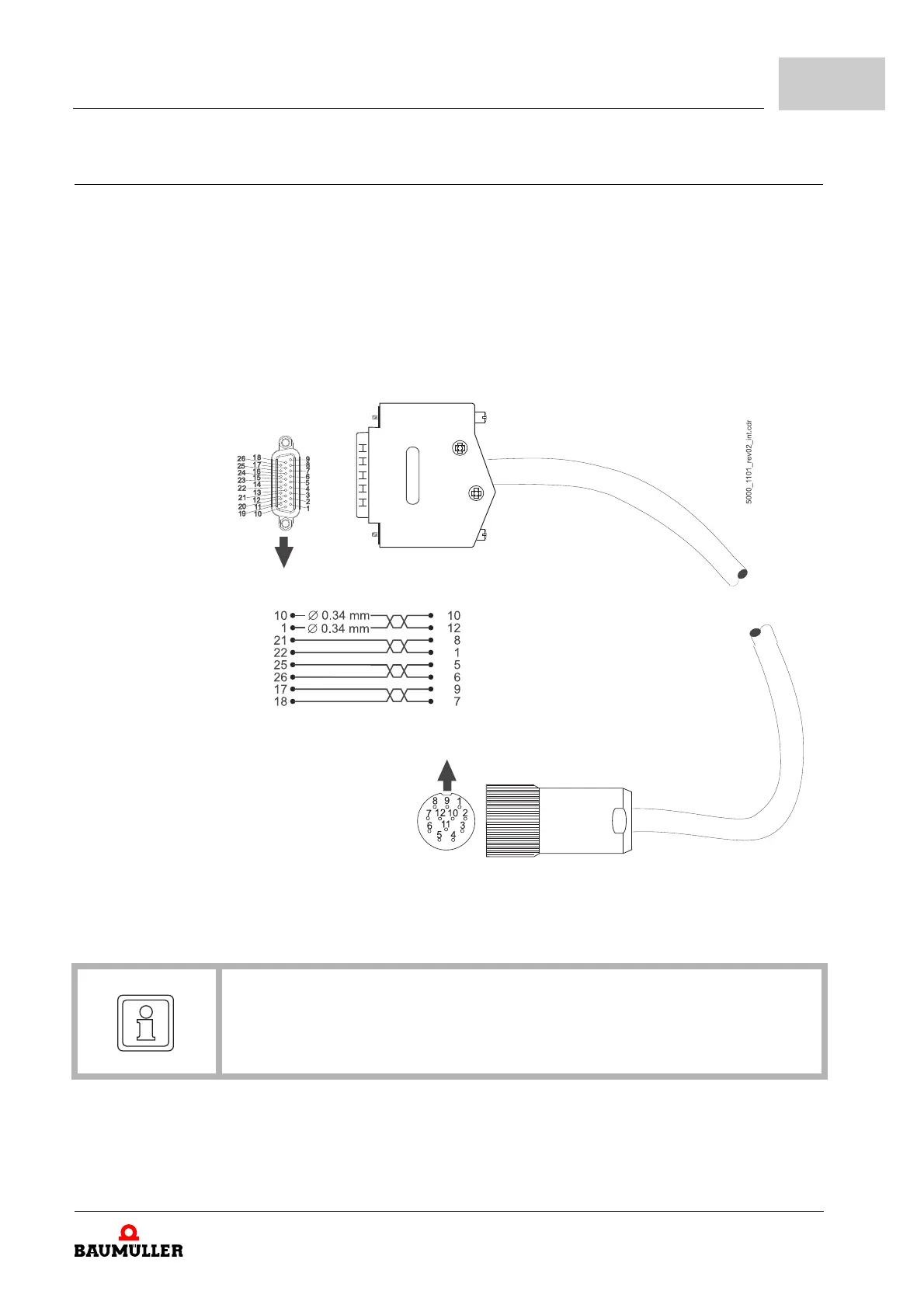

Instruction handbook bmaXX 5000
Document No.: 5.09021.19
253
of 346
10
10.3 Error detection
10.3.1 BM50XX error detection
The error state is signalized by the lighting up of the red LEDs H1 to H4 on the front side
of the housing.
The meaning of the individual LEDs is explained in ZDisplay and operating elements– as
from page 96 for devices without safety function and ZLED display BM5030 with safety
function– as from page 326 for devices with safety function.
10.3.2 BM51XX and BM53XX error detection
LED The error state is signalized by the lighting up of the red LED H14 or H24 on the front side
of the housing.
The meaning of the individual LEDs is explained in ZLED display controller– on page
103.
Essentially, the lowest red LEDs H14 and H24 „Malfunction“ are of significance here.
7-segment display In the status error the error numbers are shown in the display. Depending on the state of
bit No. 16 in parameter P135.1 (further information see parameter handbook bmaXX
5000) all error messages (with/without error reaction) or warnings are displayed.
The display of an error code starts therewith, that „F“ is displayed for 1.5 s. Then the four
characters of the error code are displayed. The separate characters are displayed for
about 0.8 s, interrupted by a short break. If there are other errors, these are displayed in
the same manner. The procedure is repeated as soon as all errors were displayed.
Example: Error 702 and 2418 are detected:
Figure 111: 7-segment display: errors and warnings
NOTE!
In case of warnings or errors without error reactions, the LEDs H14 or H24 blink
„Malfunction“. Only error messages with error reaction are signalized by constant
lighting up.
Start End Time
Error
display
