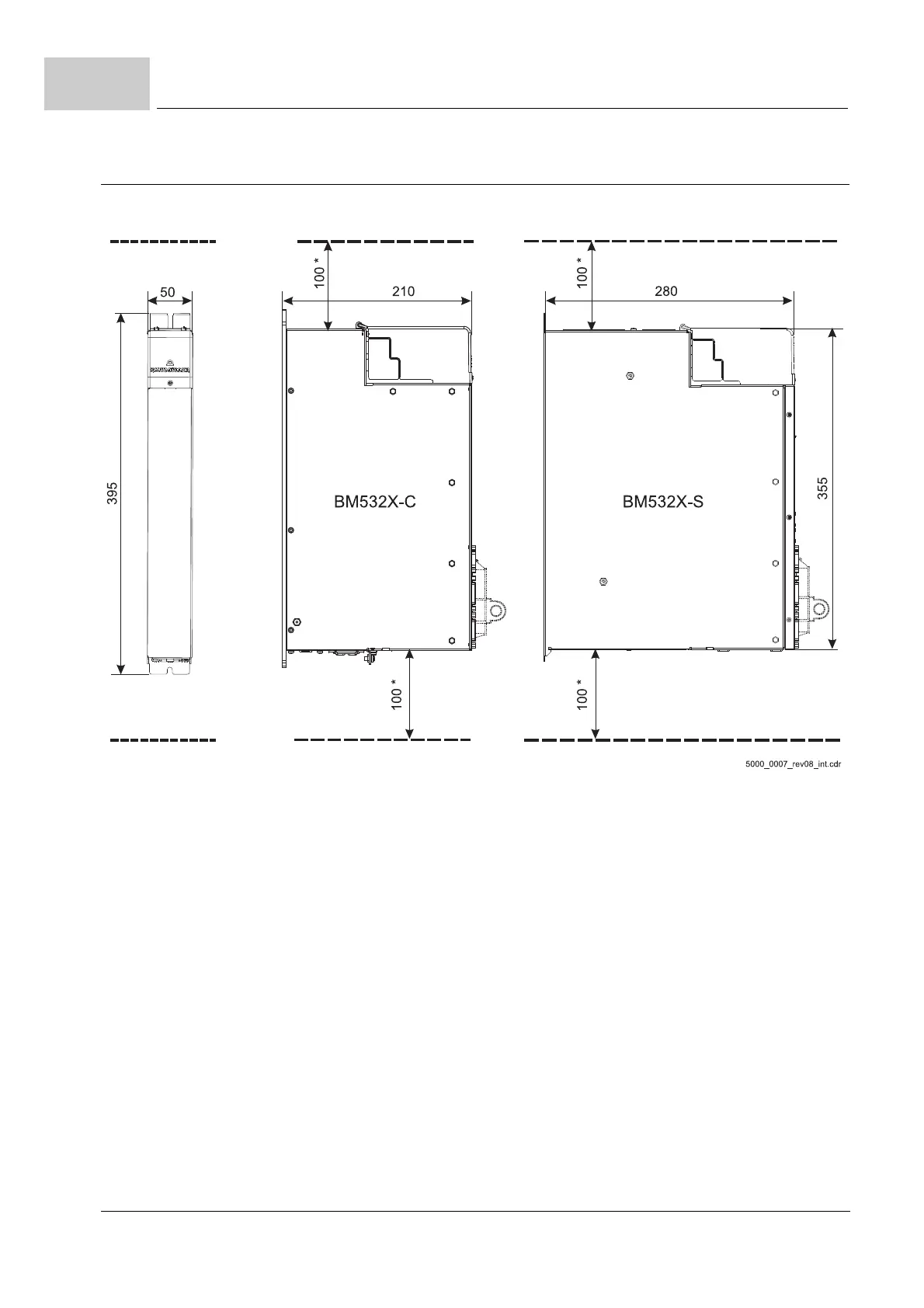

Baumuller b maXX 5000 - BM53 XX Dimensions; BM532 X-C;-S Dimensions

Dimensions
Instruction handbook bmaXX 5000
Document No.: 5.09021.19 Baumüller Nürnberg GmbH
36
of 346
3.1
3.1.5 BM519X dimensions
Figure 10: BM519X-S dimensions
*: Observe minimum clearance.
Please follow the notes for mounting and ZCooling– on page 58.
BM519X-S
