Brake resistors
Instruction handbook b maXX 5000
Document No.: 5.09021.16 Baumüller Nürnberg GmbH
268
of 328
11.3
11.3.1 Fixed tube resistors
Protection class: IP 20
Approval: UL
Resis-
tance
va
lue
Rated
ou
tput

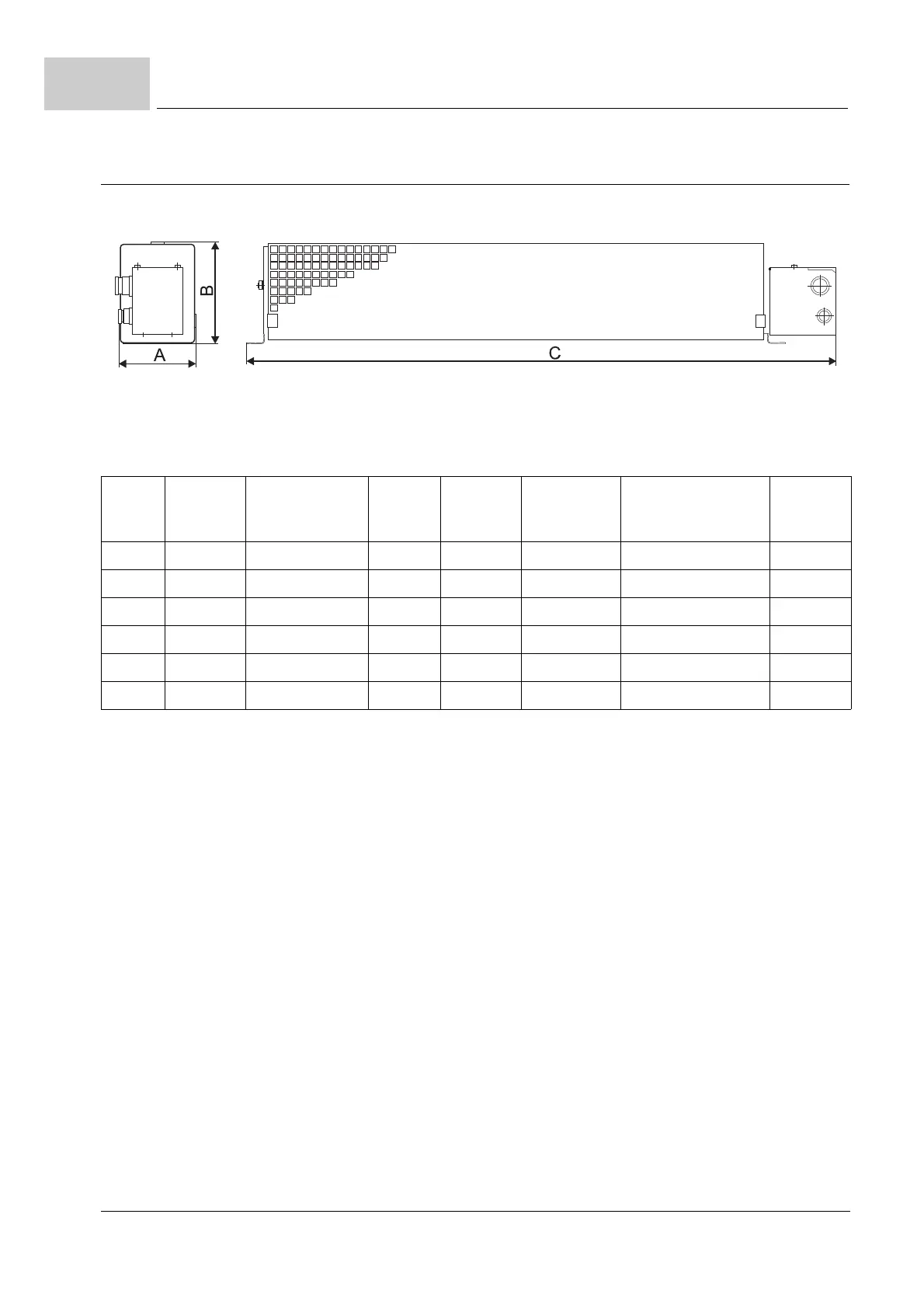

Dimensions
A x B x C
Weight Tempera-
ture
sw
itch
Electrical
conn
ection
Type Part
number
145  100 W 121 x 93 x 305 2 kg 210 °C 4 mm² BMR -130-100-20 353220
145  200 W 121 x 93 x 405 2.5 kg 220 °C 4 mm² BMR -130-200-20 353221
145  450 W 121 x 93 x 605 4.5 kg 240 °C 4 mm² BMR -130-450-20 353222
95  700 W 121 x 93 x 705 5.5 kg 260 °C 4 mm² BMR -86-700-20 353223
73  930 W 130 x 185 x 505 8.8 kg 260 °C 4 mm² BMR -65-930-20 353224
50 1400 W 130 x 182 x 710 10.8 kg 260 °C 4 mm² BMR -44-1400-20 353225
