Baumuller b maXX 5000 User Manual

Design and Operation
Instruction handbook b maXX 5000
Document No.: 5.09021.16
95
of 328
4
4.4.3 Display and operating elements BM53XX
X1 Service interface
H1
H2
7 segment display axis 1
7 segment display axis 2 (double axis unit)
Display controller state
Meaning refer to: Z7-
segment display controller– on page 96
LED
H11 - H14
H21 - H24

LED axis 1
LED axis 2 (double axis unit)
Meaning: refer to ZLED dis
play controller– on page 97.
Address switch
S1 - S4


Setting: refer to ZSetting
the IP address with address
switches– a
s from page 100.
LED
H31
H32
H41
H42
Fieldbus, depending on type 
(refer to ZType cod
e– as from page 84)
Meaning:
BM53XX-XXXX-XXXX-01XX
BM53XX-XXXX-XXXX-07XX
ZLE
D EtherCAT
®
.– on page 98
BM53XX-XXXX-XXXX-02XX
ZLE
D VARAN– on page 98
BM53XX-XXXX-XXXX-04XX
ZLE
D POWERLINK
®
.– on page 99

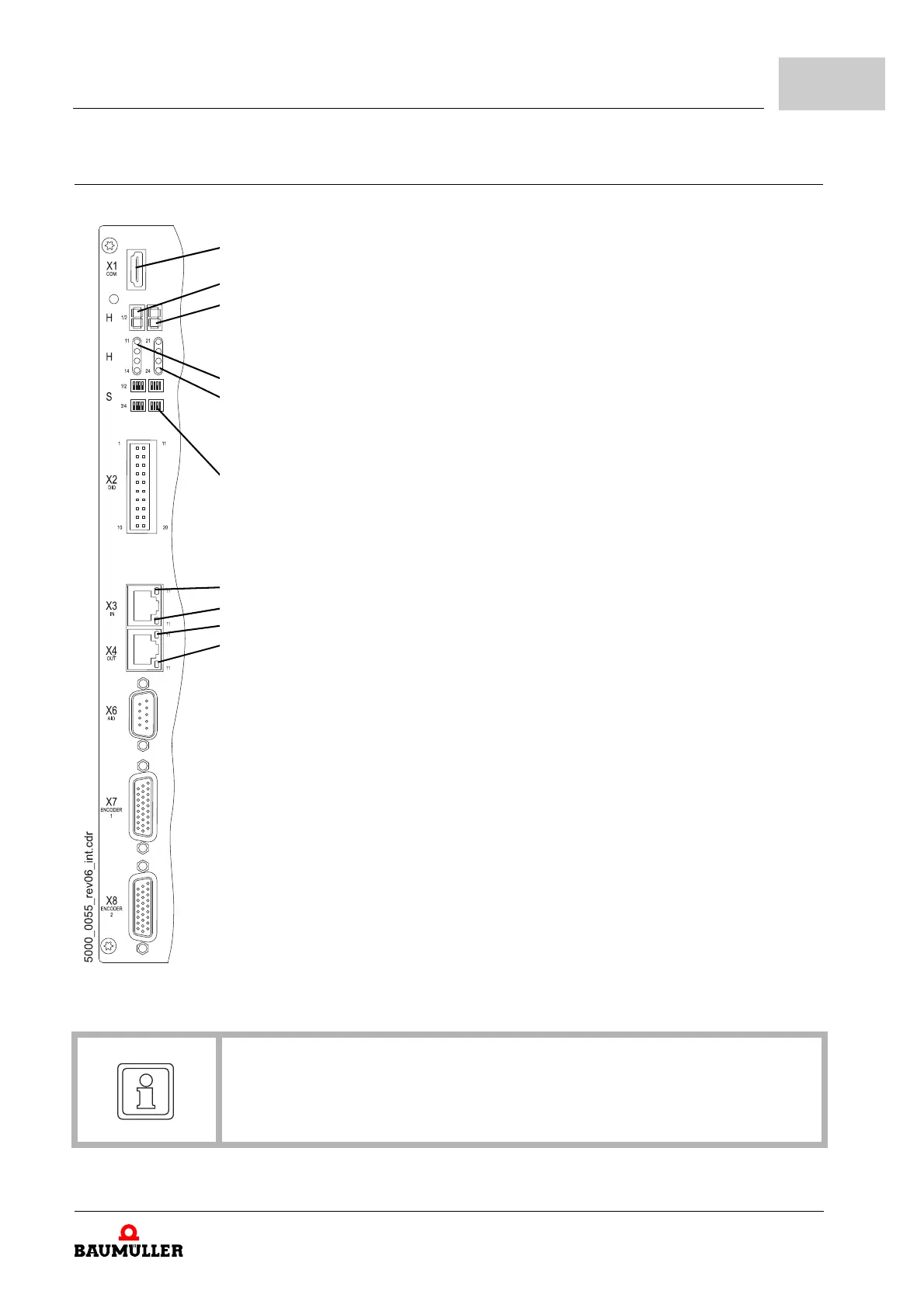

Figure 38: Display/operating elements controller BM53XX
NOTE!
Only the service cable BM5-K-USB-XXX is allowed to be used for the service inter-
face X1, refer to ZServic
e interface– on page 205 and ZService interface cable– on
page 250.
