Baumuller b maXX 5000 - Electrical Connections of the Double Axis BM5331, BM5332, BM5333

Installation
Instruction handbook bmaXX 5000
Document No.: 5.09021.19
165
of 346
7

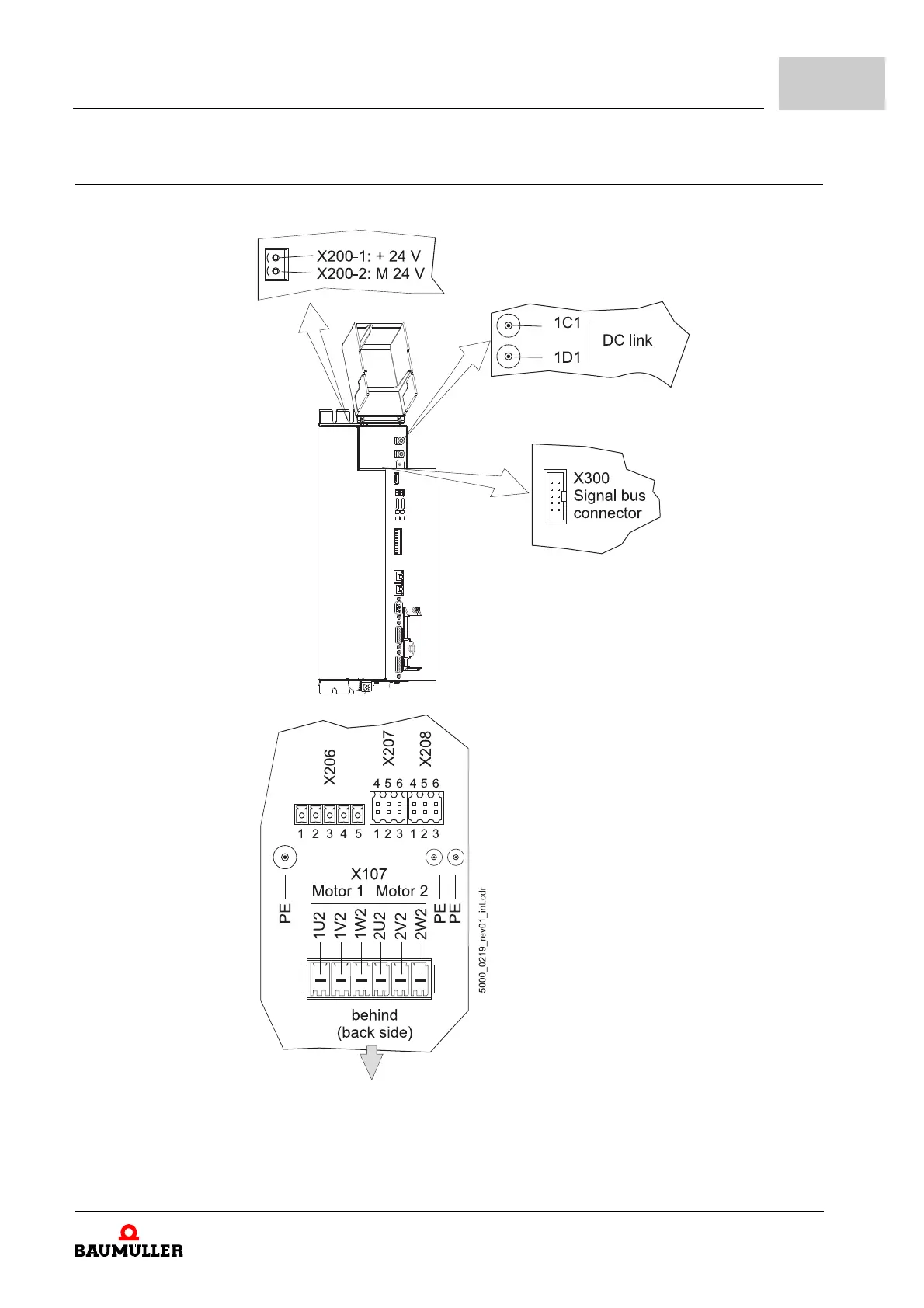

Figure 81: Electrical connections of the BM507X without safety function
Inhibit input
Fehler
M24 V
Inhibit Input
Quick discharge DC link
Reset
Error
Ready-to-operate
voltage
Signal bus
connector
NOTICE:
Connection for
external brake
resistor, only.
Do not connect
an additional
capacitance.
DC link
Power supply
External
brake
resistor
