Cabling
Instruction handbook b maXX 5000
Document No.: 5.09021.16 Baumüller Nürnberg GmbH
256
of 328
11.1
11.1.9.4 Connecting cable for encoder with EnDat
®
2.2
The connecting cable is available as accessory part with M12 or speedtec
®
M23 from
Baumüller Nürnberg GmbH.
M12 Follow the instructions below if a self-
made cable with M12 is to be used:
1 Utilize the following materials:
m Ca
ble: 4x0,38 + 1x(4x0,14)
m Hig
h-density D-sub connector: 26-pin, male
m Ro
und connector: 8-pin M12, female (e.g. from Interconnectron)
2 Fully adjoin the cable shield with the housing
of the round connector and with the
shielding of the D-sub connector.

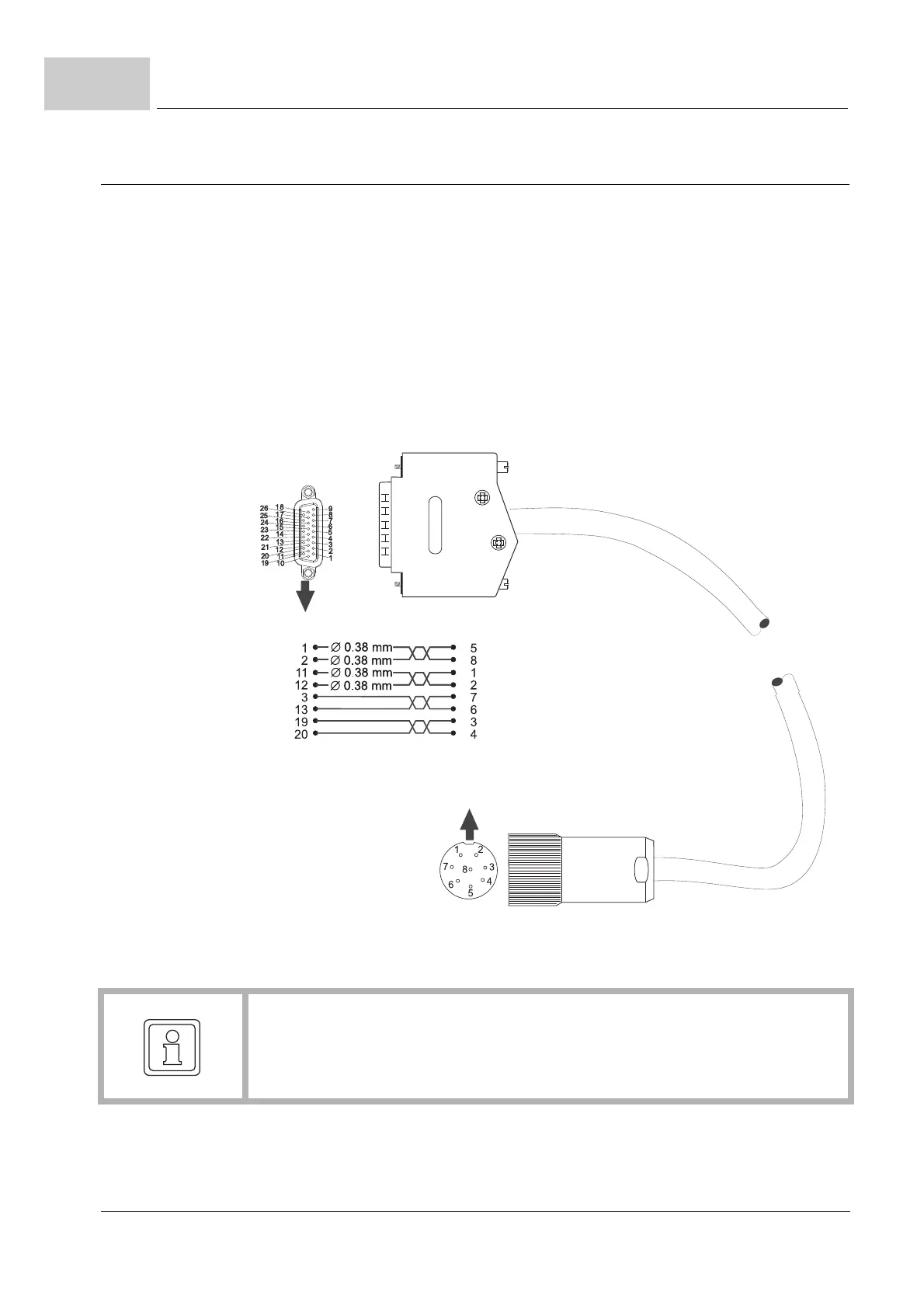

Figure 111: Connecting cable for encoder with EnDat
®
2.2 M12
NOTE
The connecting cable must be made according to the figure shown above! 
If there is a different pin assignment, the cable is not functionally operable and could
le
ad to defects, both in the encoder module and the encoder!
