Baumuller b maXX 5000 - BM519 X Connections

Installation
Instruction handbook bmaXX 5000
Document No.: 5.09021.19
159
of 346
7
7.13.3.3 Connection diagram BM537X

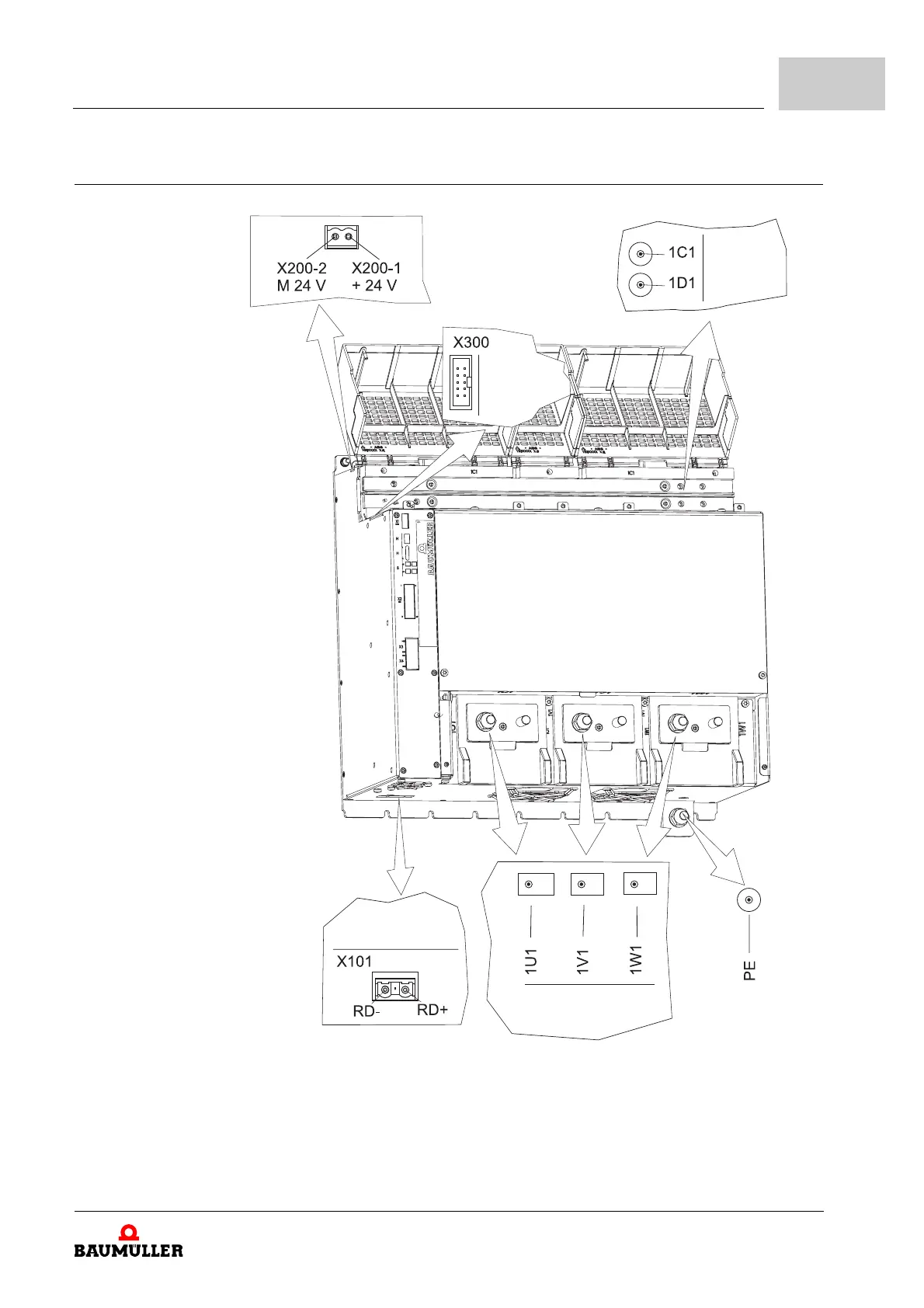

Figure 77: Connection diagram single axis units BM537X
Depends on type
Ready-to-operate
Ready-to-operate
Digital output 1
Digital output 2
Digital output 3
Digital output 4
Depends on type
n.c.
n.c.
+24V
M24V
Digital input 1
Digital input 2
Digital input 3
Digital input 4
Digital input 5
Digital input 6
Digital input 7
Digital input 8 / pulse enable
