Installation
Instruction handbook b maXX 5000
Document No.: 5.09021.16
157
of 328
7
7.14 Electrical connections
NOTE!
Description of BM5030 with safety function BM
5030-XX2X-...
see ZC.
6 Electrical connections BM5030 with safety function– as from page 310.
7.14.1 Electrical connections of the BM50XX-XX0X-... without safety function
Error
External brake resistor
NOTICE:
Connection for
external brake
resistor, only.
Do not connect
an additional
capacitance.

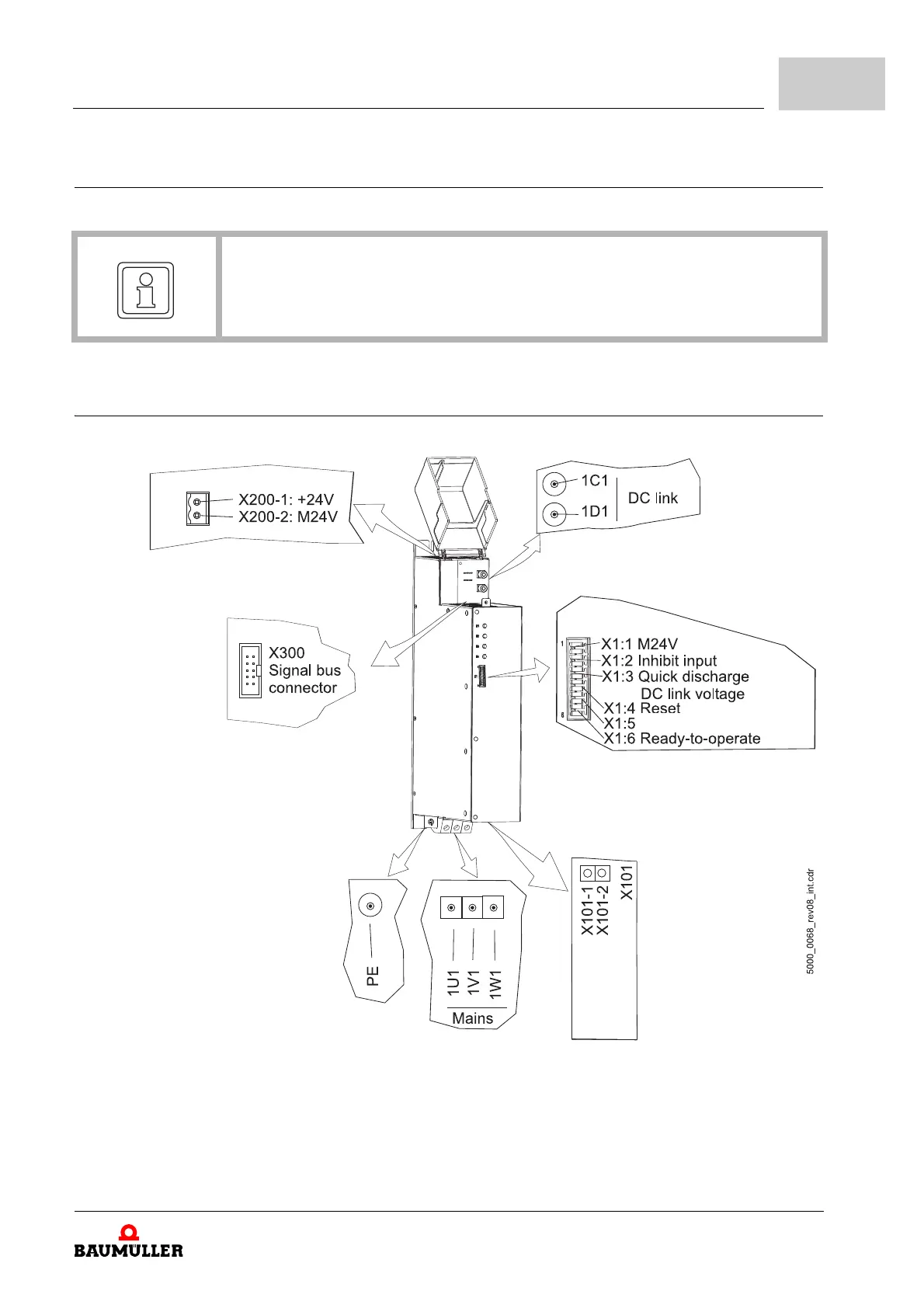

Figure 74: Electrical connections of the BM50XX without safety function
