Preparing for mounting
Instruction handbook b maXX 5000
Document No.: 5.09021.16 Baumüller Nürnberg GmbH
112
of 328
6.2
For all 
versions:
*: Relative tolerance of discretionary divisions: ±0.1 mm

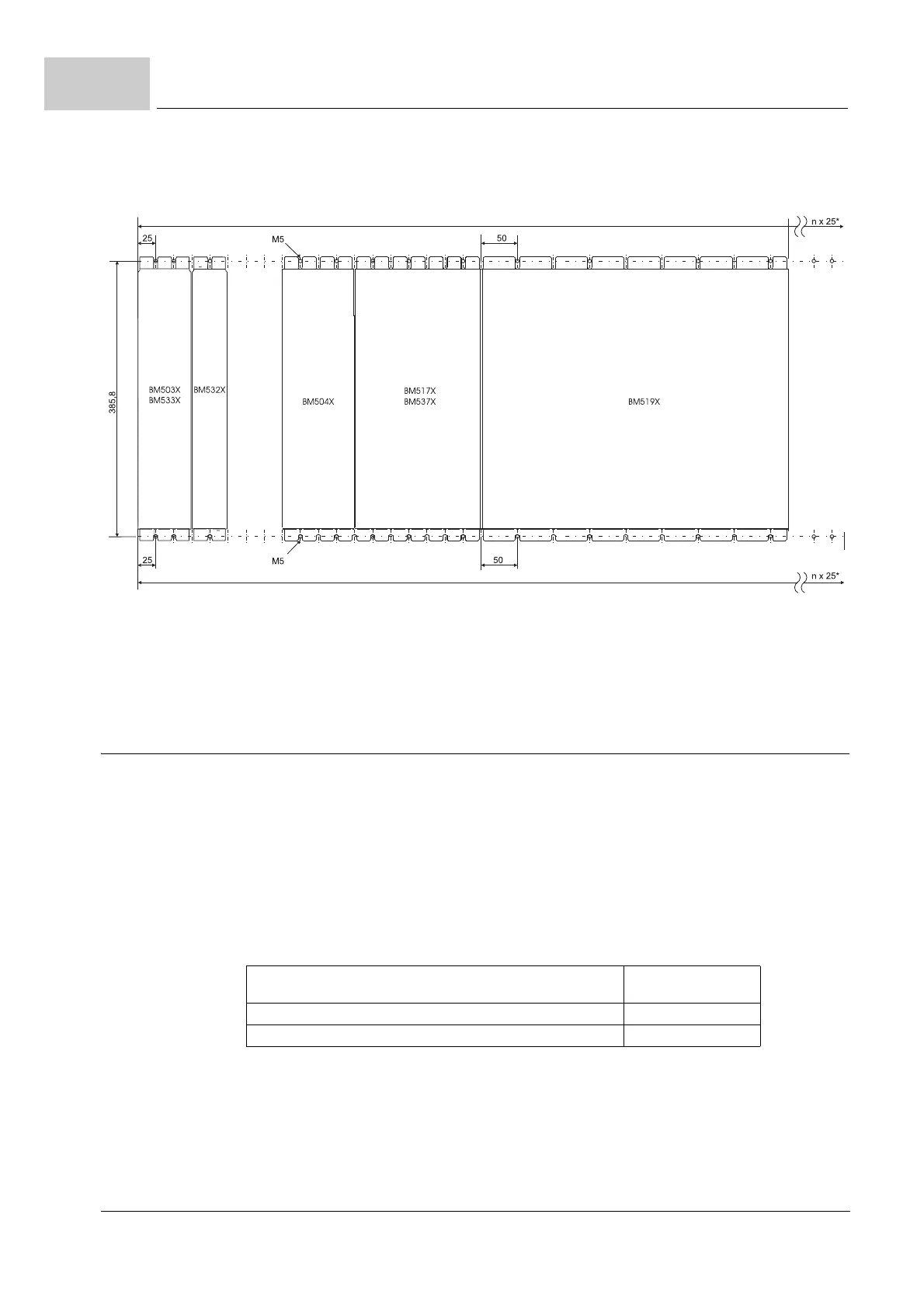

Figure 43: Drilling pattern without mounting rail for all versions
6.2.2 Mechanical data of the mounting plate for cold plate
The cooling version cold plate is a particular efficient cooling alternative. The heat dissi-
pation is done via 2 contact surfaces. Th
e first one is the mounting platform within the con-
trol cabinet or on the machine base, the other is the co
ld plate on the device’s back. High
requirements e.g. to surface roughness and evenness for this surface are specified, to
ensure an optimal heat flow. Already a slight damage/pollution of the surface can cause
a significant deterioration in heat dissipation to the mounting plate.
For this reason while handle the units protect the se
nsitive function surface to avoid dam-
age.
Surface flatness
(across the entire surface)
0.05 mm
Surface roughness Ra 1.2 µm
Material of the plate (recommendation) AlMgSi 0.5
