Baumuller b maXX 5000 User Manual

Display and operating elements
Instruction handbook b maXX 5000
Document No.: 5.09021.16 Baumüller Nürnberg GmbH
100
of 328
4.4

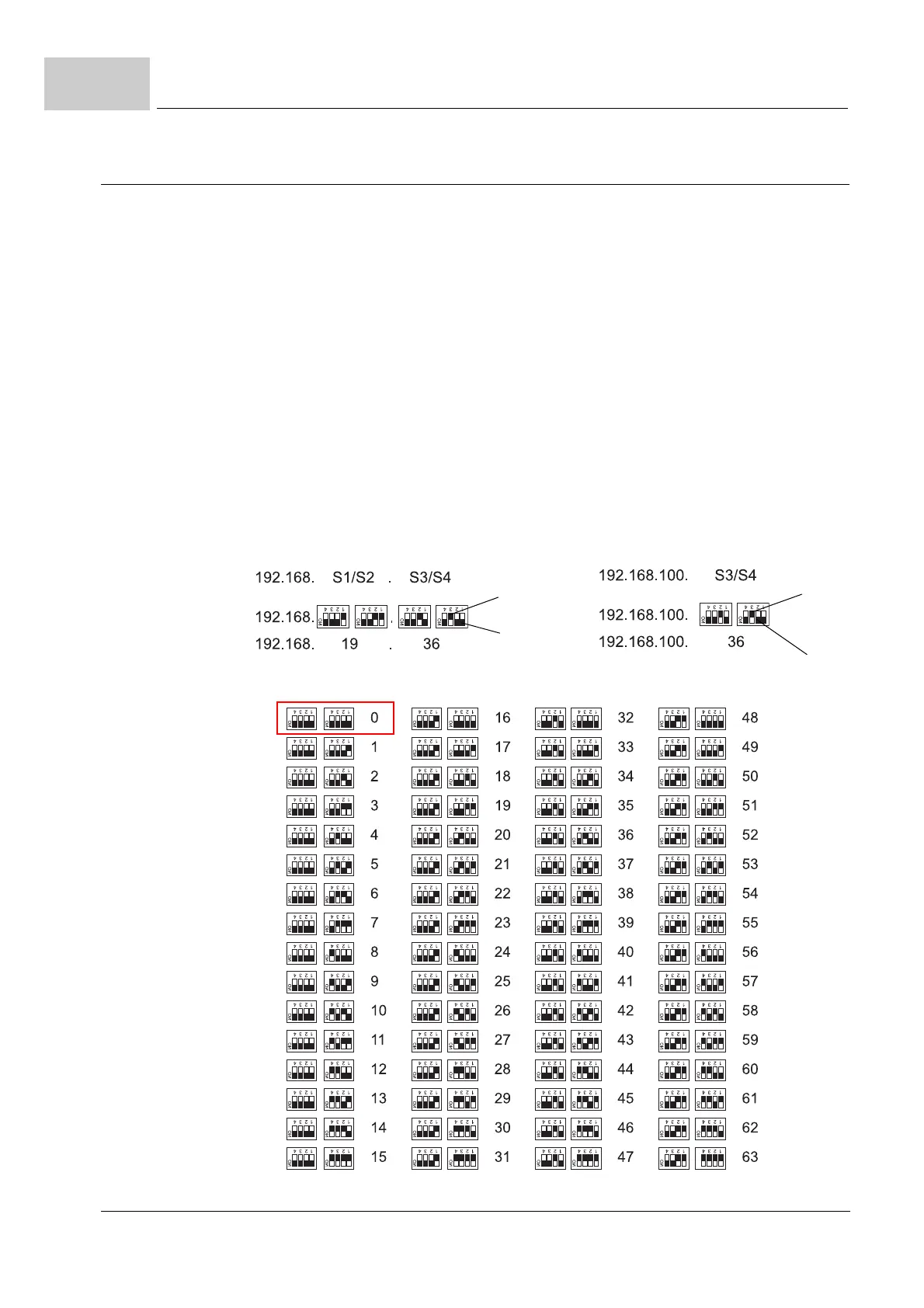

4.4.5 Setting the IP address with address switches
EtherCAT
®
CoE
EtherCAT
®
SoE
BM5XXX-XXXX-XXXX-01XX
BM5XXX-XXXX-XXXX-07XX
VARAN BM5XXX-XXXX-XXXX-02XX
POWERLINK
®
BM5XXX-XXXX-XXXX-04XX
IP-Address 
S1 to S4
The IP address of the controller consists of 32
bits or 4 bytes (e.g. 192.168.125.203).
Controller with EtherCAT
®
or VARAN profile: Both of the first bytes are set with the base
address (192.168.) at the factory. Both of the last bytes are set by means of the address
switches S1, S2, S3 and S4. In the process, S1 and S2 as well as S3 and S4 each rep-
resent an 8 bit value.
Controller with POWERLINK
®
-profile: The first three bytes are set with the base address
(192.168.100) at the factory. The last byte is set by means of the address switches S3
and S4. In the process, S3 and S4 each represent an 8 bit value.
The IP address 192.168.0.0 or 192.168.100.0 is not permitted/reserved.
For information on changing the base address, refer to the parameter manual.
EtherCAT
®
or VARAN profile:
POWERLINK
®
profile
Switch setting up
Switch setting down
Switch setting up
Switch setting down
