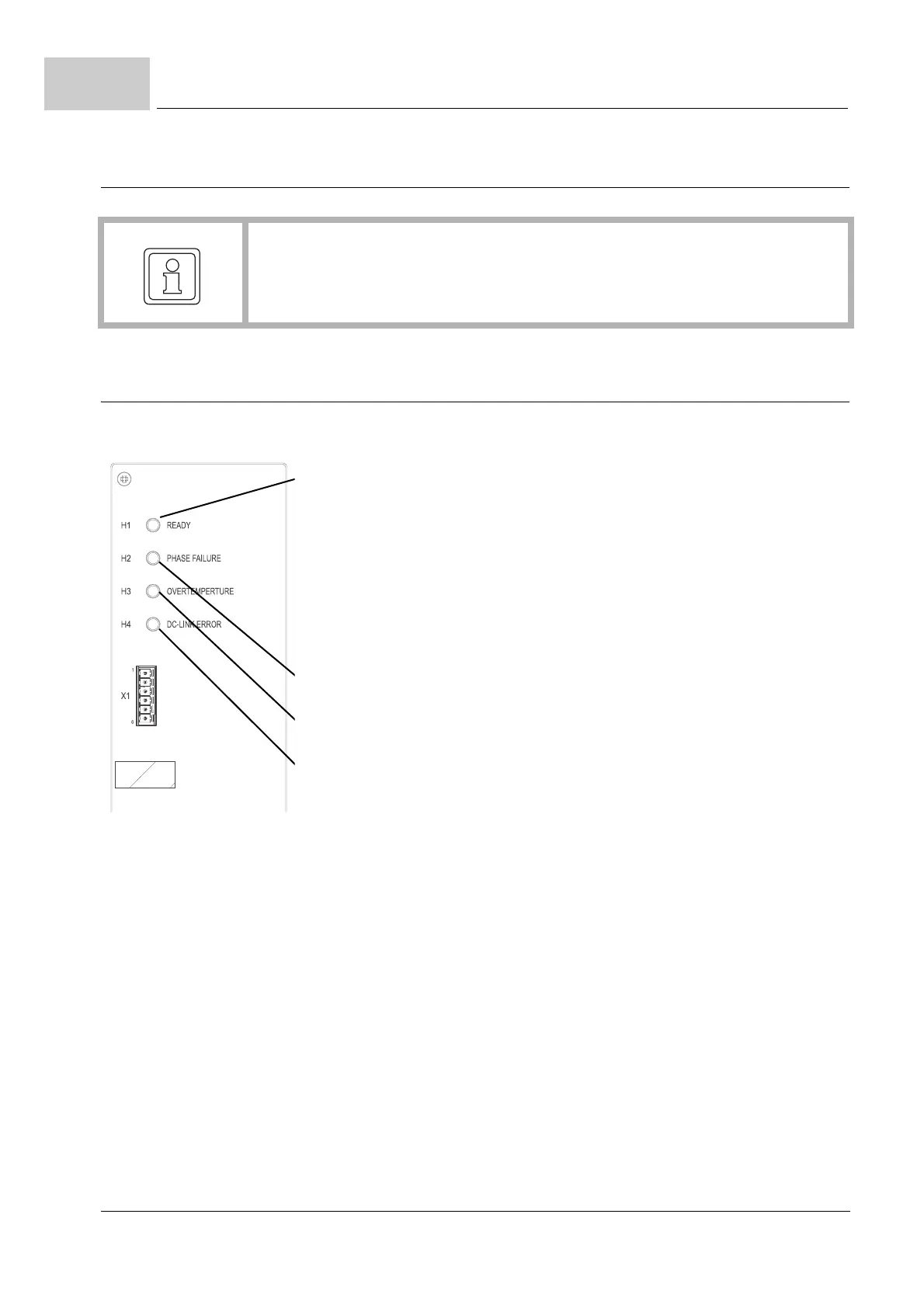

Baumuller b maXX 5000 - Display and Operating Elements; LED Display BM5 XXX-XX0 X

Identification of the device
Instruction handbook bmaXX 5000
Document No.: 5.09021.19 Baumüller Nürnberg GmbH
90
of 346
4.2
4.2.3 Type code
The type code has the format: BM5XXX - XXXX - XXXX - XXXX - XX - XXXX.
The type code is explained in the following table.
BM5
XXX-XXXX-XXXX-XXXX-XX-XXXX Device generation
BM5X
XX-XXXX-XXXX-XXXX-XX-XXXX Device design
0: Mains rectifier
1: Active mains rectifier
3: Axis unit safety
5: Basic unit/power module safety
6: Basic unit/power module safety, optimized for peak current
7: Basic unit/power module safety, optimized for rated current, water-cooled
8: Multi-axis controller safety
BM5XXX-XXXX-XXXX-XXXX-XX-XXXX Housing size
1 to 9,
refer to ZDimensions– as from page 29.
BM5XXX-XXXX-XXXX-XXXX-XX-XXXX Current grading (output rated current)
2 to 8 (current value dependent on the housing size),
refer to ZElectrical data– as from page 60.
BM5XXX-XXXX-XXXX-XXXX-XX-XXXX Type of cooling
S: Air-cooled with air supply and with air outlet in the control cabinet
A: Air-cooled with air supply and with air outlet outside the control cabinet
Z: Water-cooled with water cooler in the control cabinet
F: Water-cooled with water cooler outside the control cabinet
C: Cold plate cooling via mounting wall of the control cabinet
BM5XXX-XXXX-XXXX-XXXX-XX-XXXX Type of power supply system
T: BM50XX, BM51XX: grounded TN or TT systems
I: BM50XX: IT systems, grounded TN or TT systems
G: BM50XX: Grounded delta systems, IT systems, grounded TN or TT systems
R: BM50XX with charge resistor: Grounded TN or TT systems
S: BM50XX with charge resistor: IT systems, grounded TN or TT systems
W: BM50XX with charge resistor: Grounded delta, IT systems,
grounded TN or TT systems
