C.4 LED display BM5030 with safety function
BM5030-XX2X-...
LED
H1
READY - Mains rectifier unit ready-to-operate:
green:
Power supply and DC link voltage available, internally
OK
red:
Power supply failure - automatically restart when power
supply returns.
blinking red: Power supply
failure longer than 10 s - restart after
Power supply return has to be acknowledged (X1:4). 
Refer to ZErr
or acknowledgment of BM50XX– on page
238)
LED
H2
PHASE FAILURE
red:
Phase failure
LED
H3
OVERTEMPERATURE
red:
Overtemperature
LED
H4
DC-LINK ERROR
red:
DC link error:
U
DC link
overvoltage or 
U
DC link
overcurrent or
Inhibit input active
LED
H5
LED
H6
STO POWER
green:U
DC
is available
orange:U
DC
is not ready
red:
Error
STO STATUS
green:
Ready-to-operate
orange:U
DC link
charging procedure, 
red:S
TO error

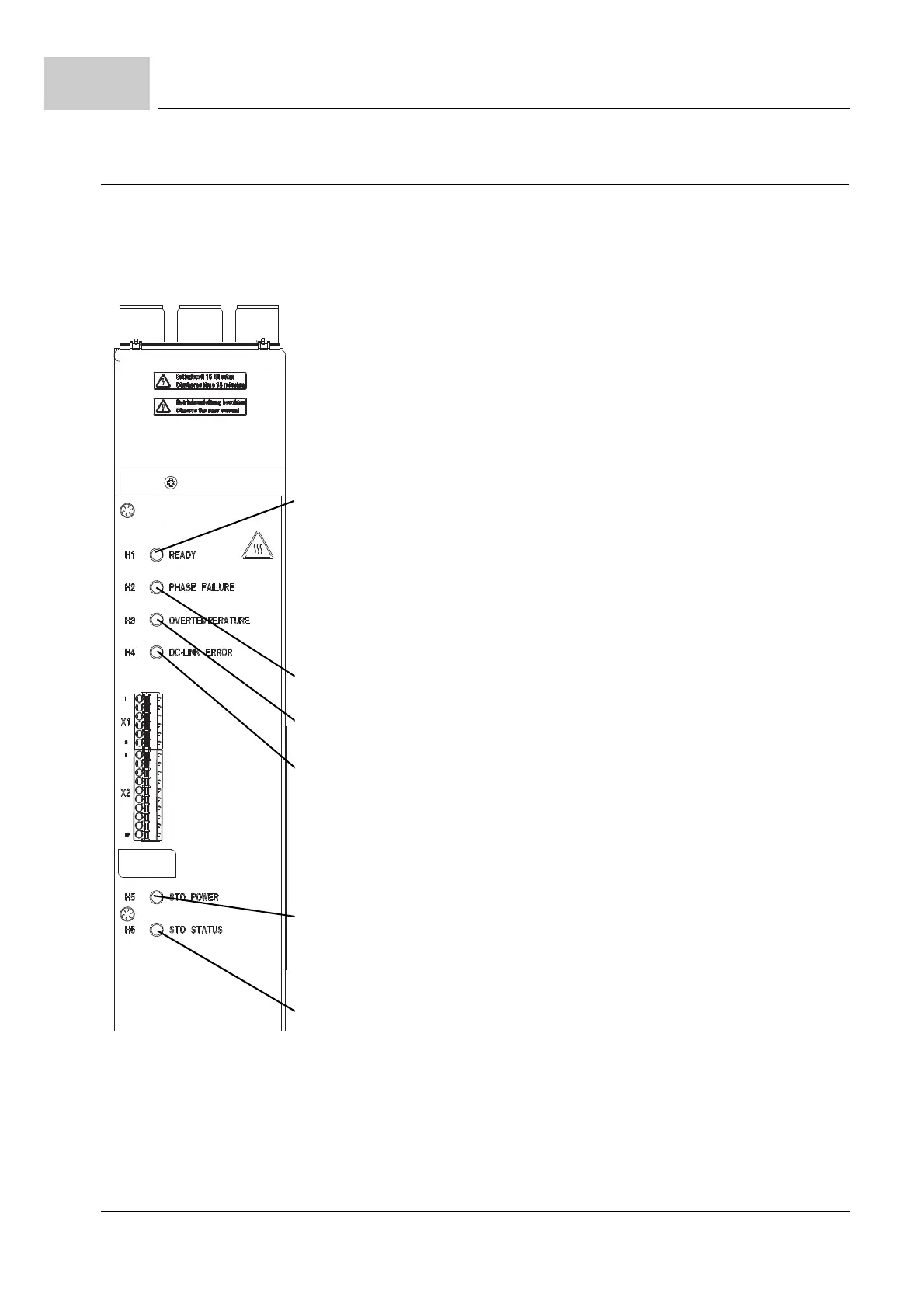

Figure 127: Display/operating elements BM5030-XX2X-...
