Baumuller b maXX 5000 User Manual

Connection diagrams
Instruction handbook b maXX 5000
Document No.: 5.09021.16 Baumüller Nürnberg GmbH
154
of 328
7.13
7.13.4 Connection diagram for the double axis unit
7.13.4.1 Connection diagram BM5323, BM5325
Depends on type
Ready-to-operate 1
Ready-to-operate 1
Digital output 1
Digital output 2
Digital output 3
Digital output 4
Depends on type
Ready-to-operate 2
Ready-to-operate 2
+24V
M24V
Digital input 1
Digital input 2
Digital input 3
Digital input 4
Digital input 5
Digital input 6
Digital input 7 / pulse enable 2
Digital input 8 / pulse enable 1

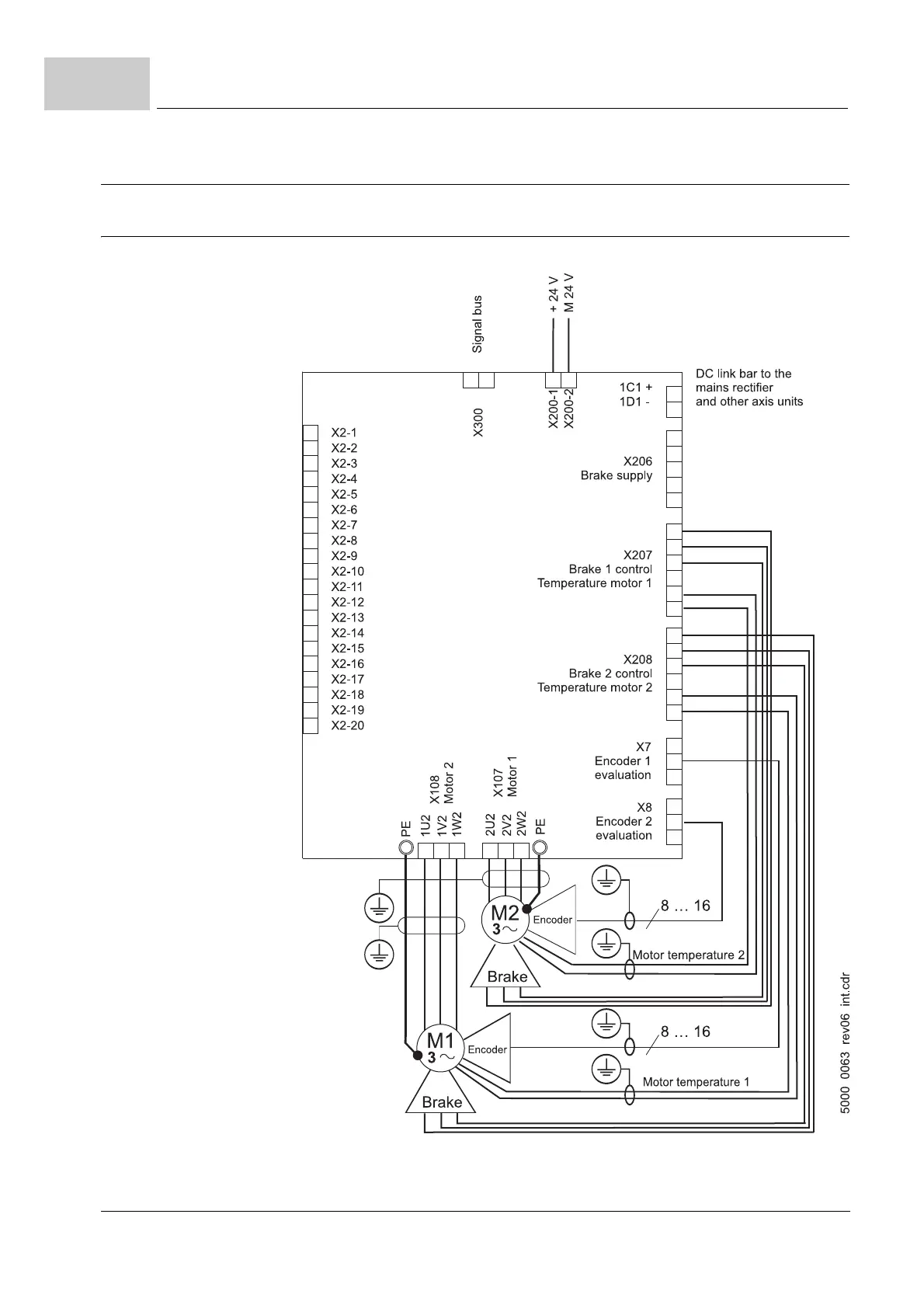

Figure 72: Connection diagram for the double axis unit BM5323, BM5325
