6.3.2 Mounting without mounting rail
Push the device from below beneath the upper fastening bolts (1). Then, tilt the device on
the mounting plate (2) and slide into the fastening bolts (3). Finally, tighten all fastening
and grounding bolts (4).

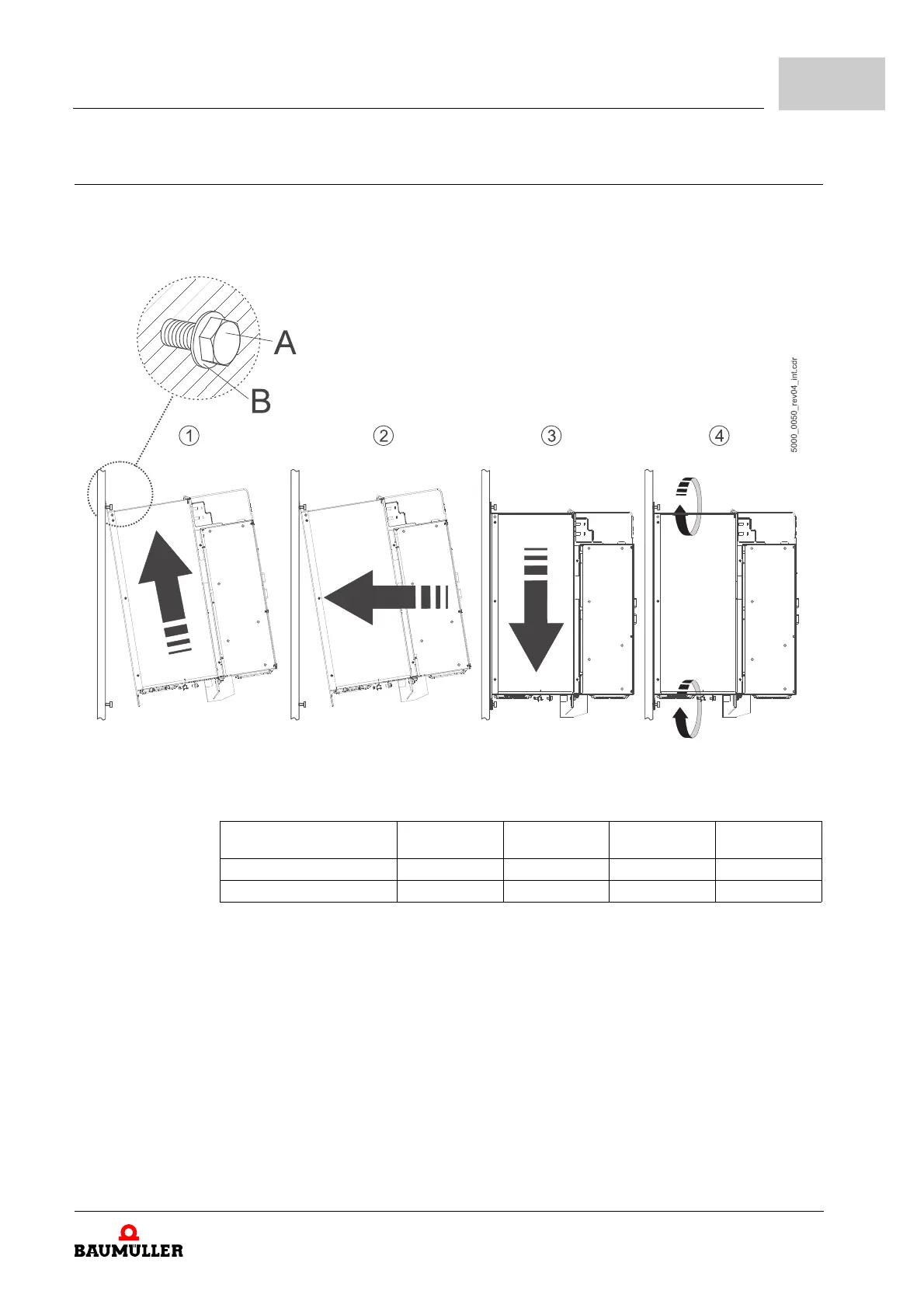

Image 45: Mounting instructions for the BM51XX and BM53XX, without mounting rail
Device BM50XX BM517X
BM537X
BM519X BM532X
BM533X
A - screw 4 x M5 6 x M5 8 x M5 4 x M5
B - washers 4 x (5.3 x 10) 6 x (5.3 x 10) 8 x (5.3 x 10) 4 x (5.3 x 10)
