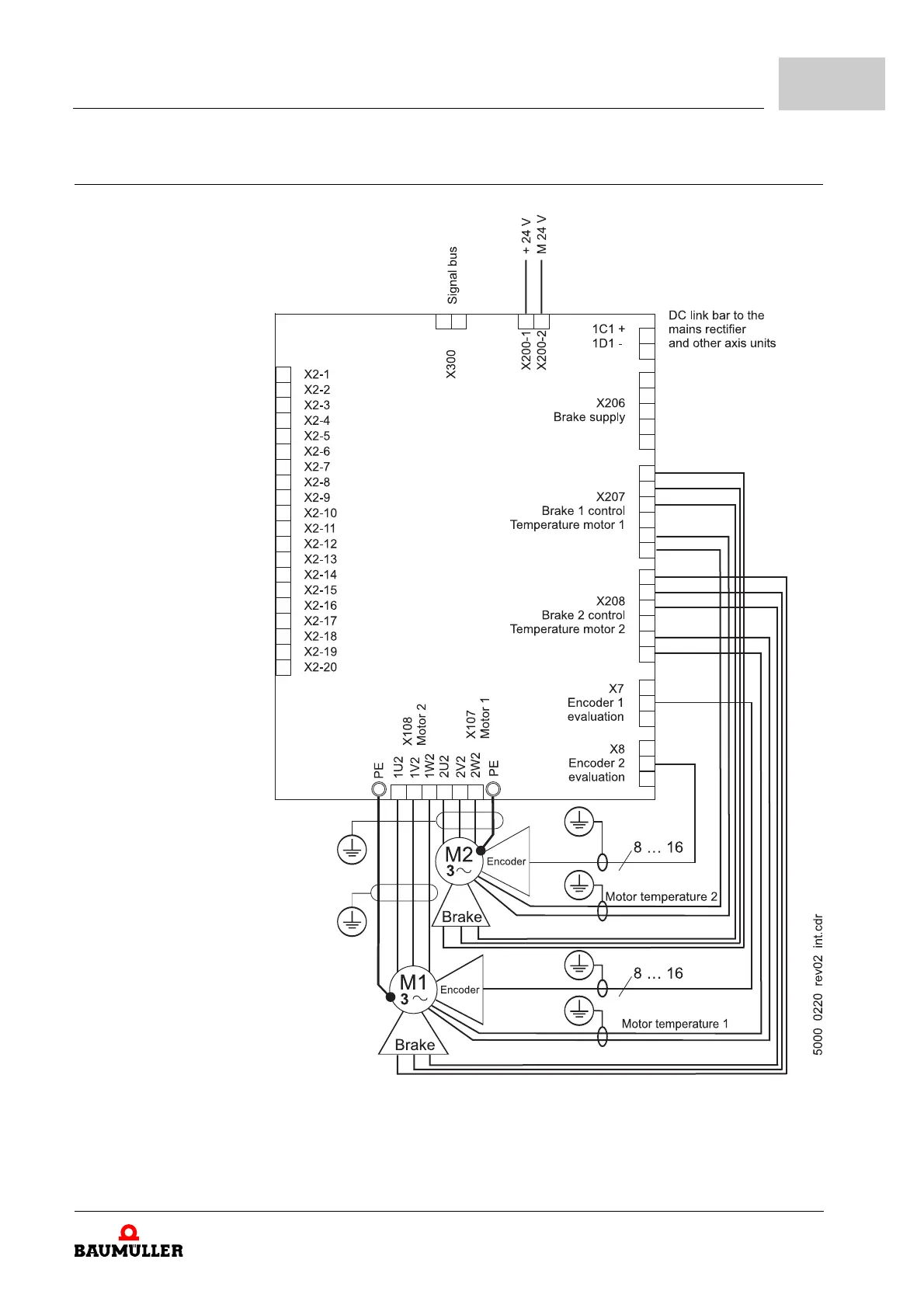

Baumuller b maXX 5000 - Connection Diagram BM5331, BM5332, BM5333

Installation
Instruction handbook bmaXX 5000
Document No.: 5.09021.19
155
of 346
7
7.13.2.2 Connection proposal BM51XX pulse enable control
Figure 74: Connection proposal BM51XX pulse enable control
NOTE!
The user must enable pulses intentionally, to recharge and enable the active mains
unit after an error or after quick discharge, when using this connection proposal.
