Connection diagram BM5030 with safety function
Instruction handbook b maXX 5000
Document No.: 5.09021.16 Baumüller Nürnberg GmbH
308
of 328
C.5
C.5 Connection diagram BM5030 with safety function
BM5030-XX20 A normally open contact is expected on the inhibit input.
DC link connection
to further devices
Connection for
STO function
Power supply
M24V
Inhibit input +24V
nc
Reset +24V
Error
Ready-to-operate
Connection for additional
DC link capacitance connected
upstream STO,
NOTICE:
Pay attention to the max.
connectable DC link
capacitance connected
downstream STO,
see Technical Data.
e.g. BM5-CAP

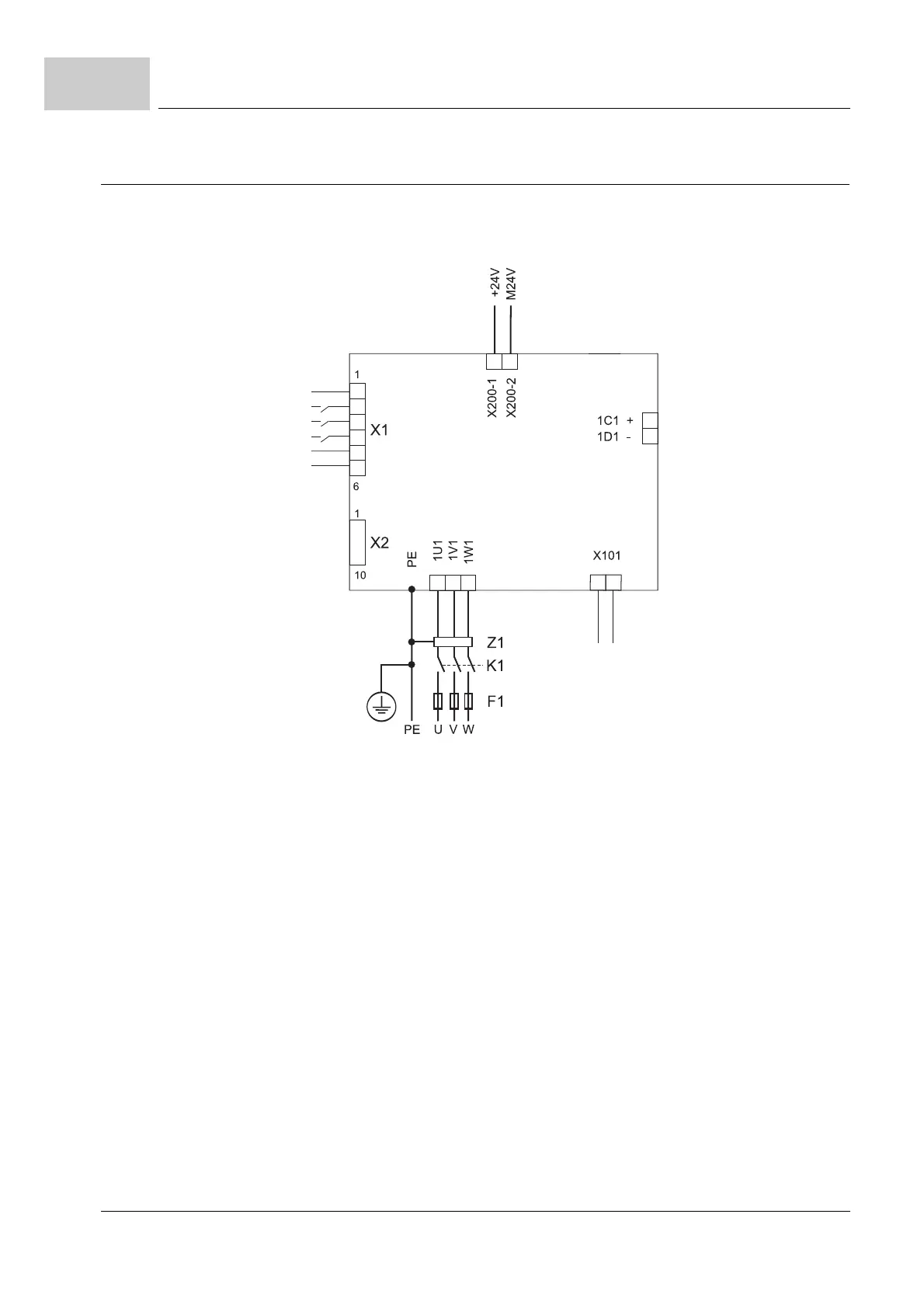

Figure 128: Connection diagram BM5030-XX20-...
