Baumuller b maXX 5000 User Manual

BM5030 with Safety Function
Instruction handbook b maXX 5000
Document No.: 5.09021.16
309
of 328
B
BM50XX-XX21 A normally closed contact is expected on the inhibit input.
Power supply
M24V
Inhibit input +24V
nc
Reset +24V
Error
Ready-to-operate
DC link connection
to further devices
Connection for
STO function
NOTICE:
Pay attention to the max.
connectable DC link
capacitance connected
downstream STO,
see Technical Data.
Connection for additional
DC link capacitance connected
upstream STO,
e.g. BM5-CAP

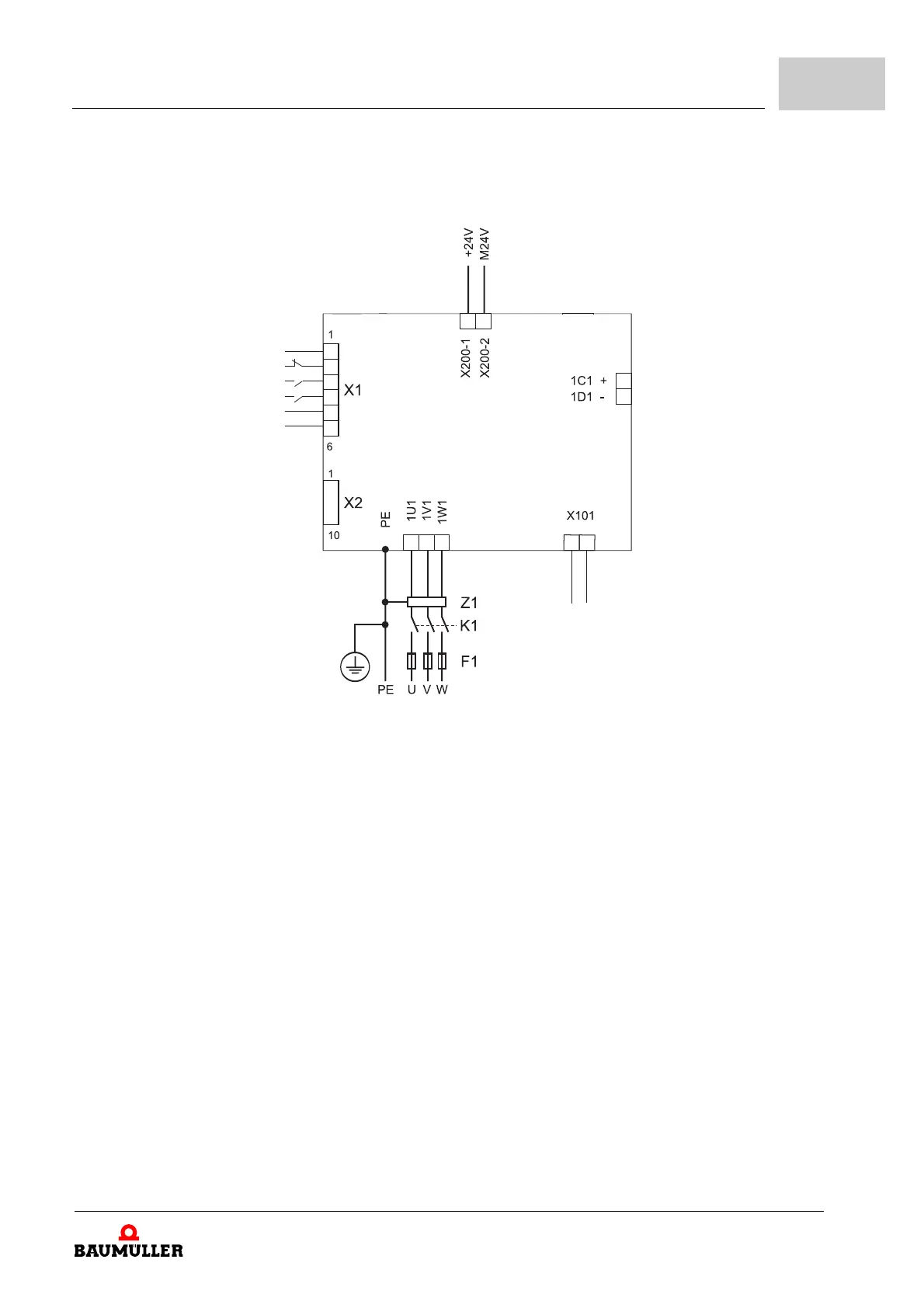

Figure 129: Connection diagram BM5030-XX21-...
1C1, 1D1 Connections for the DC link
PE Power supply PE-connection
1U1, 1V1, 1W1 Power supply connection
F1 Fuses (cable + device)
Z1 Line filter
K1 Main contactor (option)
X200 Connections for 24 V voltage supply
X1 Control inputs and outputs
X2 Connections of STO function
X101 Connection for additional DC link capacitance, e. g. BM5-CAP
