7.15.2 Front side of active mains rectifier BM51XX
X1: Service interface
NOTE!
Only the service cable BM5-K-USB-XXX is
allowed to be used for the service interface
X1, refer to ZService interface– on page
205.
X2 Digital inputs/outputs *)
1:see Zpage 174–
2 to 3: Ready for pulse-enable (SELV/PELV)
4 to 6: Digital output (SELV/PELV)
7: Ready-to-operate for PLC
8: see Zpage 174–
9 to 10: Ready for main contactor on 
(SELV/PELV)
11: +24V (SELV/PELV)
12: M24V (SELV/PELV)
13: Fast digital input 1 (SELV/PELV)
14: Fast digital input 2 (SELV/PELV)
15 to 17: Digital input (SELV/PELV)
18: Digital input 6/ quick discharge
19: Digital input 7/ reset errors
20: Digital input 8/ pulse enable
111
10 20

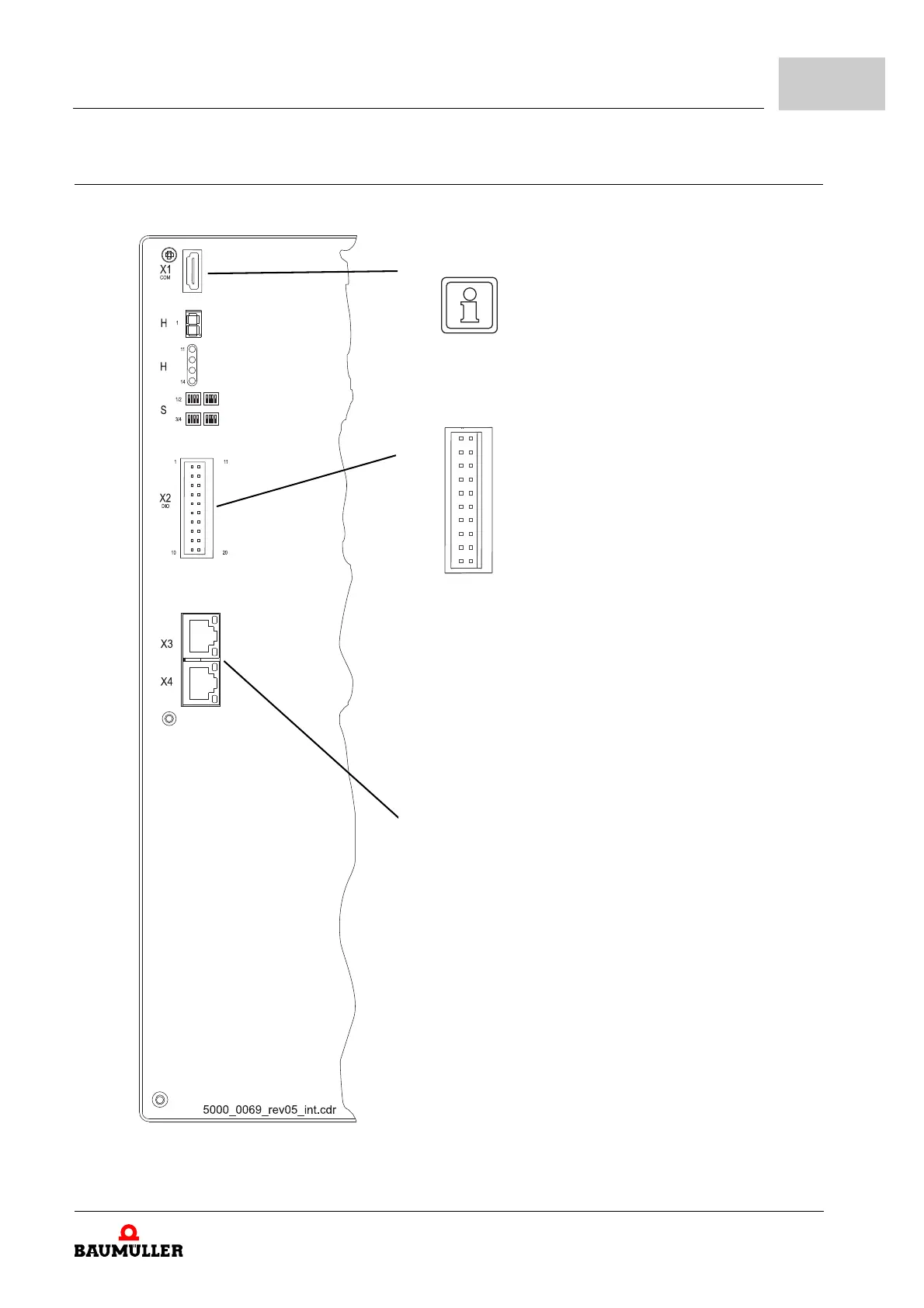

Figure 85: Connections controller part BM51XX
