Dimensions
Instruction handbook bmaXX 5000
Document No.: 5.09021.19 Baumüller Nürnberg GmbH
32
of 346
3.1

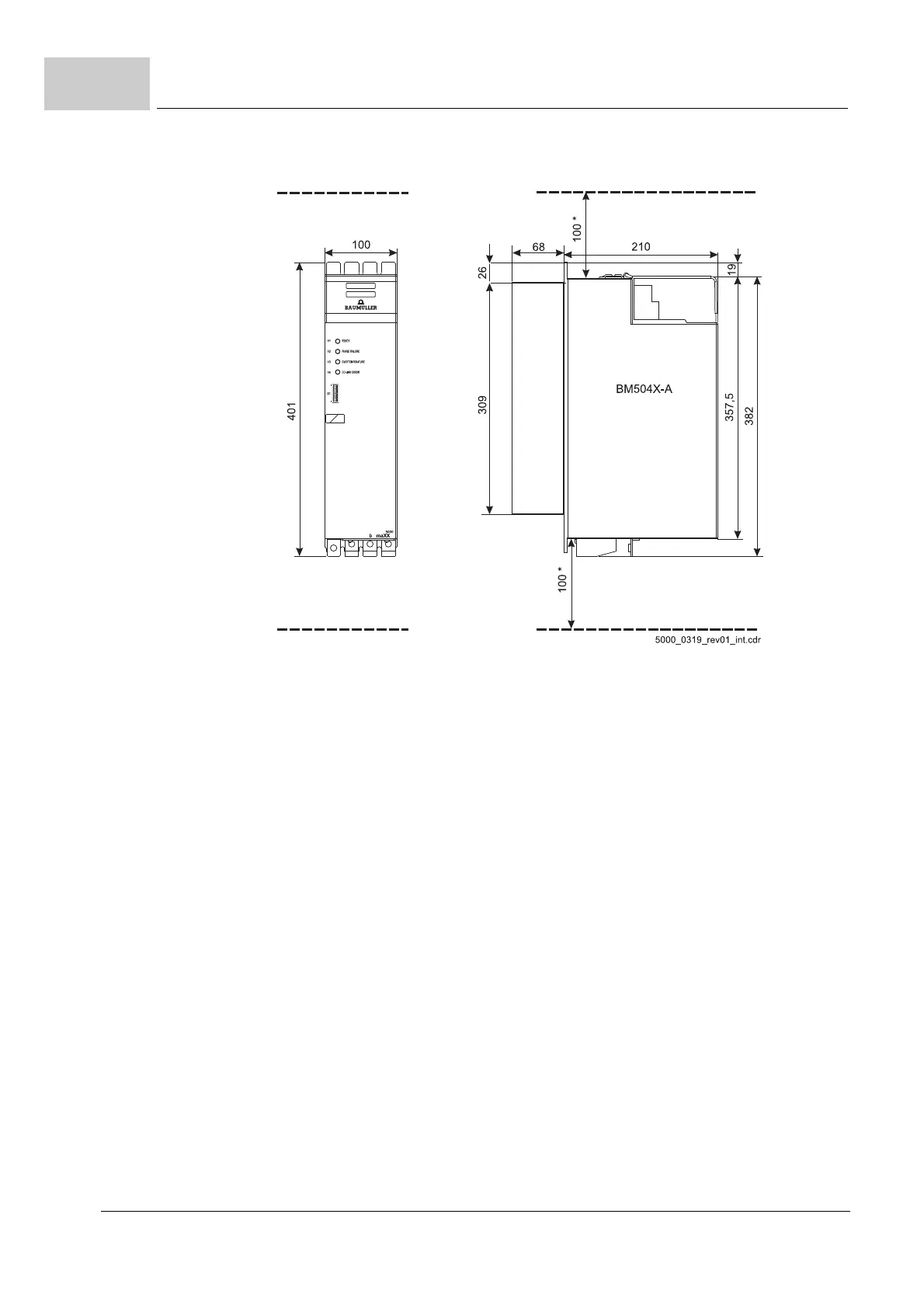

Figure 6: BM504X-A dimensions
*: Observe minimum clearance.
Please follow the notes for mounting and
ZCooling– on page 58.
