Baumuller b maXX 5000 User Manual

Risk assessment according EU Directive
Instruction handbook b maXX 5000
Document No.: 5.09021.16 Baumüller Nürnberg GmbH
18
of 328
2.4
Mounting Unprotected hands can be injured at the sharp edges of the device.
m We
ar safety gloves!
Unprotected eyes can be injured by thrown up metal particles c
aused by drilling or making
cut-outs.
m Wear safety glasses!
Short-circuit in
powe
r cables
In case of a short-circuit high current flows. This current induces a magnetic field in cable
loops. The magnetic field can cause failures of the device.
To avoid additional damage in case of a sh
ort-circuit in power cables,
n The co
nnection between power supply and device or between device and motor
must be laid without loop.
Device
Motor cable or
Device
power connection
Motor cable or
power connection

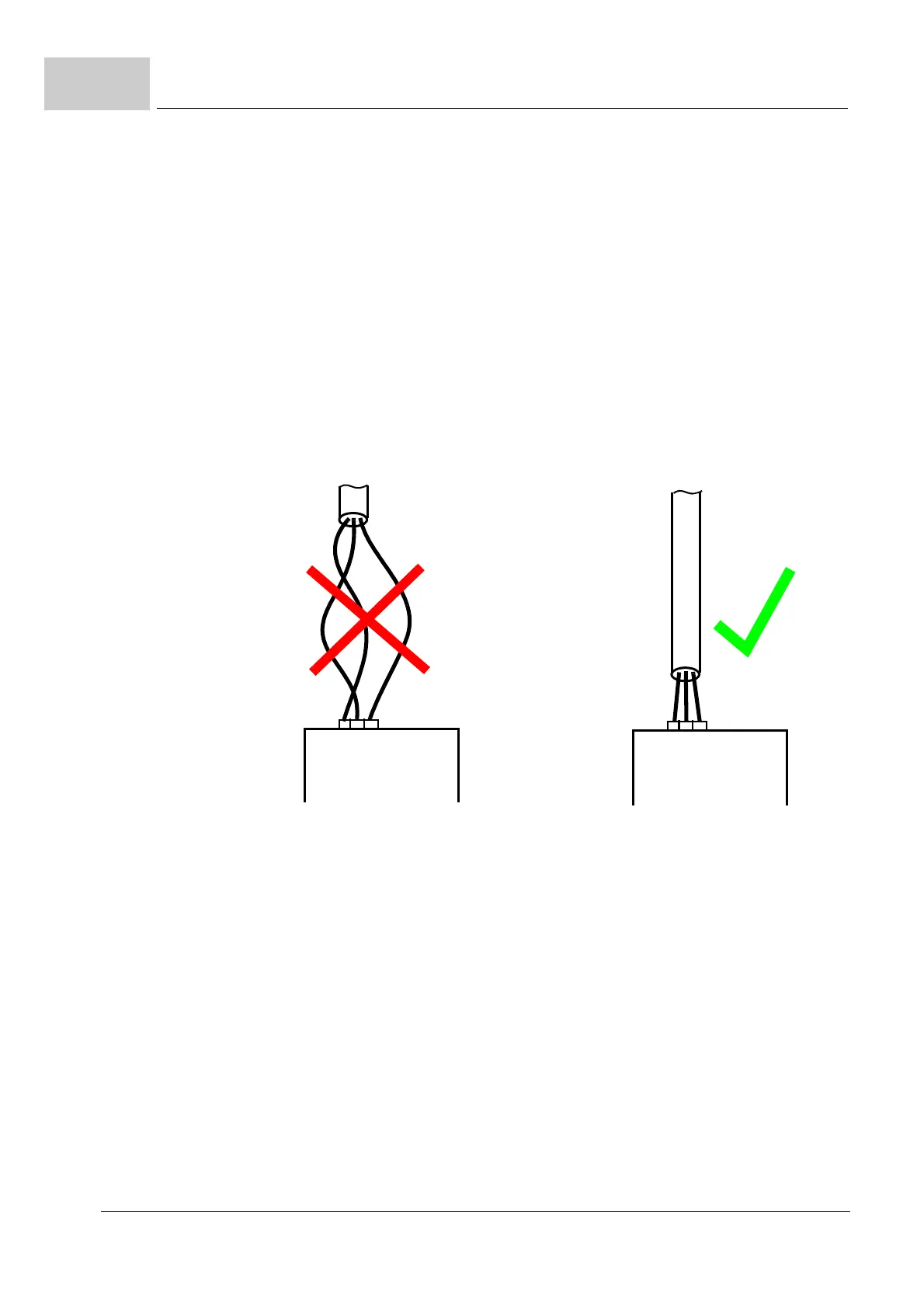

Figure 1: Wiring of the power cables
Installation If a shielded cable is connected unshielded and this causes failure of the device/danger
to persons, the system manufacturer is responsible for.
Brake resistor
conn
ection
The dissipation of the heat loss of the external brake resistor must be ensured.
Communication
errors
Ensure that a failure of the device w
ill cause no danger to persons.
The safety notes of all further chapters of this documentation need to be carefully ob-
served!
