Baumuller b maXX 5000 User Manual

Accessories and spare parts
Instruction handbook b maXX 5000
Document No.: 5.09021.16
255
of 328
11
11.1.9.3 Connecting cable for encoder with EnDat
®
or SSI
The connecting cable is available as accessory part from Baumüller Nürnberg GmbH.
Follow the instructions below if a self-ma
de cable is to be used:
1 Utilize the following
materials:
m Cable
: Li9YC3x2x0.25-Li9Y3x2x0,25-Li9Y C11Y 1x2x0.34GN. Two cable pairs are
not needed and also not connected.
m High-
density D-sub connector: 26-pin, male
m Roun
d connector: 17-pin, female (e.g. from Interconnectron)
2 Fu
lly adjoin the cable shield with the housing of the round connector and with the
shielding of the D-sub connector.

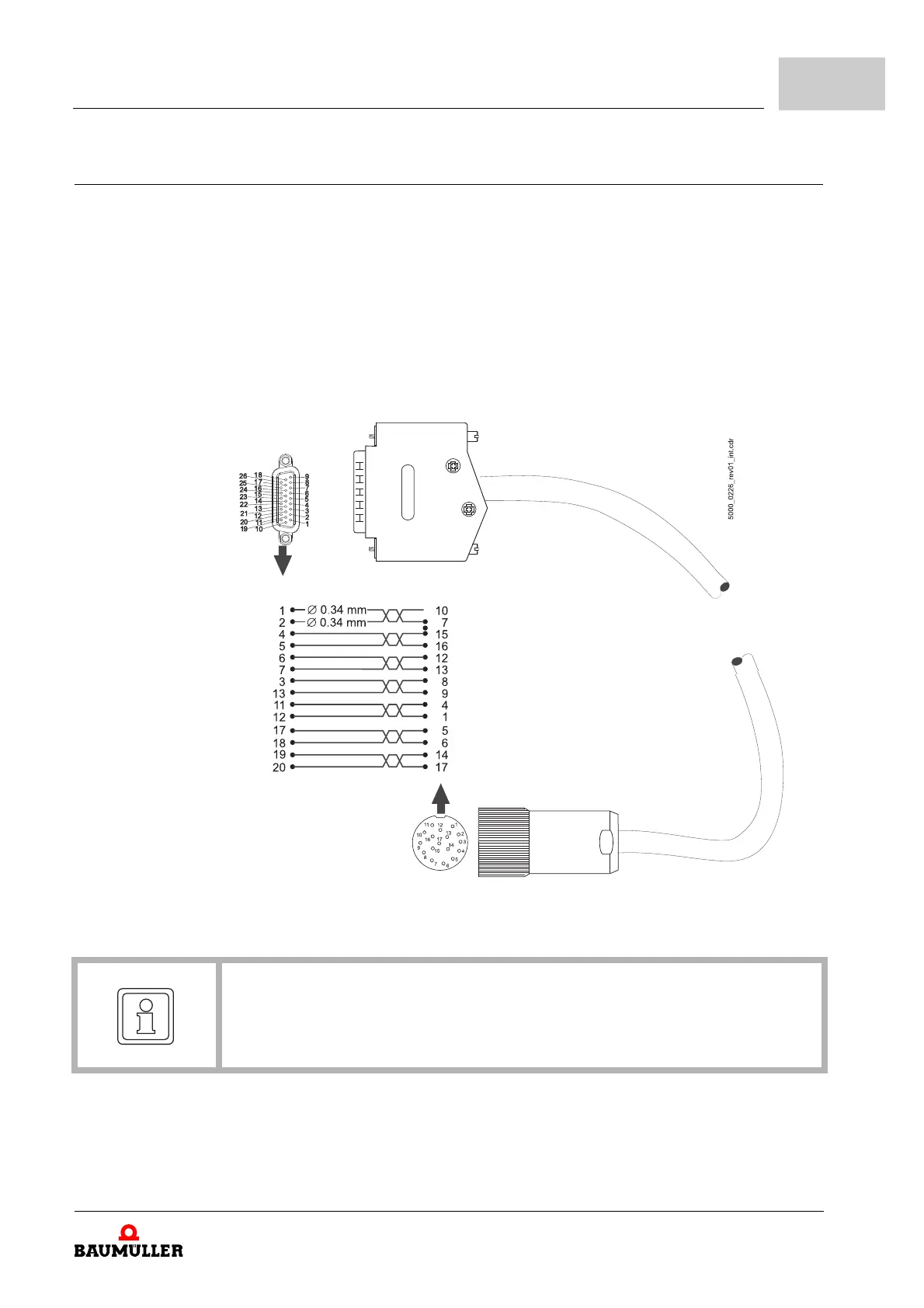

Figure 110: Connecting cable for encoder with EnDat
®
or SSI
NOTE
The connecting cable must be made according to the figure shown above! 
If there is a different pin assignment, the cable
is not functionally operable and could
lead to defects, both in the encoder module and the encoder!
